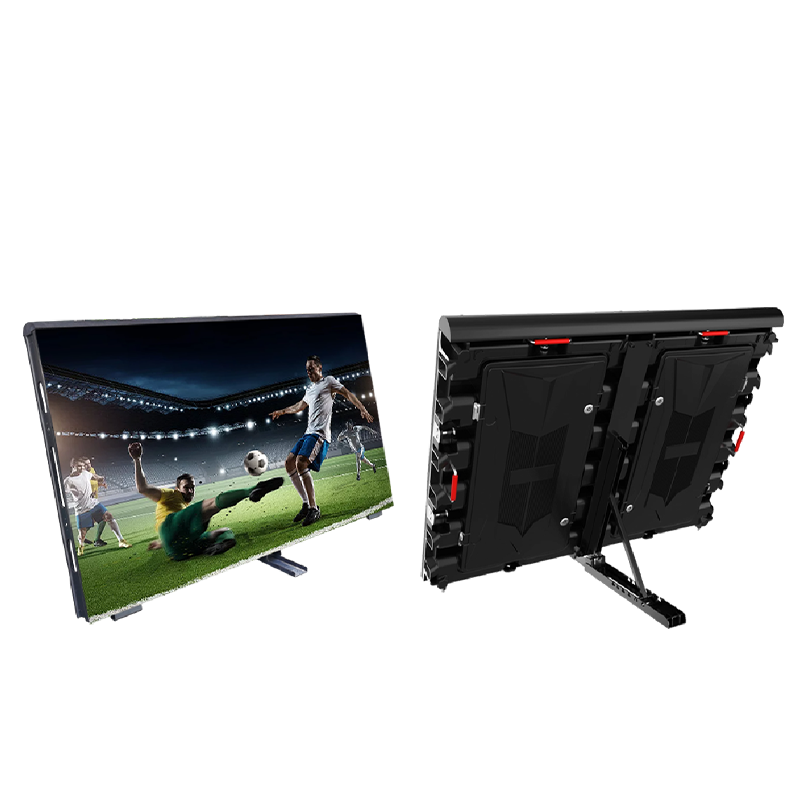

PM Series

Indoor and Outdoor Stadium Sports Perimeter

● Various Size Optional
● Soft Top Cover & Soft Mask
● Adjustable Bracket 30°~90°
● High Refresh 3840Hz ~ 7680Hz

Product Features

Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…

Front / Back Service

High Refresh, High Grey Scale,Stable Performance

IP65 Protection

Remote Control

Ultra Light and Thin

Ultra Wide Viewing Angle

Cabinet Dimension Ratio

Cable Free Connection

Product Introduction and Applications

PM series is an energy saving products with soft headgear on top and mask on surface for all kinds of indoor and outdoor stadium activities, perfectly applied for soccer field, basketball court, hockey field, etc. Solid, compact, strong cabinet design for all weather protection and prevent for any external attacks.

Ceiling Installation

Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.

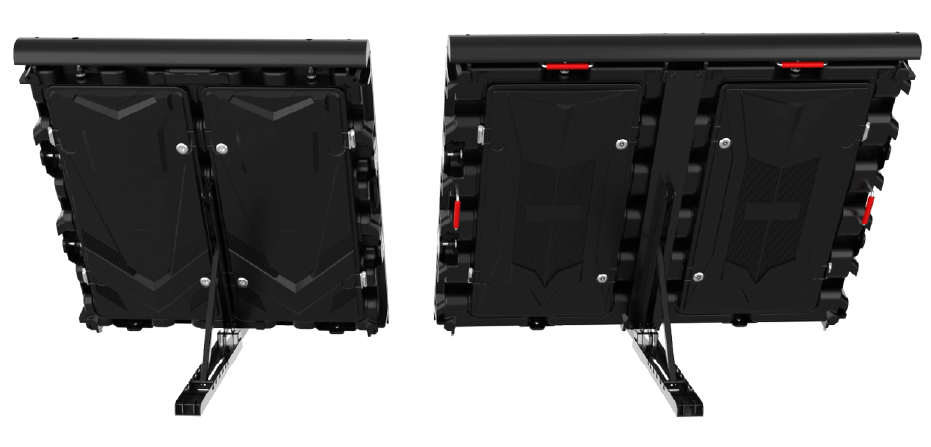

Various Size Optional

You can choose 960×960mm, 1280×960mm to meet customers needs perfectly.

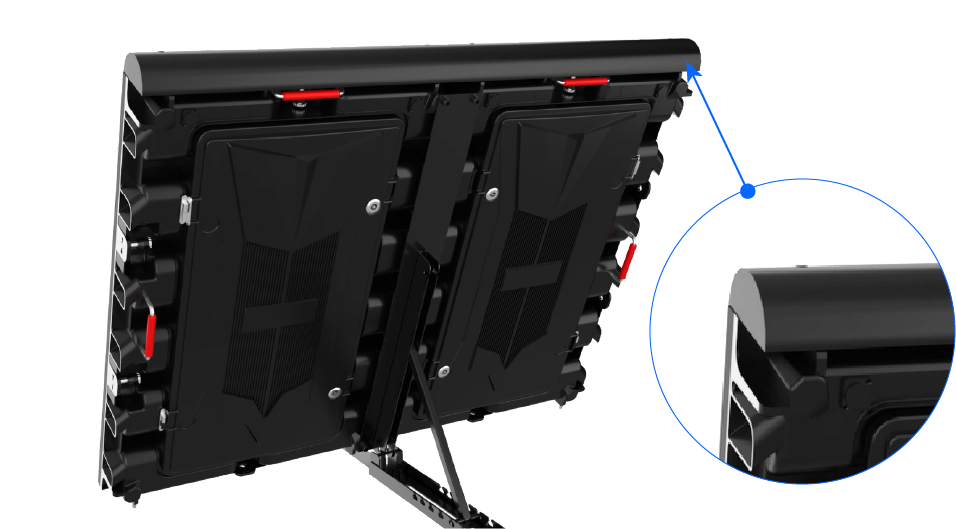

Protective soft headgear with multiple handles

Soft headgear plays a huge role in protection for ball, player and screen. Even if hitting will not damage the items. Multiple handles make easier installation and move.

View Angle

140°no blind angle viewing, giving the audience a better and immersive view effect. It can be applied with a variety of sports activities and games, such as football fields, basketball courts, hockey fields and so on. Also for national and international competitions.

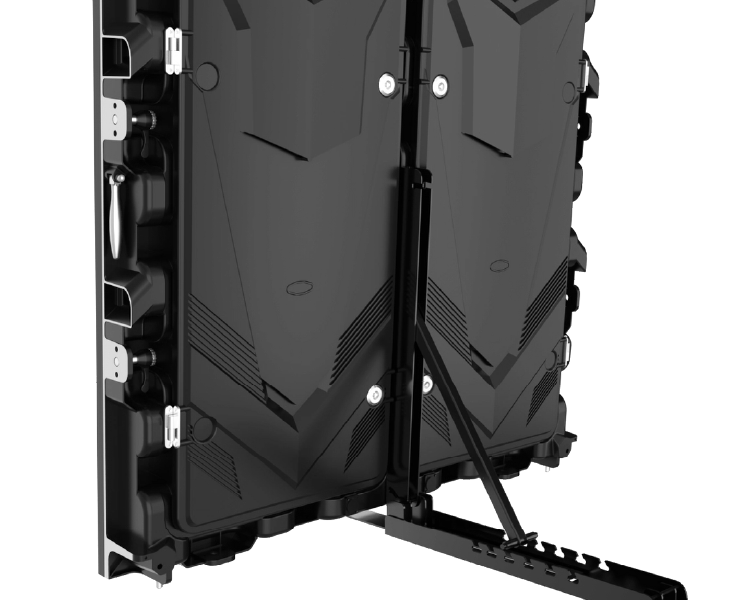

Adjustable Bracket

The rear support frame is adjustable, not only to support the screen, but also to give the front and rear audience a better viewing experience. Adjust the angle 65°to 90°according to demands.

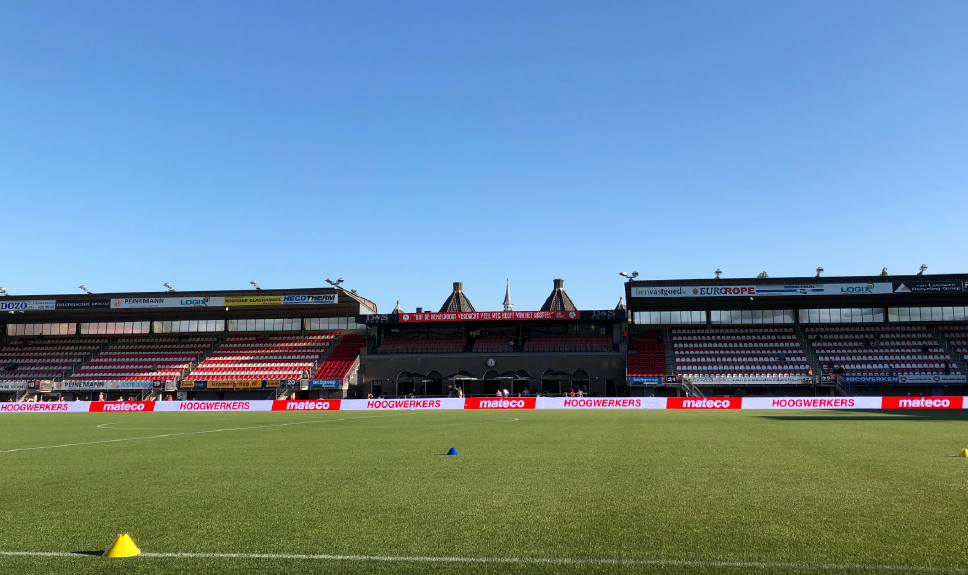

No images compressing

By quick lock besides, multiple cabinets connected together seamlessly and will not compress images.

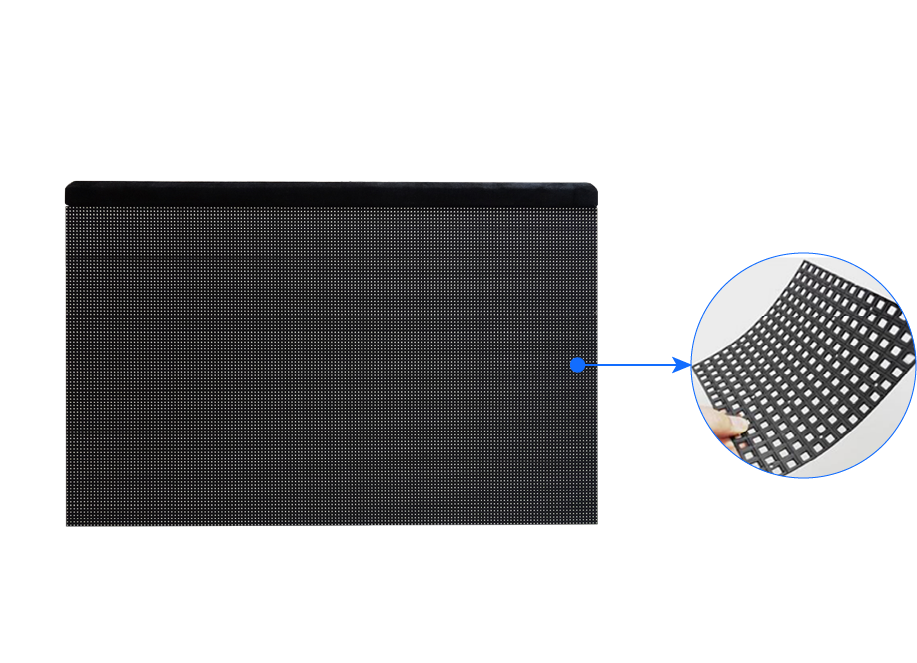

3 in 1 SMD LED configuration with soft mask on surface

For fast heat dissipation, brighter colors and higher image smoothness. Besides, there is a soft mask on the front surface to prevent impact and protect the LED lamp. Not only avoiding damage but also extending lifespan.

Professional Software PM Player

LEDFUL PM Player and software makes it easy to control your screen. Managing your media and show linear content on your perimeter LED display, which is friendly for advertising applications.

Systems also meet up the following criteria for quick changeable modules: at least 2 spare cabinets, closed corner set-up and external controller software overlay possible with data redundancy.

Backup for Recycle

The screen can be connected by the camera to present the content of the game in real time. When the camera is connected, the connected computer also synchronizes the game content and provides subsequent replays.

World-Class Project Show-1

LEDFUL PMR & AFL Tanzania

Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.

90 Degree Design

Beveled cabinet makes seamless right angle and 4 sided column LED screens.

Wall Mounted

LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.

Free Standing UPoster

UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.

Size:600x2025mm, weight: 31.4kg.

Specifications

Model IPM6 IPM10 OPM8 OPM10 OPM16
Pixel Pitch(mm) 6 10 8 10 16
Pixel Matrix Per Sqm 27,777 10,000 15,625 10,000 3,906
Pixel Configuration SMD3528 SMD3528 SMD3535 SMD3535 SMD3535
Brightness (nits) 2200 1800 6000 7500 8000
Scan 1/8 1/4 1/3 1/2 1/1
Module Dimension 192×192mm/0.63×0.63ft 320x160mm/1.05×0.52ft 320x160mm/1.05×0.52ft 320x160mm/1.05×0.52ft 256×256mm/0.84×0.84ft
Cabinet Dimension 960×960mm/3.15×3.15ft 1280×960mm/4.2×3.15ft 1280×960mm/4.2×3.15ft 960×960mm/3.15×3.15ft 1024×1024mm/3.36×3.36ft
Cabinet Material Iron Iron Iron Die Casting Aluminum Iron
Cabinet Weight 40KG/88sqm 44KG/sqm 49KG/sqm 33KG/sqm 46KG/sqm
Power Con. (W/sqm.) Max. 650W / Avg.100~200W Max. 650W / Avg.100~200W Max. 650W / Avg.100~200W Max. 650W / Avg.100~200W Max. 650W / Avg.100~200W
Service Access Front/Rear Front/Rear Rear Rear Rear
Refresh Rate (HZ) ≥2880 ≥2880 ≥1920 ≥1920 ≥1920
Grey Scale (bit) 14 14 16 16 16
Contrast Ratio 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Viewing Angle (H / V) 140° / 140° 140° / 140° 140° / 140° 140° / 140° 140° / 140°
IP Rate IP43 IP43 IP65 IP65 IP65
Operation Temperature ﹣20℃ ~ +60℃ ﹣20℃ ~ +60℃ ﹣20℃ ~ +60℃ ﹣20℃ ~ +60℃ ﹣20℃ ~ +60℃
Input Voltage (AC) AC110/240V, 50/60Hz AC110/240V, 50/60Hz AC110/240V, 50/60Hz AC110/240V, 50/60Hz AC110/240V, 50/60Hz
* Specifications and photos are subject to change without prior notice.
