● Easy Front Maintenance
● Stable Cable-Free Design
● Lightweight Aluminum Structure
● Fine Pitch P1.9–P3.9 (Clear HD)
● Up to 40% Energy Saving (Common Cathode)
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Anti-Shedding Design
Cable Free Design
Die Casting Aluminum Module
Full Front Service
Light and Thin
User Friendly
Front / Rear Service
The FS PRO series common cathode LED display is designed for high-performance outdoor advertising applications, delivering excellent brightness, durability, and energy efficiency. Featuring common cathode technology, this energy saving LED display reduces power consumption while maintaining stable performance in demanding outdoor environments. With an IP66 waterproof rating, seamless splicing design, and a fully sealed aluminum cabinet, it ensures reliable operation, easy installation, and long-term durability. Ideal for outdoor advertising, retail signage, stadium displays, and 3D LED screen applications.
Die-casting aluminum cabinet has good heat dissipation, which is good for ceiling installation and improving lifespan of screen , Brings you more amazing visual experience.
The FS PRO series features a high-precision 250×250 mm die-cast aluminum module and cabinet, delivering excellent structural strength and heat dissipation. With superior thermal conductivity, heat is quickly transferred from the internal components to the outside, eliminating the need for additional cooling fans. This design ensures reliable operation even in harsh outdoor environments.

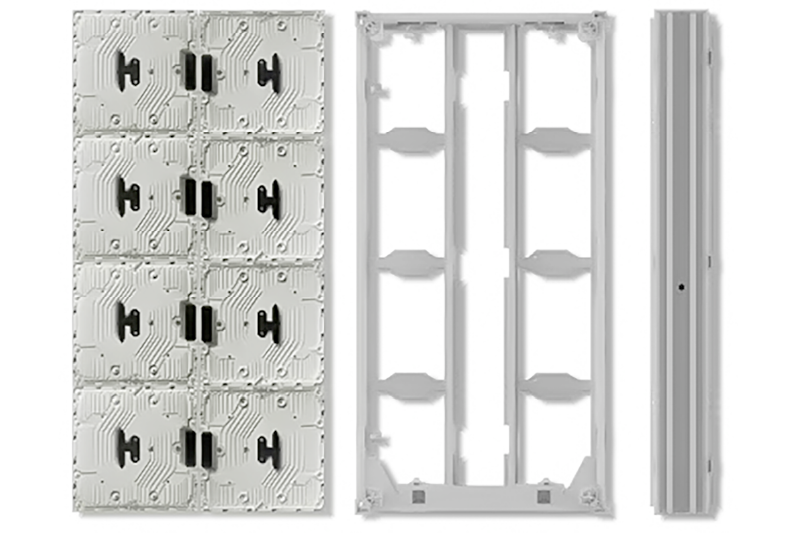

The FS PRO series outdoor LED display features a cable-free design combined with a hidden cable box, ensuring a tidy and elegant display while protecting cables from damage. High-density silicone cables provide excellent temperature resistance and insulation, reducing maintenance needs and ensuring reliable operation.

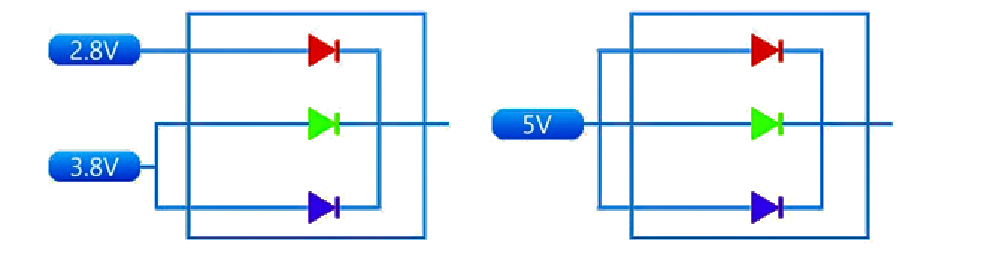

The FS PRO series common cathode LED display reduces heat generation and electricity consumption, delivering up to 40% energy savings. This energy saving LED display helps lower operating costs and supports environmentally friendly outdoor display projects.

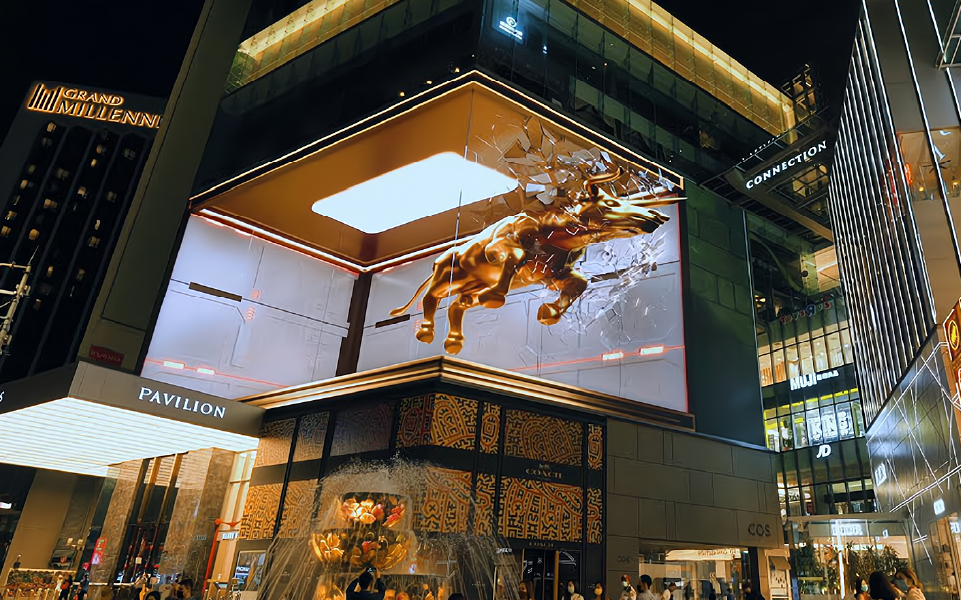

The FS PRO series supports both right-angle and arc splicing, enabling seamless integration and creative visual effects. This design is perfect for 3D LED screen projects.

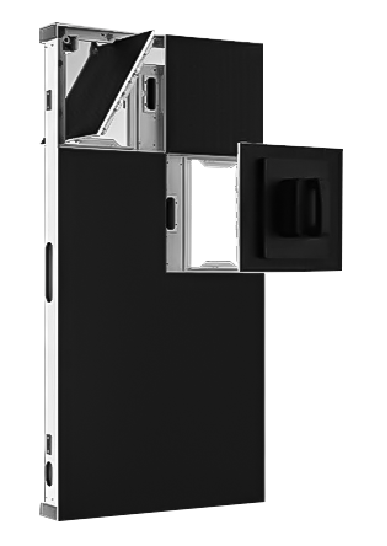

The FS PRO series offers a dual front and rear service design, allowing easy access from both sides. This reduces installation time and lowers maintenance costs, making your outdoor LED display more convenient and cost-effective.
The FS PRO series outdoor advertising LED display offers a high refresh rate and high greyscale, delivering delicate, flicker-free images with no scan lines. This ensures superior visual effects for your projects.
LEDFUL PMR & AFL Tanzania
Tanzania National Stadium 250m Outdoor Perimeter LED Screen for First AFL in Africa.
The FS PRO series features an ultra-wide viewing angle of up to 140° both vertically and horizontally, providing clear and natural images from all directions. This ensures your outdoor HD LED display delivers consistent visuals to a wider audience.
The FS PRO series outdoor HD LED display offers superior protection with an IP66 dustproof and waterproof rating, surpassing standard IP65 outside LED screens. The high IP66 rating ensures stable operation in extreme weather conditions, including high temperature, low temperature, and high humidity, making it ideal for outdoor advertising LED display projects.

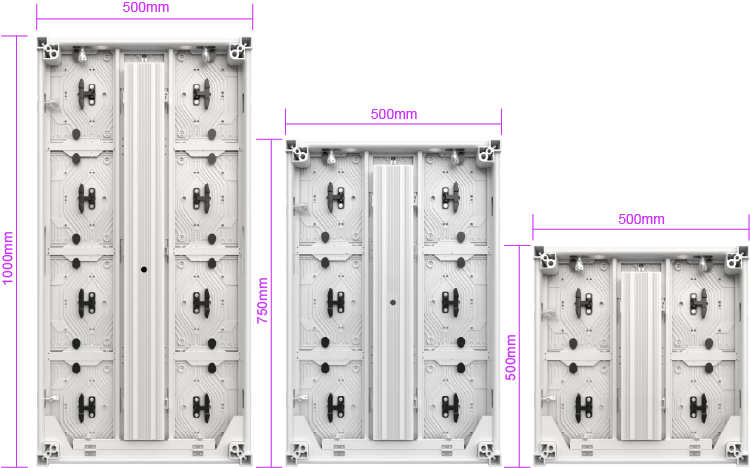

The FS PRO series offers multiple panel size options, allowing you to customize the screen size to better fit your project requirements. This ensures flexibility for various outdoor LED display applications.
Impressive excellent viewing experience. High quality LED display gives more possibility.
Beveled cabinet makes seamless right angle and 4 sided column LED screens.
LED screen with brackets installation depth 42.5mm, without brackets installation depth 27.5mm, super thin brings perfect appearance.
UPoster plug and play, free standing, movable, seamless cascade, all-in-one LED display.
Size:600x2025mm, weight: 31.4kg.
| Model | FS1.9-PRO | FS2.6-PRO | FS2.9-PRO | FS3.9-PRO |
| Pixel Pitch(mm) | 1.95 | 2.6 | 2.97 | 3.91 |
| Pixel Matrix Per Sqm. | 262,144 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1415 | SMD1921 |
| Brightness (nits) | ≥6000 | |||
| Scan | 1/32 | 1/24 | 1/21 | 1/8 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | 500x500mm / 500x750mm/ 500x1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | 8.5KG / 12.5KG / 16KG | |||
| Power Con. (W/Sqm.) | Max. 550W / Avg.185W | |||
| Service Access | Front & Rear Access | |||
| Refresh Rate (HZ) | ≥3840 | |||
| Grey Scale (bit) | 16bit | |||
| Contrast Ratio | 5000:1 | |||
| Viewing Angle (H/V) | 160° / 160° | |||
| IP Rate | IP66 | |||
| Operation Temperature | ﹣20℃ ~ +60℃ | |||
| Operation Humidity | 10% ~ 98% | |||
| Input Voltage (AC) | AC100-240V, 50/60Hz | |||
| * Specifications and photos are subject to change without prior notice. | ||||
| Model | XO2.6/TO2.6 | XO2.9/TO2.9 | XO3.9/TO3.9 | XO4.8/TO4.8 |
| Pixel Pitch(mm) | 2.6 | 2.97 | 3.91 | 4.81 |
| Pixel Matrix Per Sqm. | 147,456 | 112,896 | 65,536 | 43,264 |
| Pixel Configuration | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Brightness (nits) | 4000 | 4000 | 5000 | 5000 |
| Scan | 1/32 | 1/28 | 1/16 | 1/13 |
| Module Dimension | 250x250mm | |||
| Cabinet Dimension | X—500x500mm T—500X1000mm | |||
| Cabinet Material | Die Casting Aluminum | |||
| Cabinet Weight | X—8.5kg T—14KG | |||
| Power Con. (W/sqm.) | Max.800W / Avg.200~300W | |||
| Service Access | Rear Service (Front Service Optional) | |||
| Refresh Rate(HZ) | ≥3840 | |||
| Grey Scale (bit) | 16 | |||
| Viewing Angle(H/V) | 160°/160° | |||
| IP Rate | IP65 | |||
| Operation Temperature | -20℃~+60℃ | |||
| Operation Humidity | 10%～90% | |||
| Input Voltage(AC) | 110V/240V | |||
Yes. The FS PRO series uses a fully sealed IP66 dustproof and waterproof design that surpasses standard IP65 protection. This ensures the display continues stable operation in extreme conditions—heavy rain, high heat, subzero cold, and high humidity—making it ideal for all kinds of outdoor LED display projects.
The FS PRO series uses common cathode technology to improve power efficiency. This reduces heat and minimizes wasted energy, cutting power consumption by up to 40% compared with traditional designs. It’s a cost‑effective energy saving LED display solution for long‑term commercial use.
No. The FS PRO series uses high‑thermal‑conductivity aluminum modules and a fanless design, allowing heat to dissipate naturally and efficiently. This ensures the outdoor HD LED display remains within safe operating temperatures even under direct sunlight, reducing hardware complexity and lowering ongoing operating costs.
Yes. The FS PRO series features a corner cabinet design that supports right‑angle and arc splicing, allowing panels to be aligned precisely with minimal visible gaps. This ensures seamless visuals for large-scale outdoor LED displays and enables creative 3D visual effects when panels are arranged in custom layouts.
Yes. The FS PRO series outdoor HD LED display provides a high refresh rate and high greyscale, delivering flicker-free, smooth images with no scan lines. Even dynamic video content appears crisp and clear, making it perfect for HD outdoor advertising where image quality is critical.
