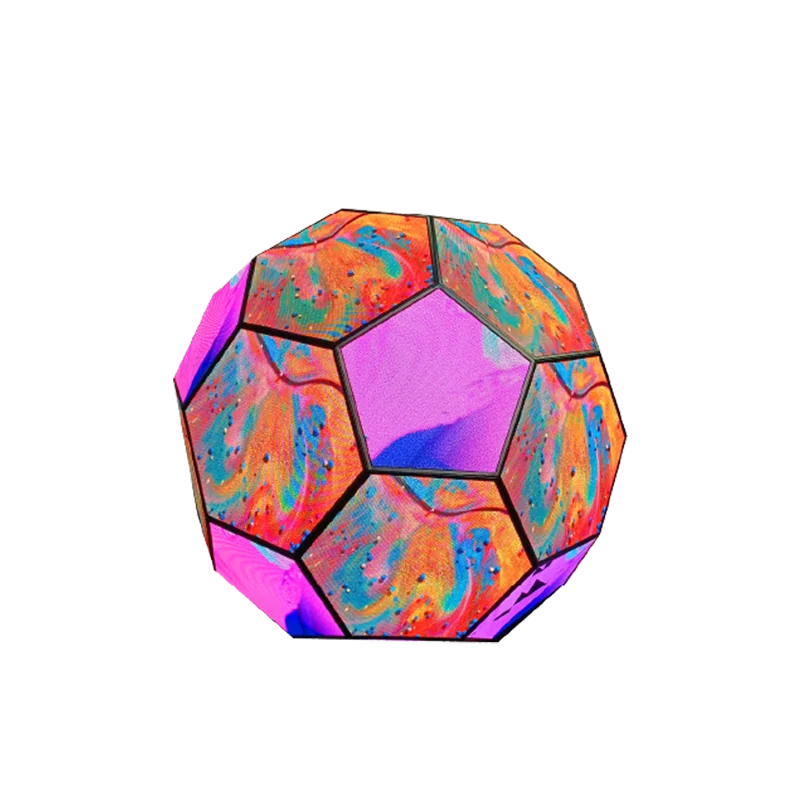

Flexible and Creative LED Display

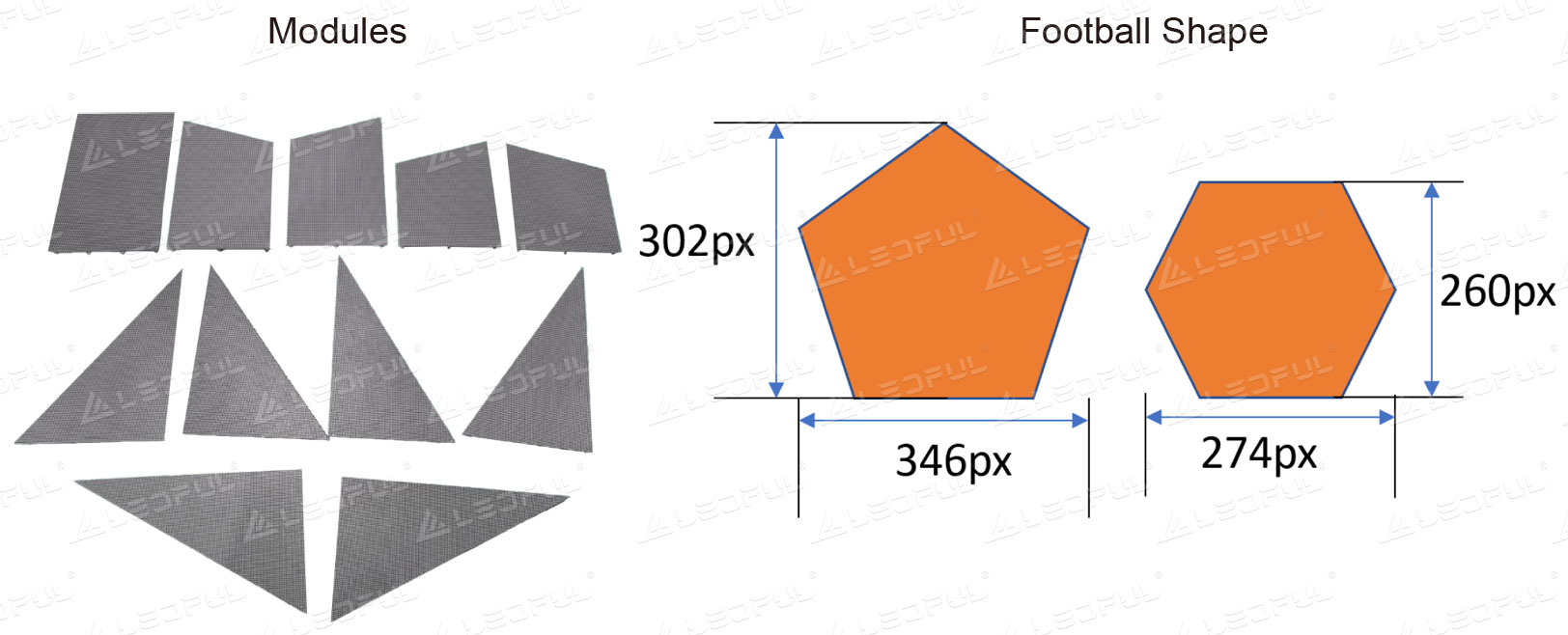

● Real Football Shape & Mature Tech

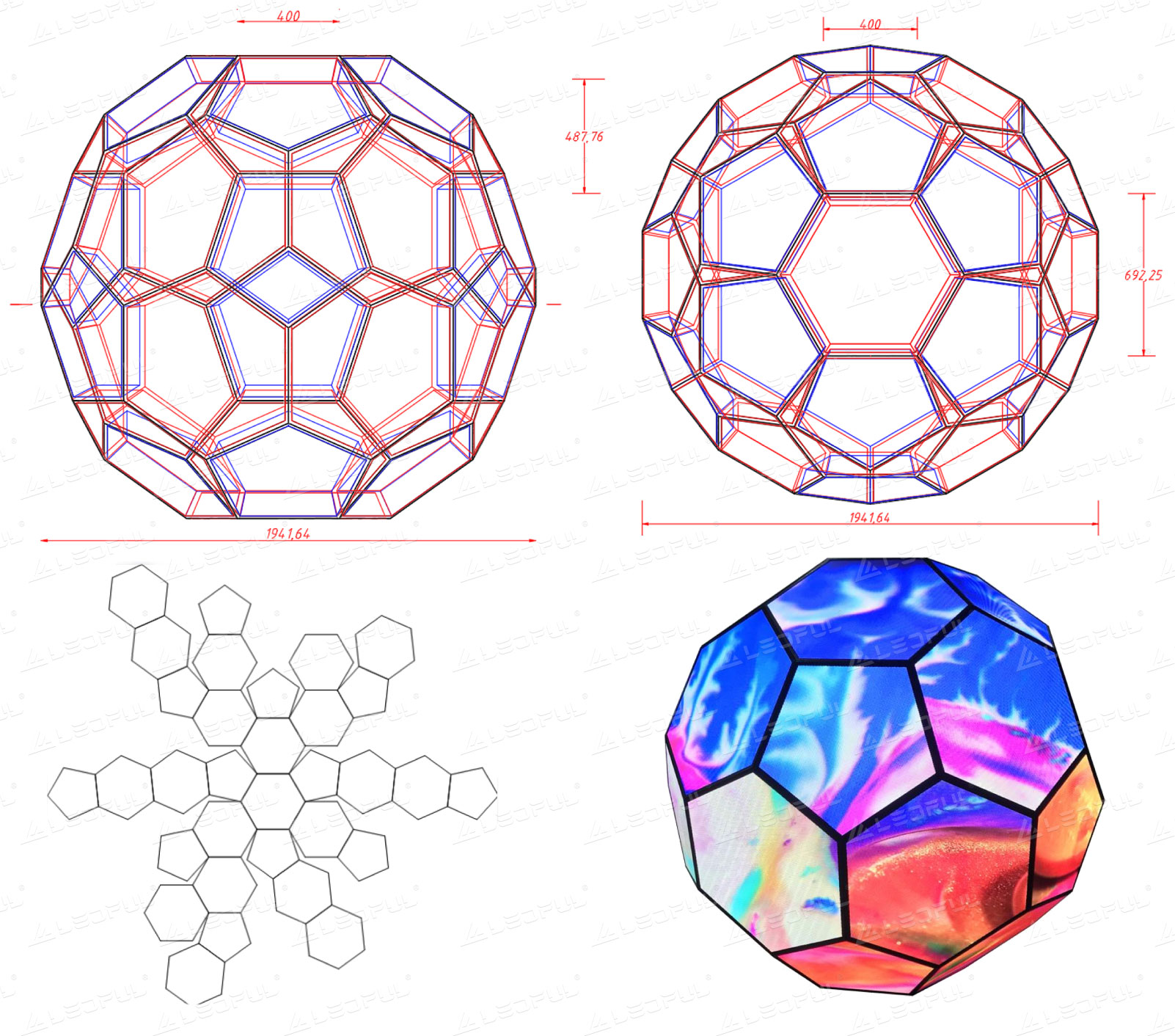

● Customized Shape and Size
● Stand on Floor & Hanging Optional
Lorem ipsum dolor sit amet. Aut iste ipsum a ipsum mollitia ut similique aperiam quo sequi voluptatem non assumenda expedita. Qui inventore neque cum ipsam blanditiis sed rerum recusandae…
Allow Play Different Video Sources Individually or Jointly
Attractive Appearance
Customized Six-Sided Panoramic Design
Excellent Color Uniformity
High Contrast & High Fidelity
Seamless Connection
Simple & Easy Installation

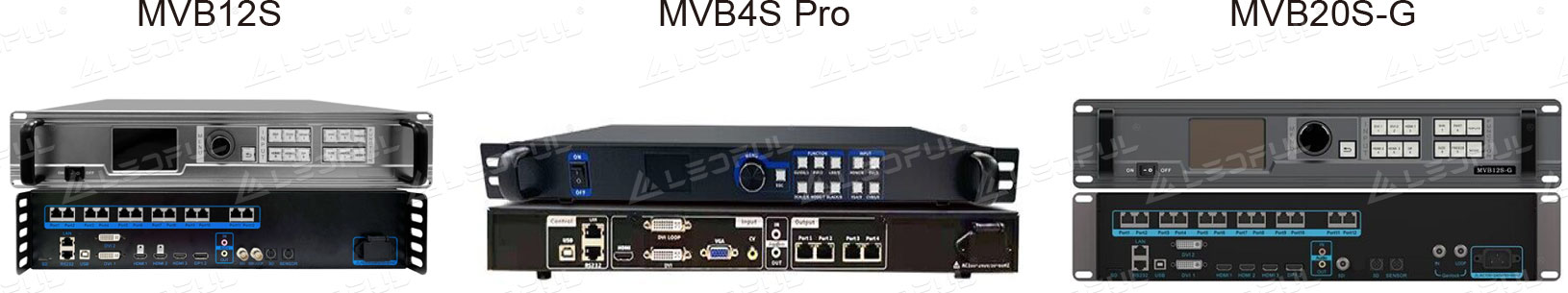

Synchronous and Asynchronous Control
Various Installation: Standing, Hanging,Mosaic and Embedded
Vivid Visual Effect
Self Illumination & High Brightness
Simple & Easy Installation
| Model | Indoor P2-FOOTBALL | Outdoor P4-FOOTBALL | Indoor P5-FOOTBALL |
| Pixel Pitch(mm) | 2 | 4 | 5 |
| Pixel Configuration | SMD1515 | SMD1921 | SMD1921 |
| Pixel Density(dots/m2) | 250,000 | 62,500 | 40,000 |
| Diameter (m) | 2 | Customzied | 2.7 |
| Best Viewing Distance | 2-100m | 4-100m | 4-100m |
| Max. Consumption (KW) | 2.1 | 4.5 | 2.1 |
| Scan | 1/40 | 1/16 | 1/16 |
| Brightness (nits) | 800 | 5000 | 900 |
| Service Access | Front | Front | Front |
| Cabinet Material | Iron | Iron | Iron |
| Viewing Angle (H/V) | 160 / 140 | 120 / 120 | 160 / 140 |
| Refresh Rate (HZ) | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale (Steps) | 8192 | 16384 | 8192 |
| IP Rate | IP31 | IP65 | IP31 |
| Operation Temperature | -20° ~ 70° | -20° ~ 60° | -20° ~ 70° |
| Input Voltage (AC) | 100V or 240V | 100V or 240V | 100V or 240V |
| * Specifications and photos are subject to change without prior notice. | |||
