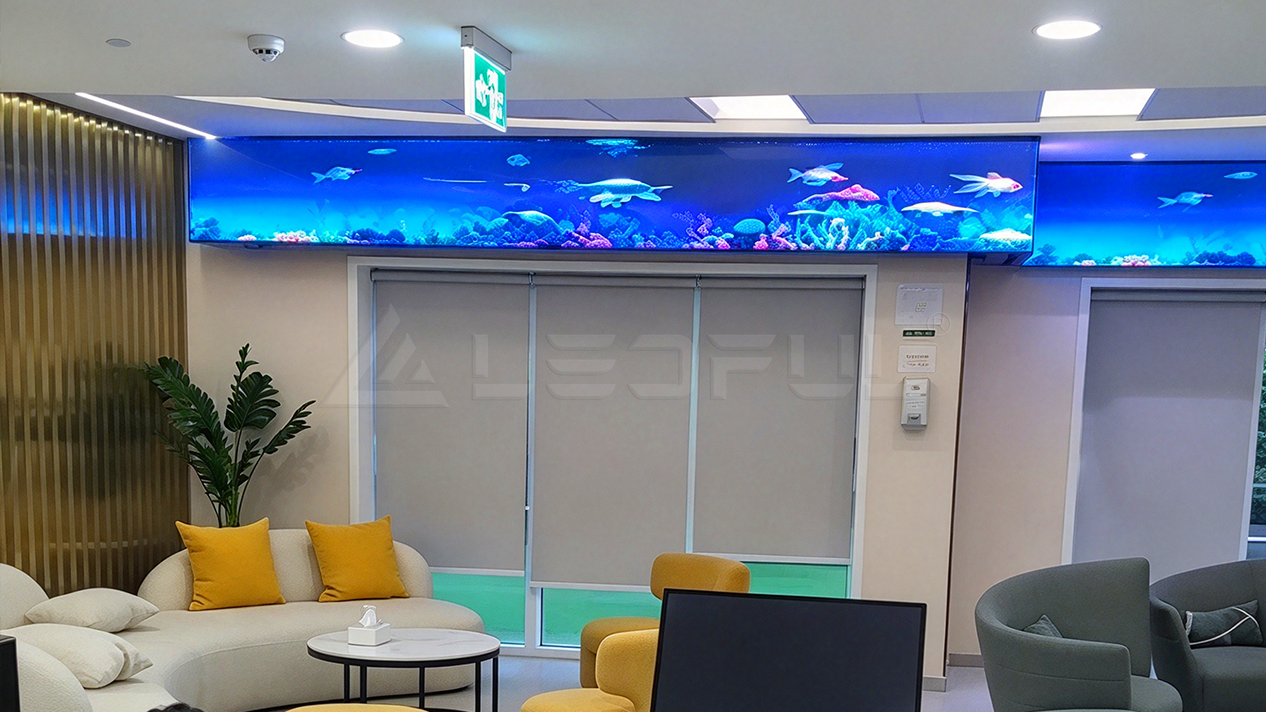

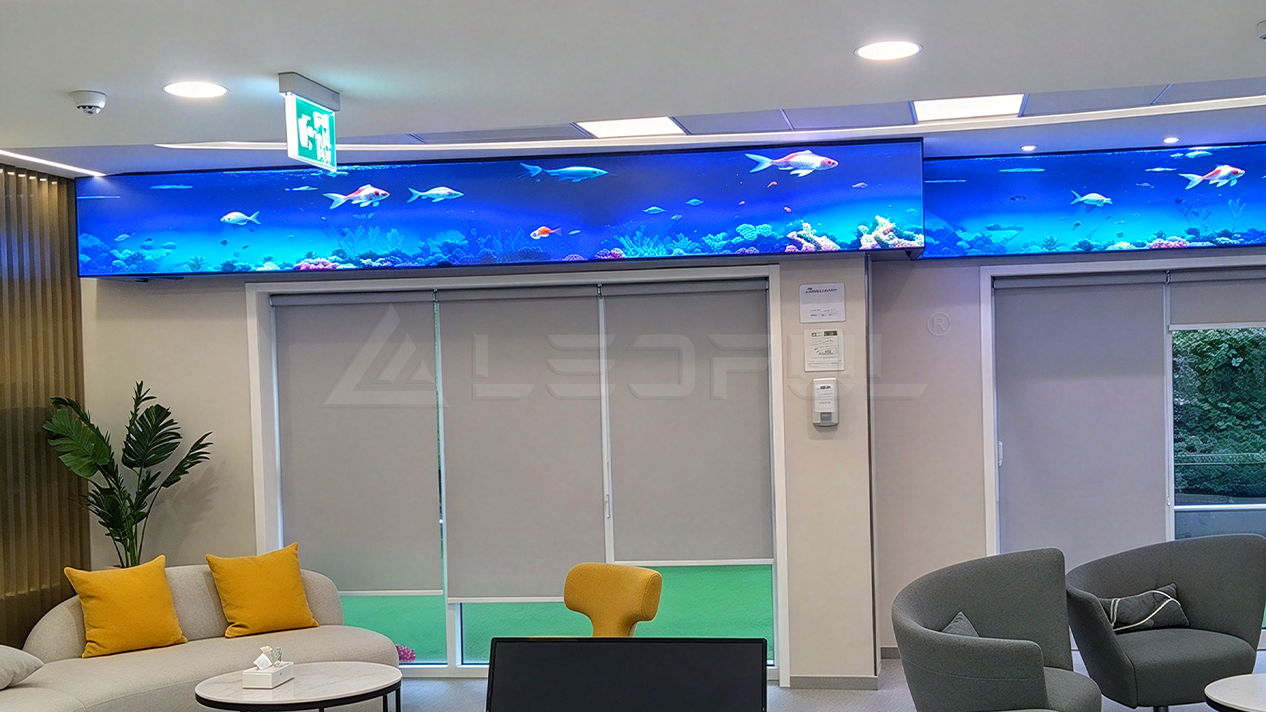

Built in compliance with local Middle-East interior engineering standards, the LED wall balances superior visual performance, structural reliability and interior aesthetics, perfectly suiting daily operation within high-end office and reception environments. Custom dimension: (4.48+0.96+3.52)×0.48M with 90-degree seamless right-angle splicing, frameless corner design for flush wall-mounted installation and consistent visual presentation.

Core Specifications & Design Highlights

1. Hardware Performance

This indoor LED display uses premium BM2.5 LED modules with 2.5 mm pixel pitch. High pixel density delivers fine, grain-free images for close-distance viewing, an essential feature for luxury interior spaces in Dubai. High-grade LED lamp beads ensure rich color saturation and uniform color temperature. The system supports multiple playback sources: HD video playback, graphic rotation, corporate logo display and real-time data update to meet diverse commercial display requirements.

2. Structural & Dimension Design

The right-angle screen is constructed in segmented sections: 4.48 m main display area + 0.96 m transition section + 3.52 m auxiliary display area, with a fixed height of 0.48 m. The segmented layout precisely matches on-site wall dimensions. 90-degree seamless right-angle splicing technology removes visual breaks at corners. Instead of separated panels with visible borders, the whole screen forms one continuous visual surface with straight, clean corner lines. Total combined length: 8.96 m × 0.48 m height, well-proportioned for wall installation without occupying usable interior space.

3. Environmental Adaptation for Dubai Indoor Conditions

Dubai indoor spaces feature stable air-conditioned temperature and dry ambient conditions. The BM2.5 LED screen is engineered with dust-proof, anti-static and low-power-consuming properties. Well-sealed modules prevent dust accumulation, color shift and dead pixels over long-term operation. Equipped with quiet thermal dissipation, the display runs with low noise and will not disturb office or reception activities. It meets local high-end interior requirements for low noise, energy efficiency and long-term reliability.

Construction Challenges & Solutions

1. High-precision Right-angle Splicing

Challenge: 90-degree corner assembly demands extremely tight tolerance. Minor misalignment will cause broken images and distorted lines. Since the venue was fully finished, there was almost no margin for construction errors.

Solution: Complete on-site survey of wall verticality and flatness before production. Custom galvanized steel support frames and pre-fabricated right-angle brackets guarantee accurate 90-degree geometry. Millimeter-level calibration is performed panel by panel during installation. Splicing gap at right-angle corners is controlled below 0.1 mm to achieve seamless continuous visuals.

2. Finished-site Protection for Refined Interiors

Challenge: The project site was a completed luxury fit-out. Construction risks included surface scratches, collision damage and dust contamination to existing finishes.
