D Series Outdoor | DO 3.9 | DO 4.8 | DO 5.9 |
Pixel Pitch(mm) | 3.91mm | 4.81mm | 5.95mm |
Pixel Matrix Per Sq.m | 65536 | 43264 | 28224 |
Pixel Configuration | SMD1921 | SMD2727/1921 | SMD2727 |
Brightness (nits) | ≥6500 | ≥5500 | ≥6500 |
Scan | 43108 | 43113 | 43107 |
Cabinet Resolution | 128×128 | 104×104 | 84×84 |
Power Con. (Max / Avg) | 880/ 280 w/sq.m | 800 / 240 w/sq.m | 720/ 240 w/sq.m |
Cabinet Weight | 7.85kg / 17.3Ib | 7.7kg / 16.98Ib | 7.2kg / 15.87Ib |
Refresh Rate (HZ) | 3840 | 3840 | 1920 |
Module Dimension | 250x250mm / 0.82x0.82feet | ||
Cabinet Dimension | 500x500x85mm / 1.64x1.64x0.28feet | ||
Cabinet Material | Die-casting Aluminum | ||

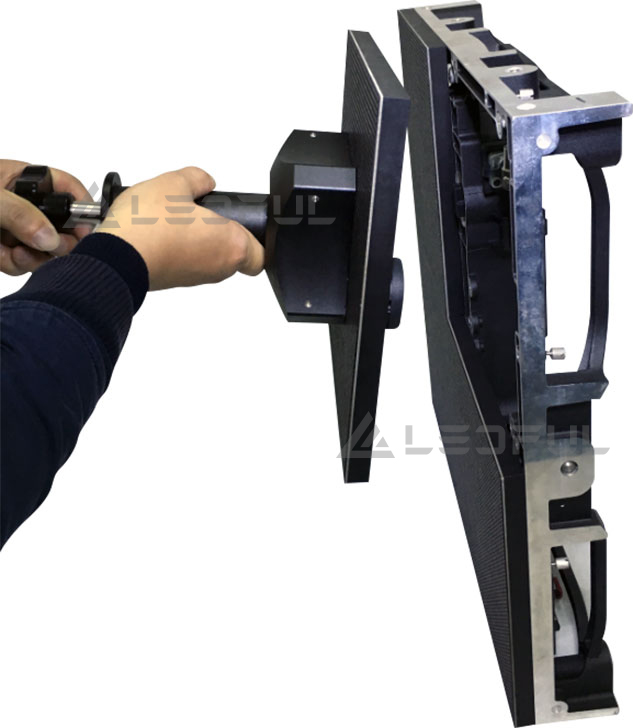

Service Access | Front / Rear | ||
Grey Scale (bit) | 14 | ||
Viewing Angle (H/V) | 140 / 140 | ||
IP Rate | IP65 | ||
Input Voltage (AC) | 110 / 240 |
D Series Indoor | DI 2.9 | DI 3.9 | DI 4.8 | DI 5.9 |
Pixel Pitch(mm) | 2.976mm | 3.91mm | 4.81mm | 4.81mm |
Pixel Matrix Per Sq.m | 112896 | 65536 | 43264 | 43264 |
Pixel Configuration | SMD1515 | SMD2121 | SMD2121 | SMD2121 |
Scan | 43128 | 1/16 | 1/13 | 1/13 |
Cabinet Resolution | 168×168 | 128×128 | 104×104 | 104×104 |
Cabinet Weight | 8kg / 17.6Ib | 7.4kg/16.3Ib | 7.3kg/16.09b | 7.3kg/16.09b |
Power Con. (Max / Avg) | 640 / 200w/sq.m | 620 / 180w/sq.m | 600 / 170w/sq.m | 600 / 170w/sq.m |
Refresh Rate (HZ) | 3840 | 3840 | 1920 | 1920 |
Cabinet Material | Die-casting Aluminum | |||
Module Dimension | 250x250mm / 0.82x0.82feet | |||
Cabinet Dimension | 500x500x85mm / 1.64x1.64x0.28feet | |||
Service Access | Front / Rear | |||
Brightness (nits) | 1200 | |||
Grey Scale (bit) | 16 | |||
Viewing Angle (H/V) | 140 / 140 | |||
IP Rate | IP43 | |||
Input Voltage (AC) | 110 / 240 |
