V & H Series

New Rental LED Screen Solution

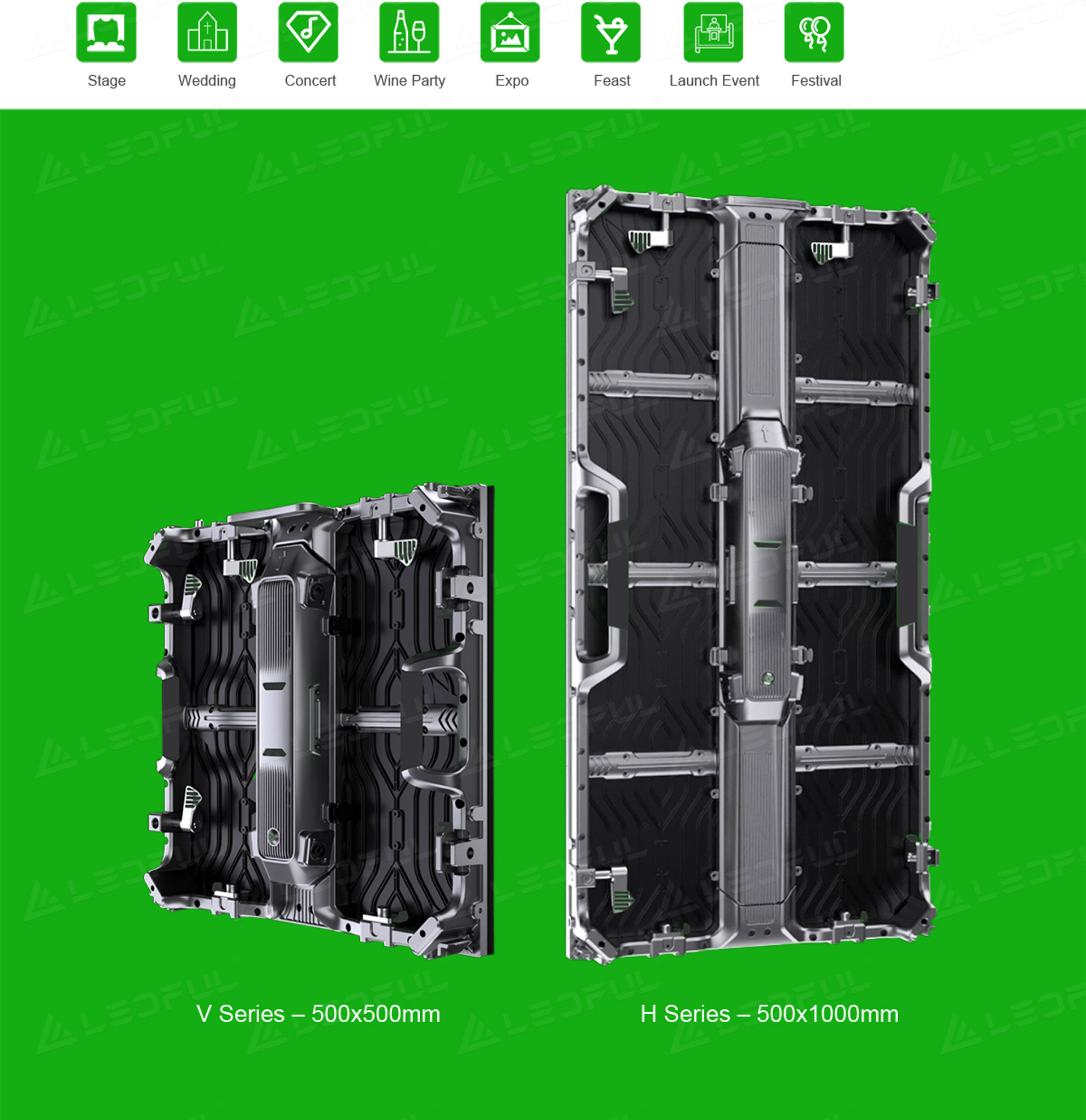

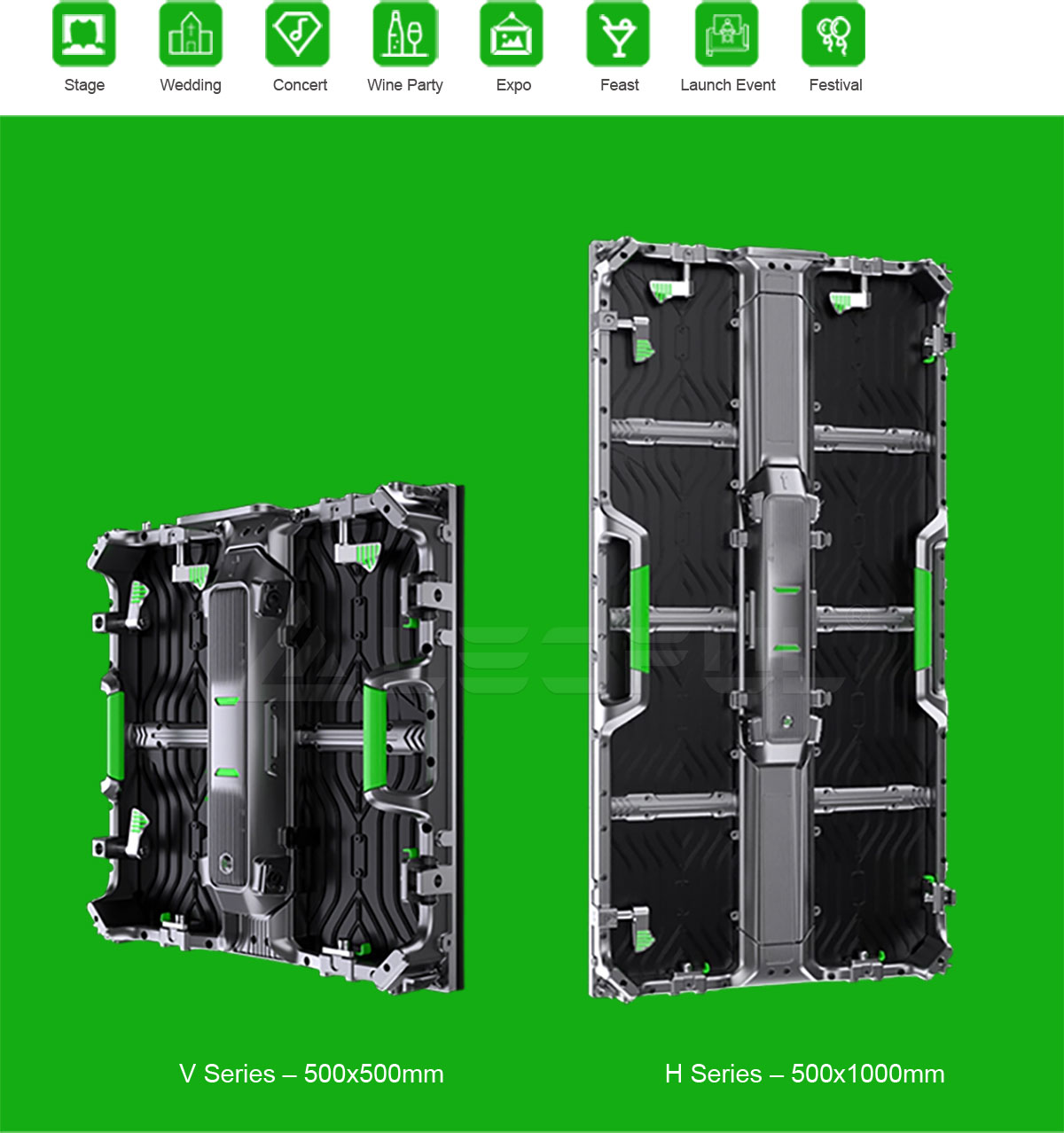

Applications
Applications
Specification
Model VI/HI2.5 VI/HI2.6 VI/HI2.9 VI/HI3.9 VI/HI4.8
Pixel Pitch(mm) 2.5 2.6 2.97 3.91 4.81
Pixel Matrix Per Sq.m 160,000 147,456 112,896 65,536 43,264
Pixel Configuration SMD1515 SMD1515 SMD2121 SMD2121 SMD2121
Brightness (cd/㎡) ≥1000 ≥1000 ≥1000 ≥1000 ≥1000
Scan 1/25 1/32 1/28 1/16 1/13
Module Dimension 250×250mm 250×250mm 250×250mm 250×250mm 250×250mm
Cabinet Dimension V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG
Power Con.(W/㎡) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP43 IP43 IP43 IP43 IP43
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

Model VO/HO2.6 VO/HO2.9 VO/HO3.9 VO/HO4.8
Pixel Pitch(mm) 2.6 2.98 3.91 4.81
Pixel Matrix Per Sq.m 147,456 112,896 65,536 43,264
Pixel Configuration SMD1415 SMD1415 SMD1921 SMD1921
Brightness (cd/㎡) 4000 4000 5 000 4000
Scan 1/32 1/21 1/16 1/13
Module Dimension 250×250mm 250×250mm 250×250mm 250×250mm
Cabinet Dimension V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm 		V -- 500x500mm
H -- 500x1000mm
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG 		V -- 8KG
H -- 14KG
Power Con.(W/㎡) (Max / Avg) 800W/200-300W 800W/200-300W 800W/200-300W 800W/200-300W
Service Access Front/Rear Front/Rear Front/Rear Front/Rear
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) ≥16 ≥16 ≥16 ≥16
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160° 160°/160°
IP Rate IP65 IP65 IP65 IP65
Input Voltage (AC) 110V / 240V 110V / 240V 110V / 240V 110V / 240V
* Specifications and photos are subject to change without prior notice.

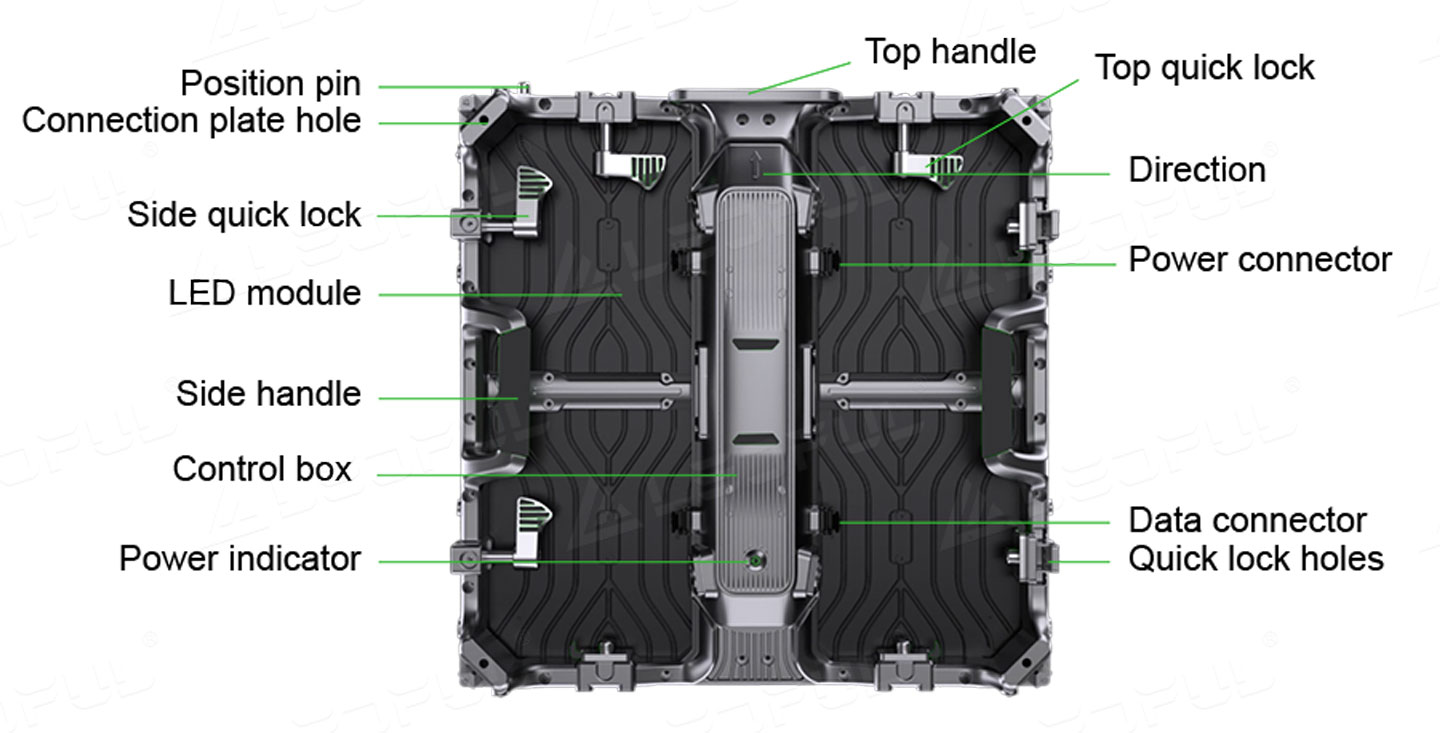

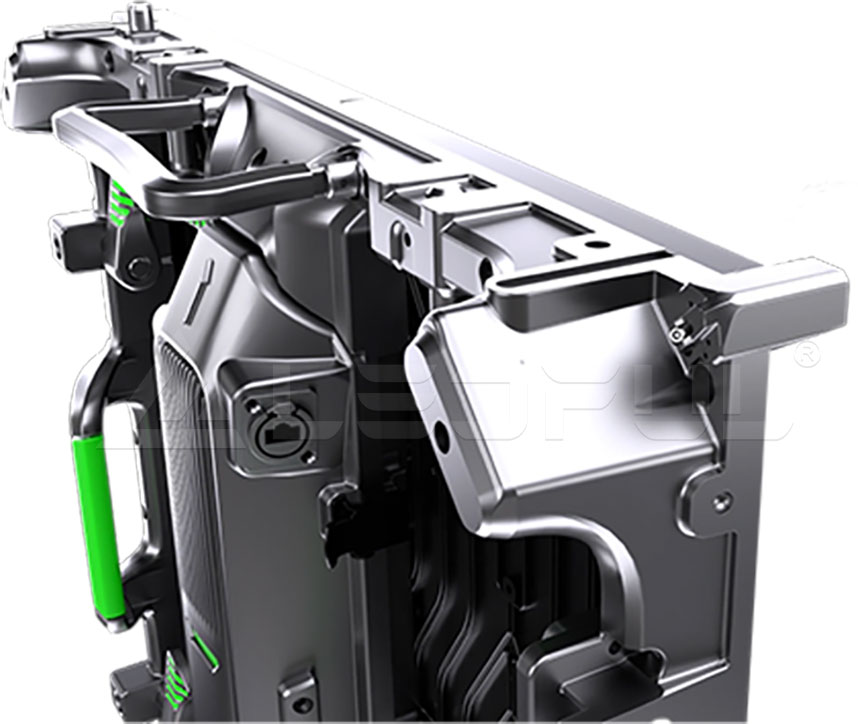

LEDFUL 4th Generation Rental V & H Cabinet Design
LEDFUL 4th Generation Rental V & H Cabinet Design

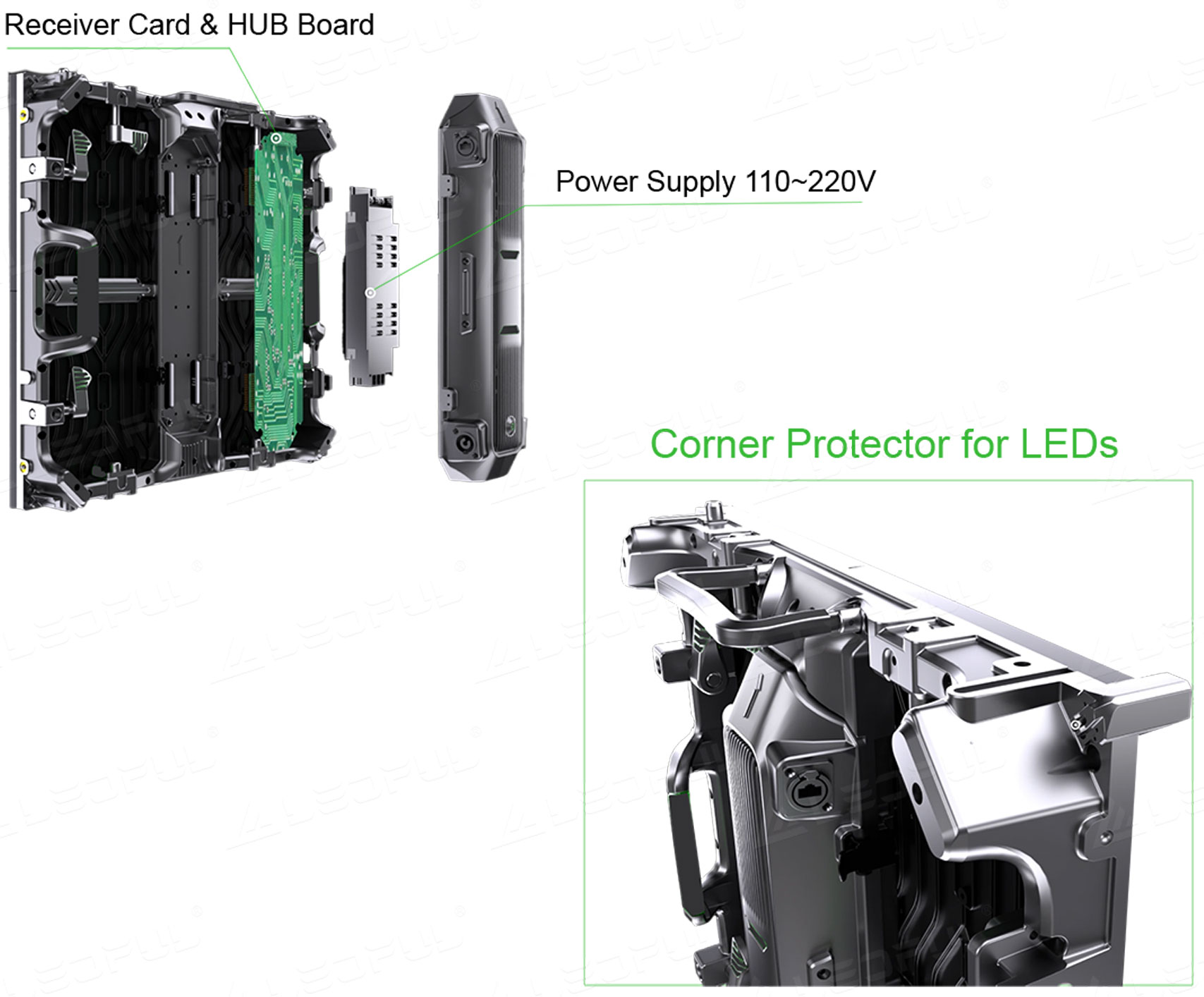

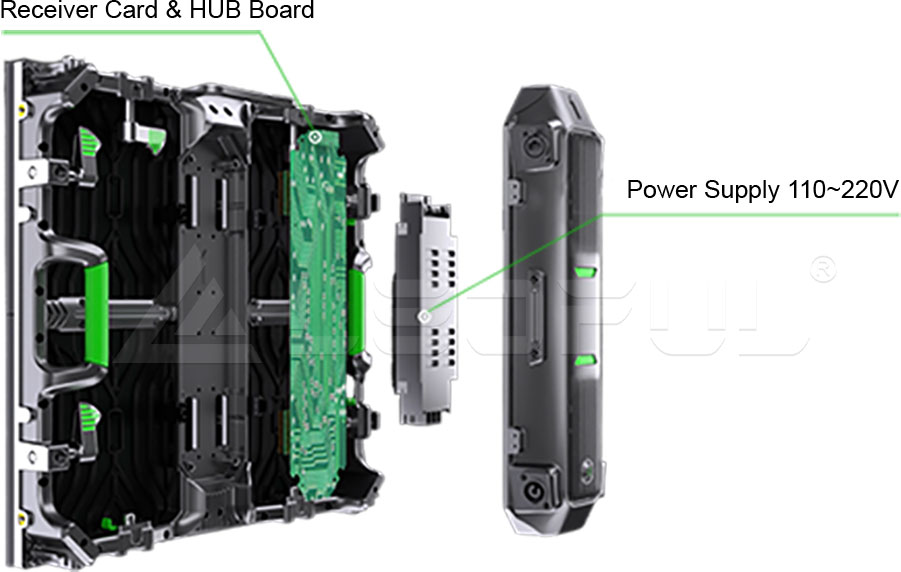

Quick Exchangeable Control Box for Easy Maintenance
Quick Exchangeable Control Box for Easy Maintenance

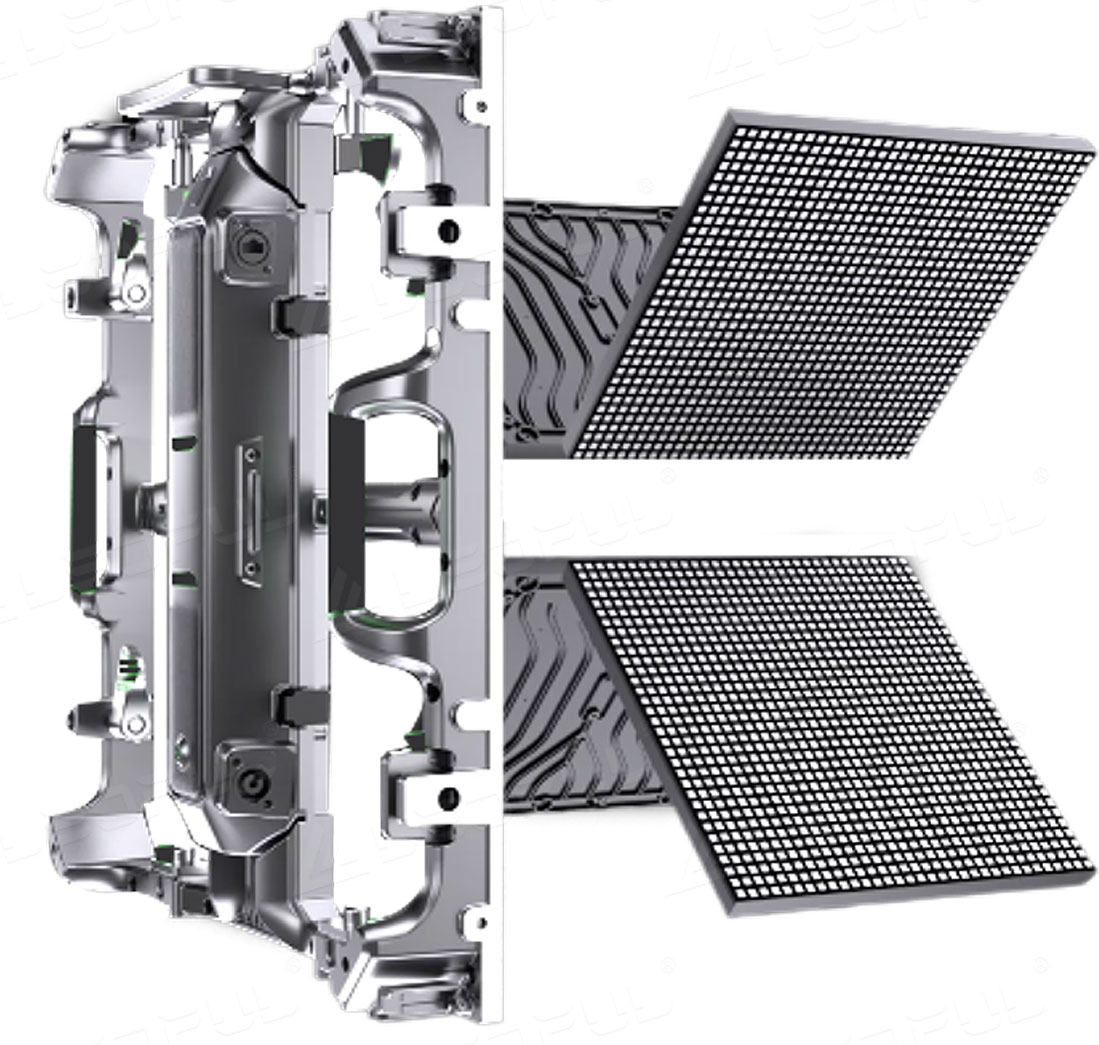

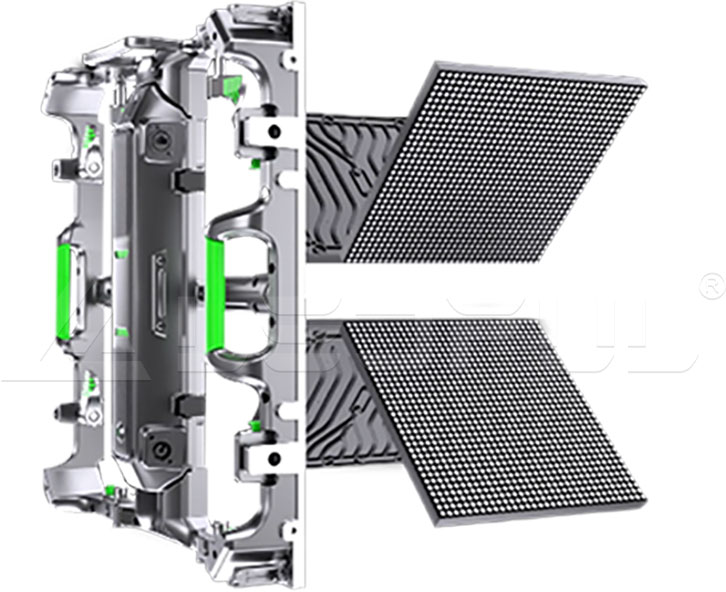

Front / Rear Service
Front / Rear Service

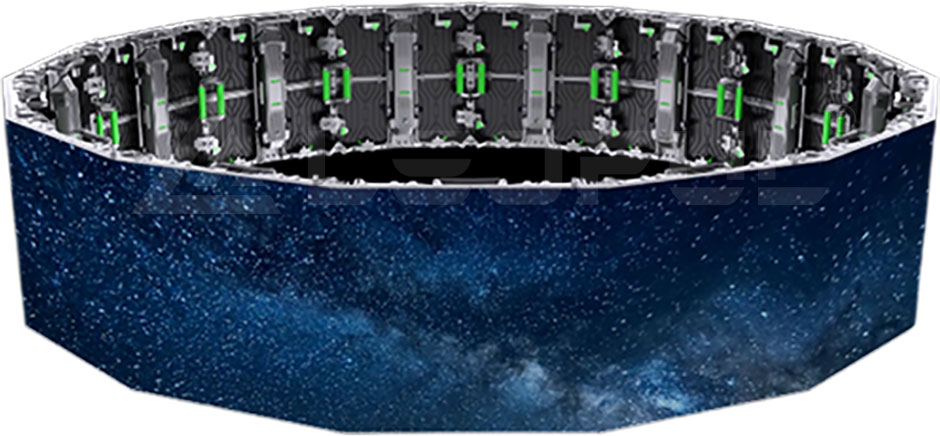

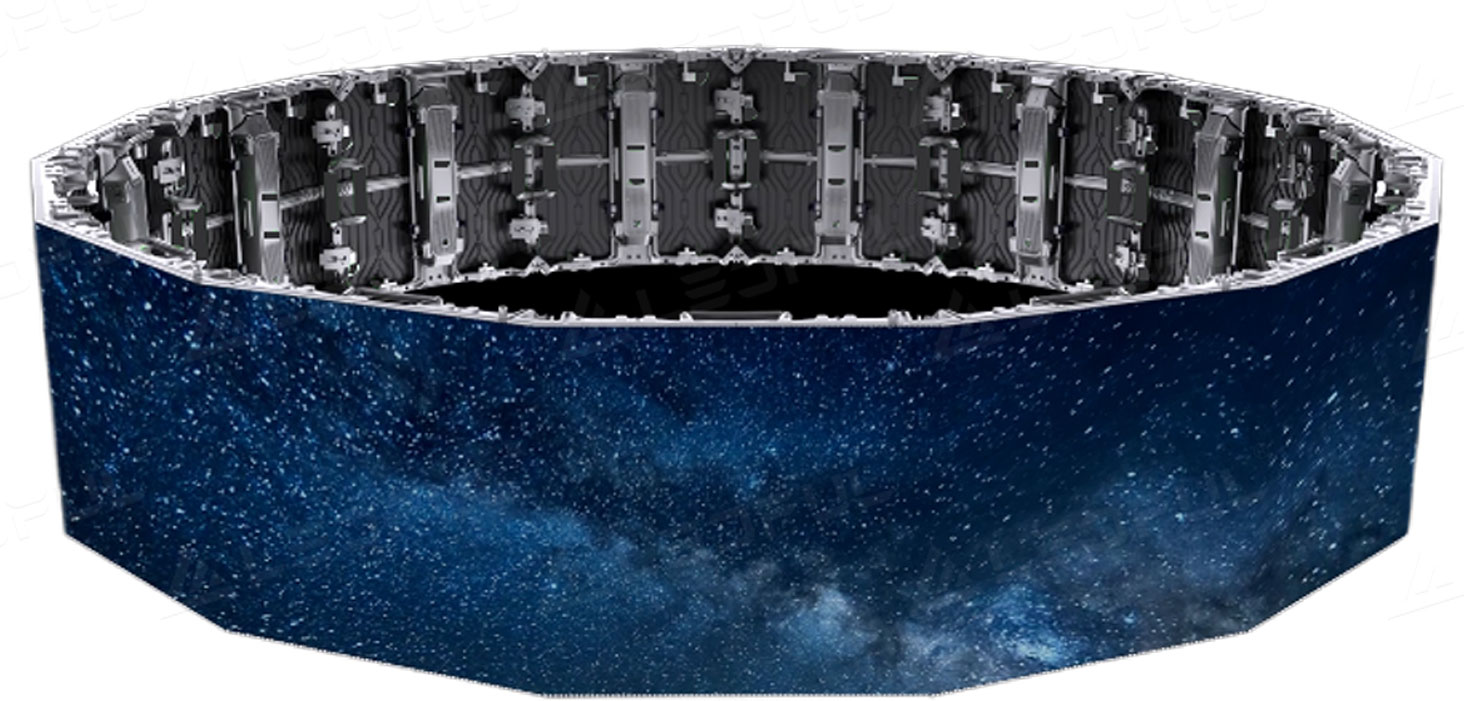

Curved Design
Curved with every 2.5° between -10°and 10°, which can make convex and concave
Curved Design

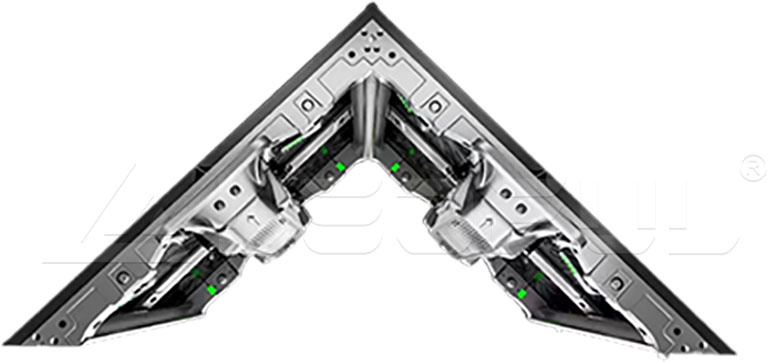

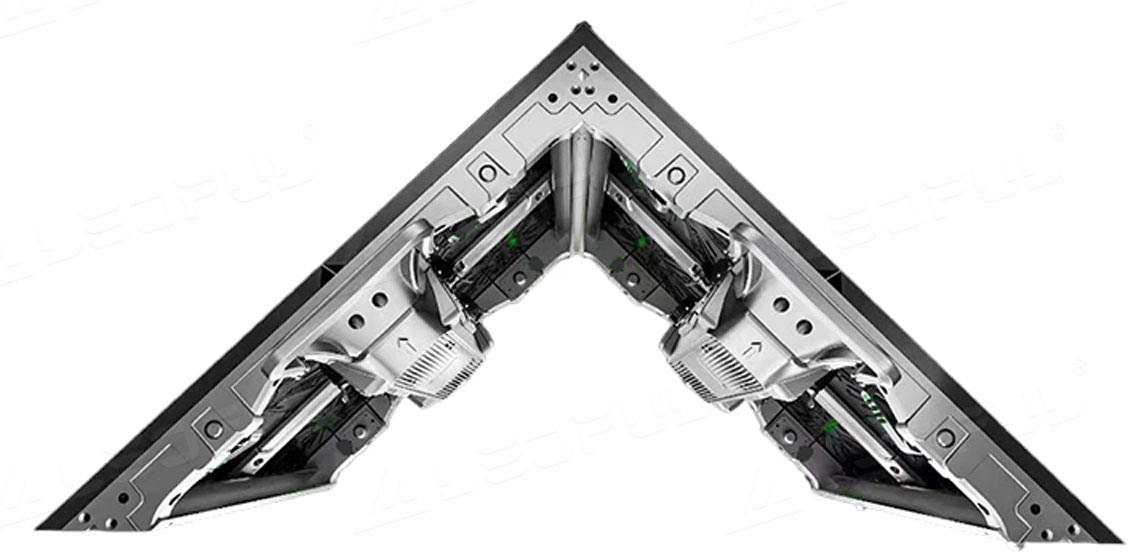

90° Degree Angle Design
90° Degree Angle Design

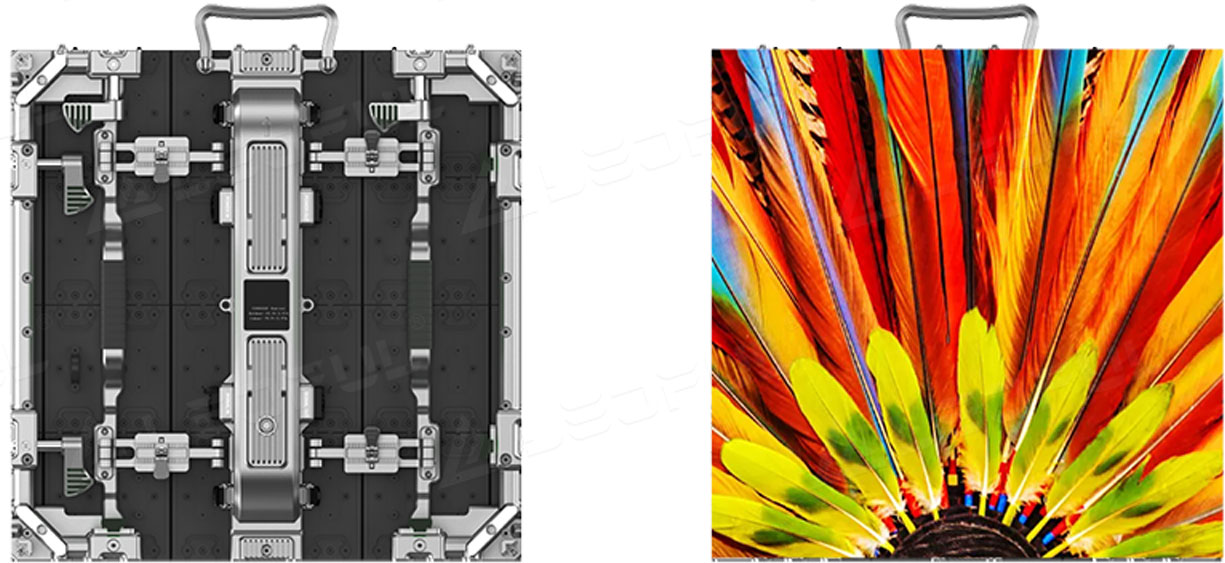

FLEX 30 Degrees
Strong, light and thin
FLEX 30 Degrees

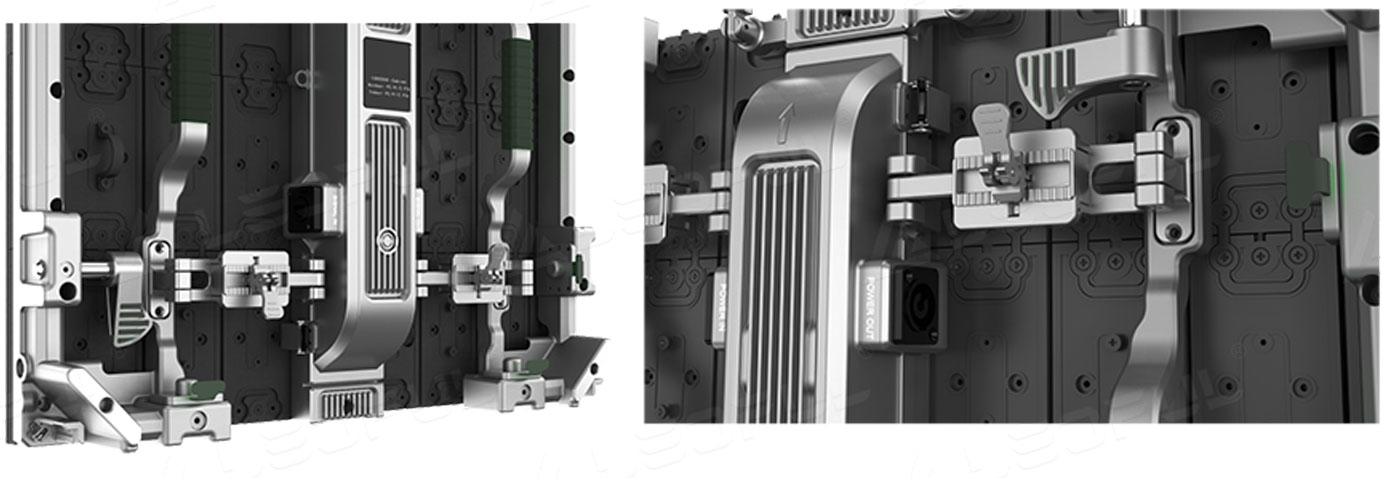

Self-Adjustable Lock
30 degrees, lock & unlock two status
Self-Adjustable Lock

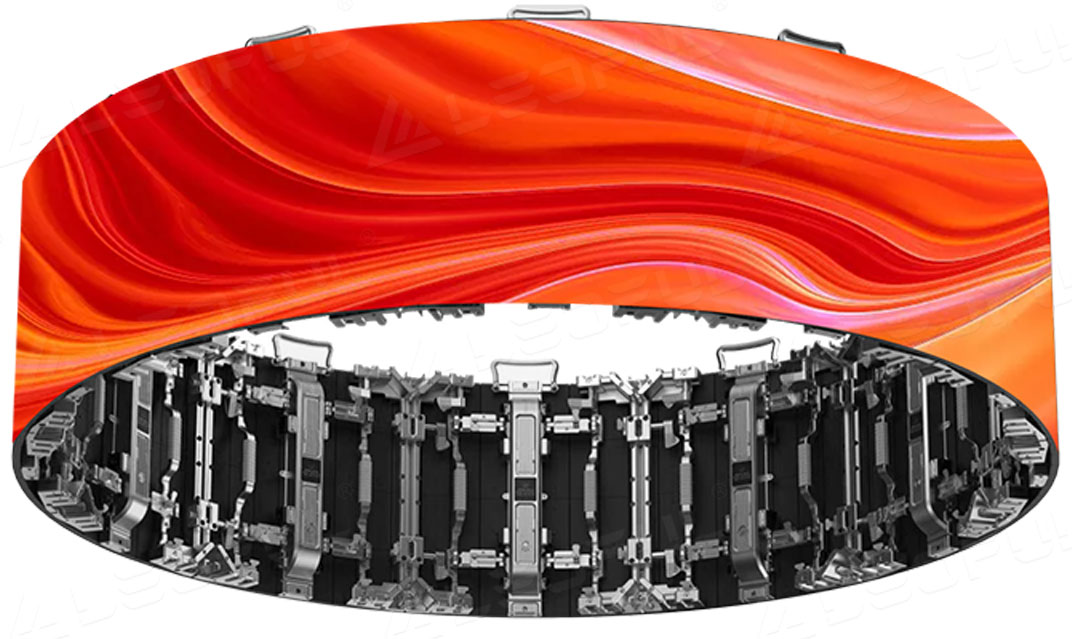

V&H-Flex | New Tech
V&H-Flex | New Tech

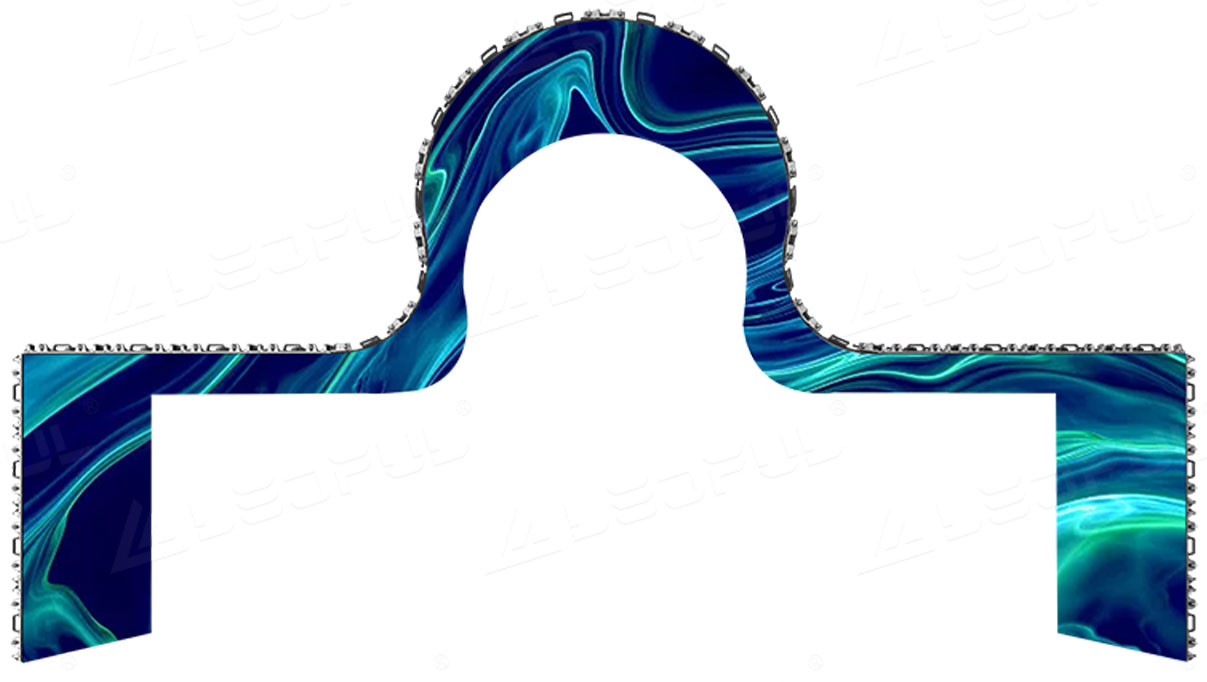

Curve, Flate, 90 Degrees Together
Meet your more creative designs
Curve, Flate, 90 Degrees Together

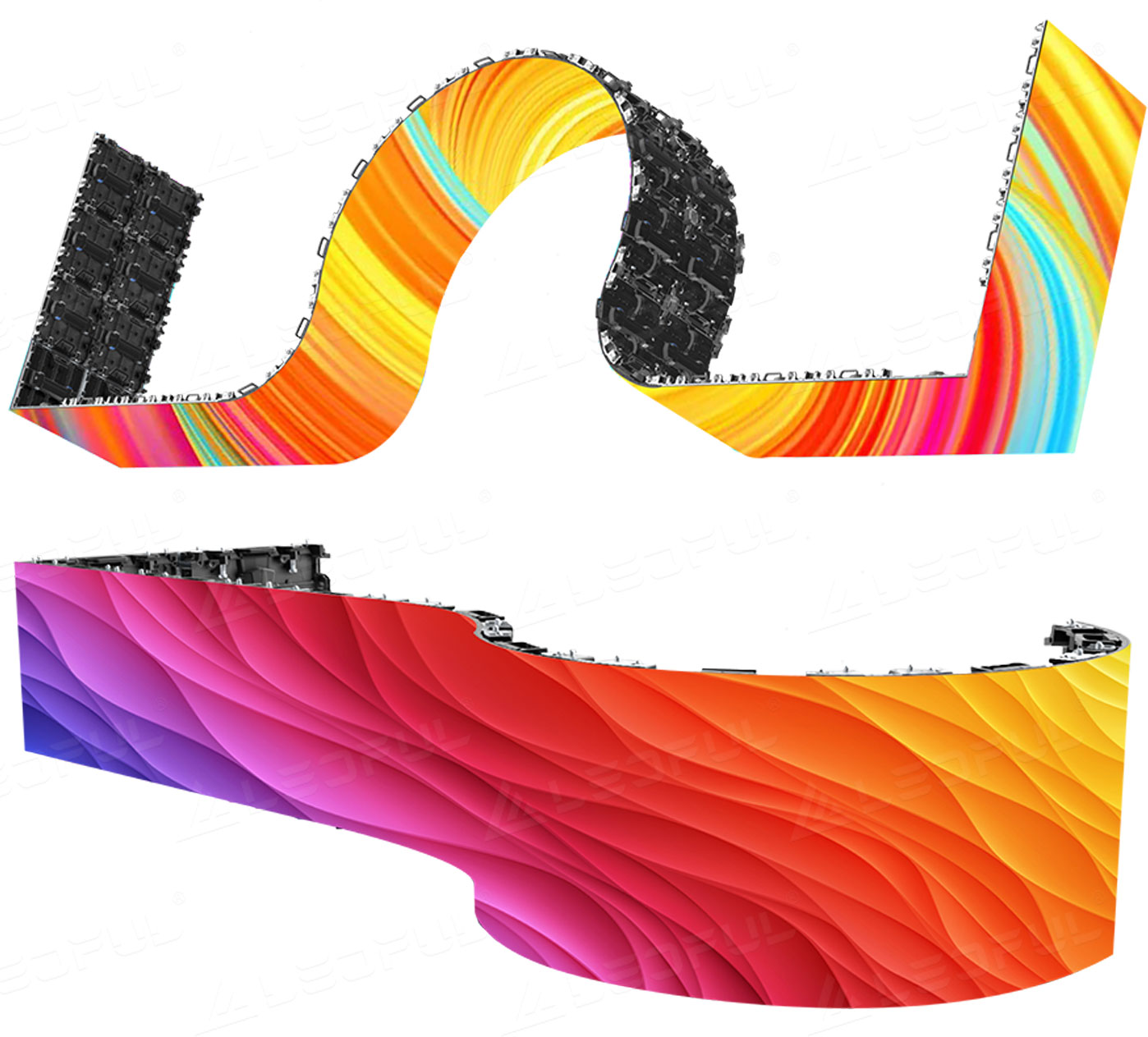

Creative Design for Event
Can be used with V&H series together
Creative Design for Event

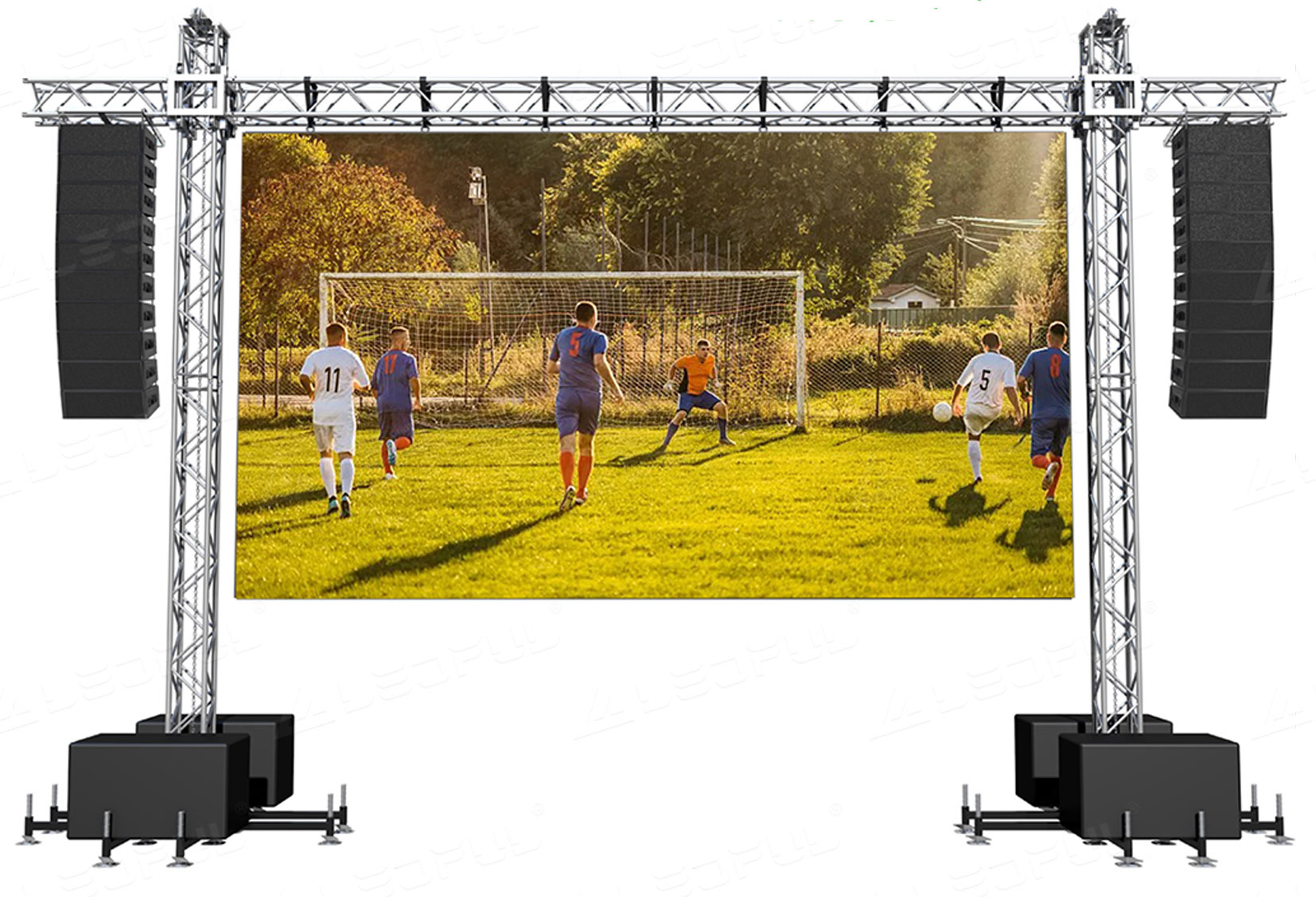

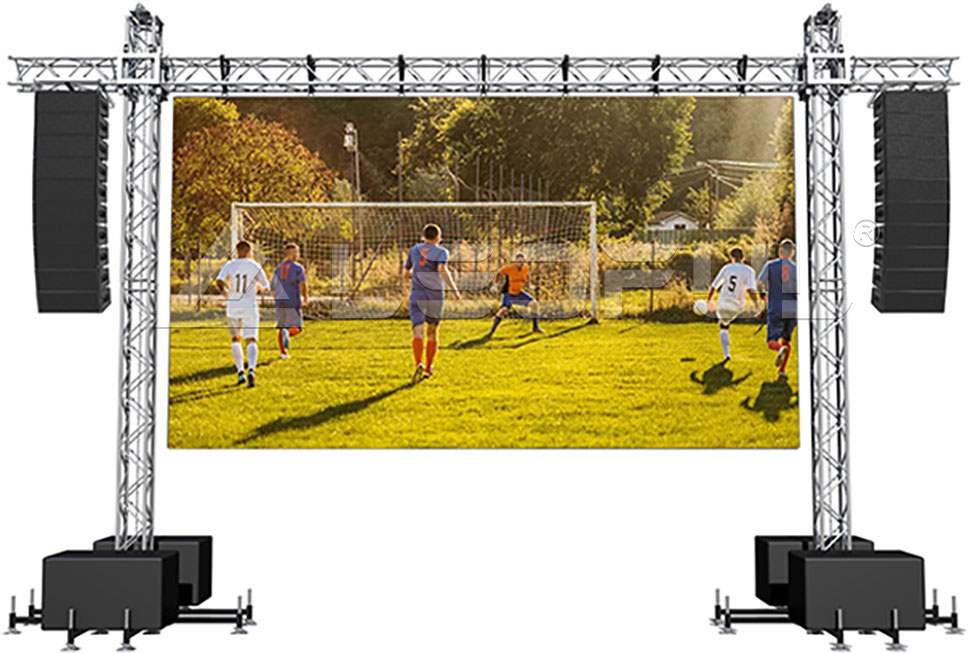

V & H Series Used Together
V & H Series Used Together

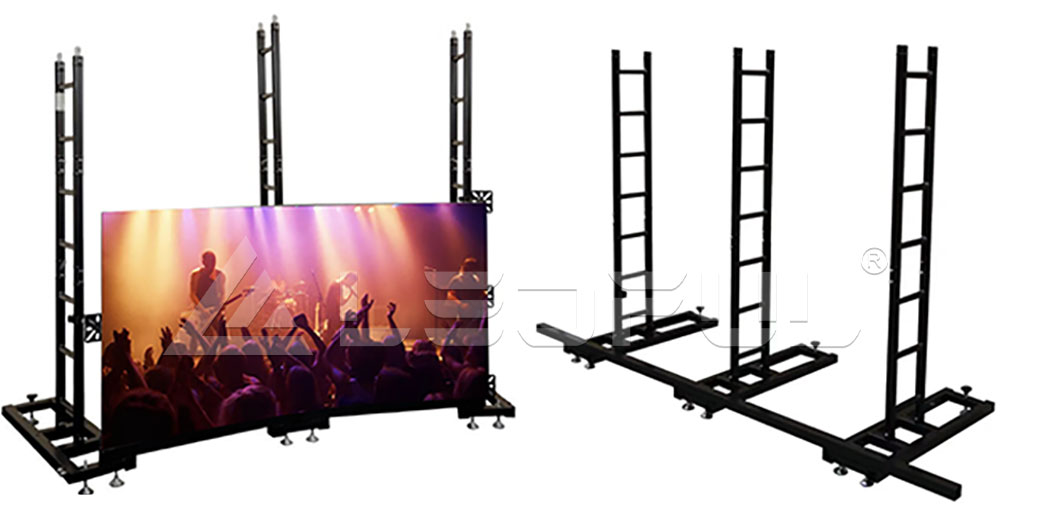

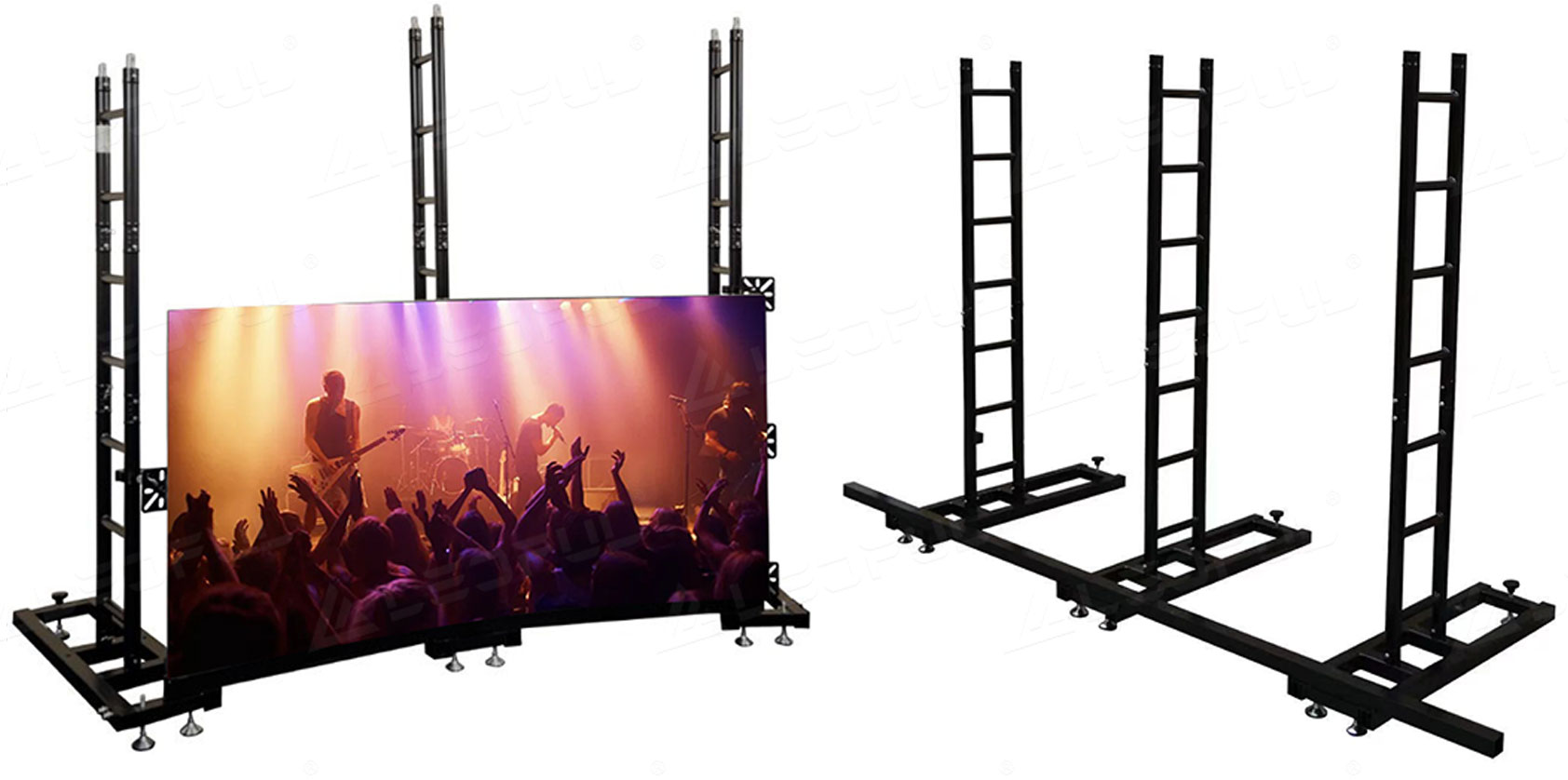

Hanging or Stacking, LEDFUL Support All Installation & Structure Options
Hanging or Stacking, LEDFUL Support All Installation & Structure Options

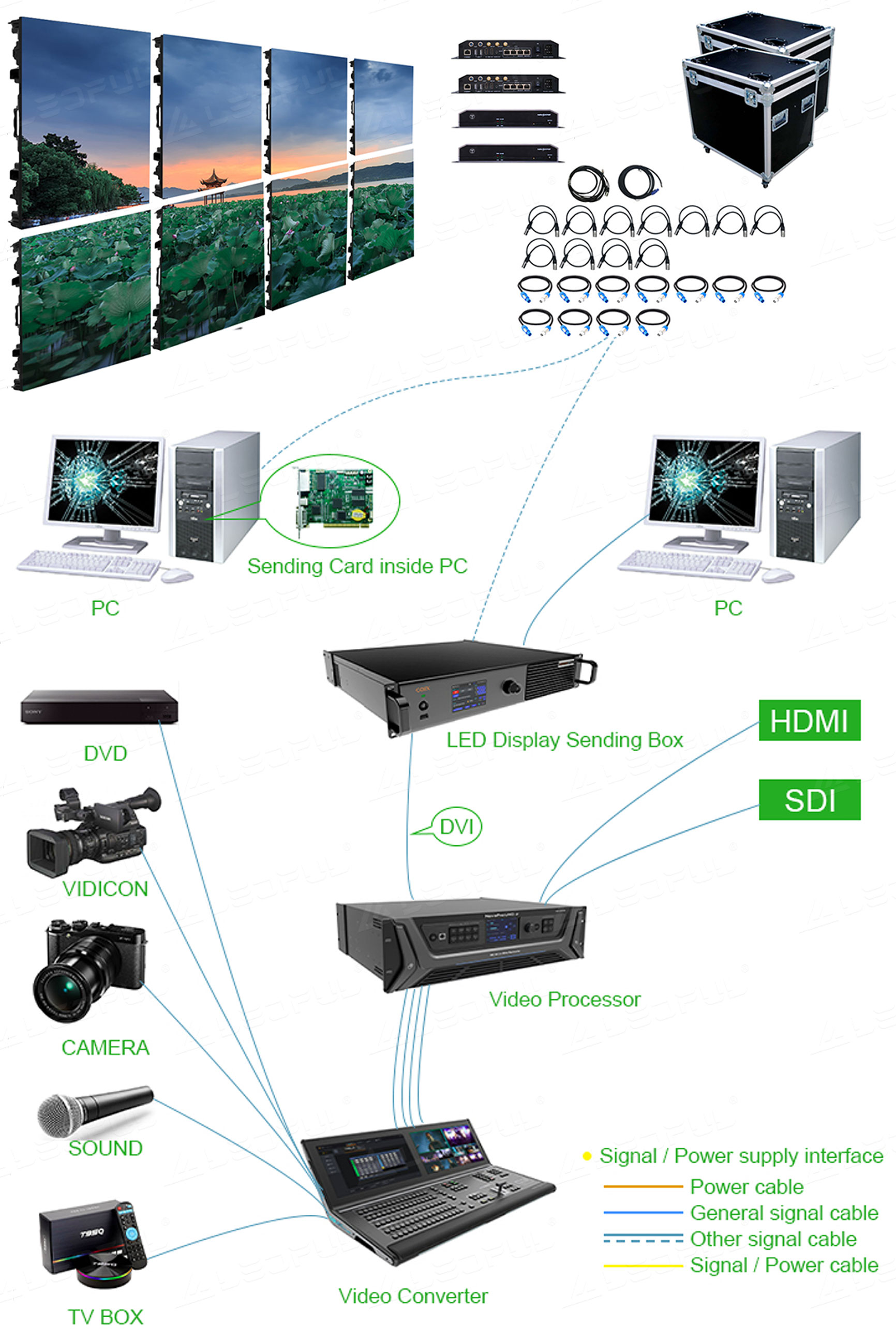

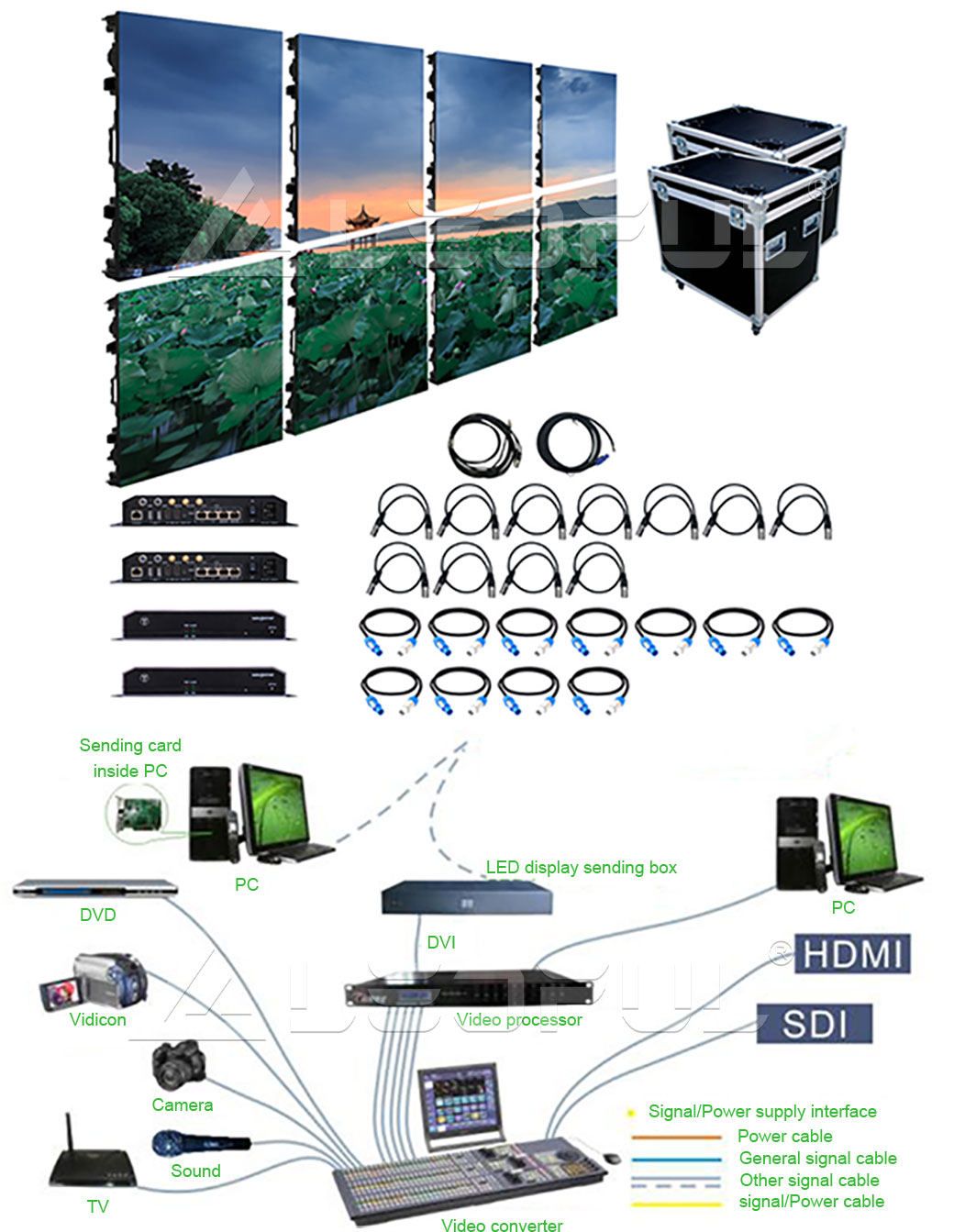

Hardware Connection Diagram
Hardware Connection Diagram

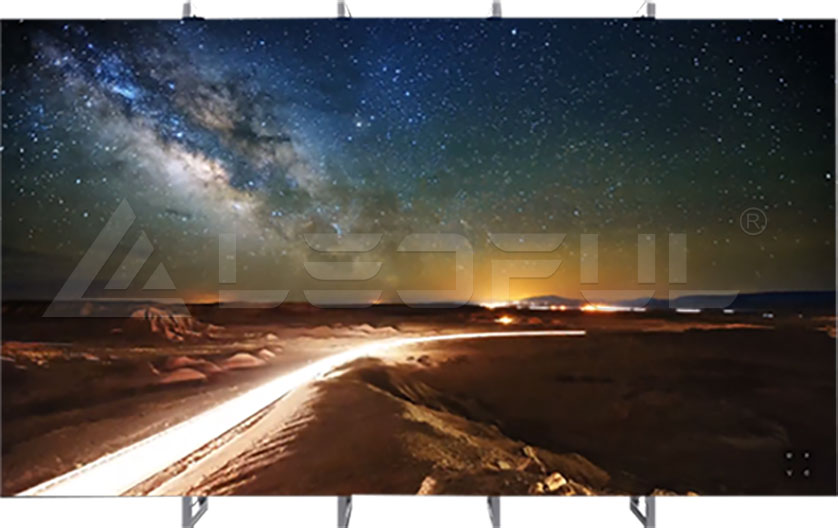

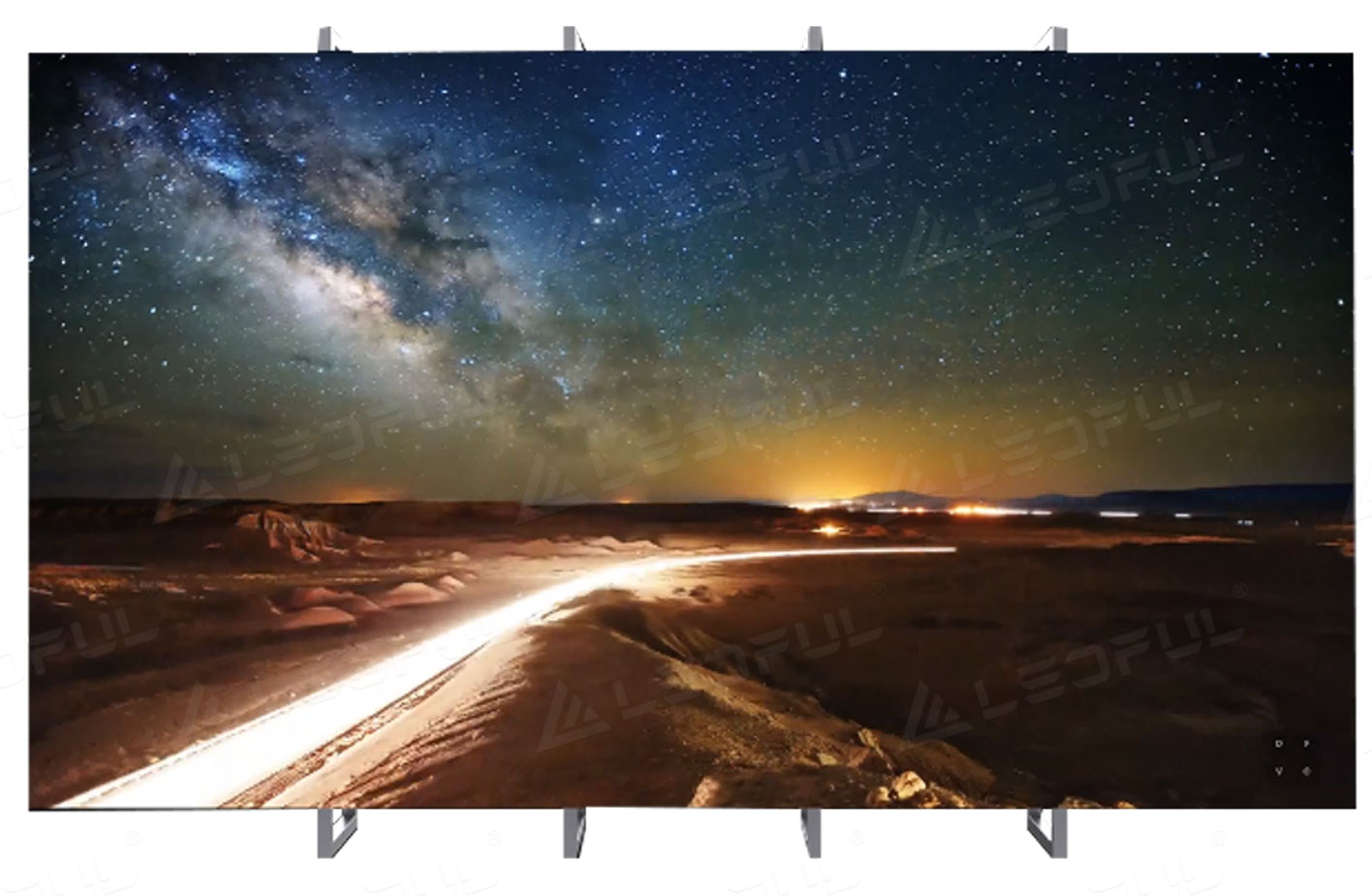

Great Performance – High Refresh 3840Hz, High Grey Scale 16bits, 70 billion colors
Great Performance – High Refresh 3840Hz, High Grey Scale 16bits, 70 billion colors

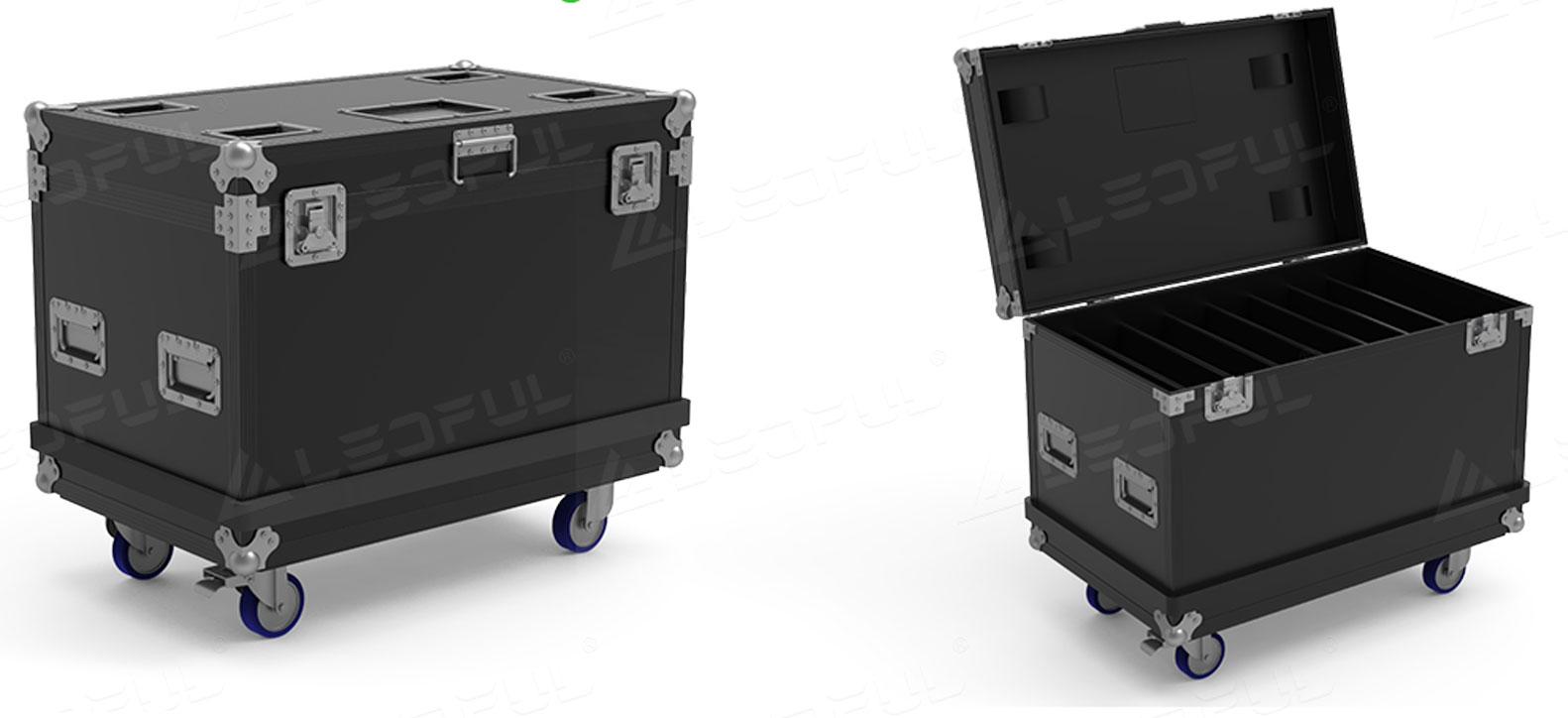

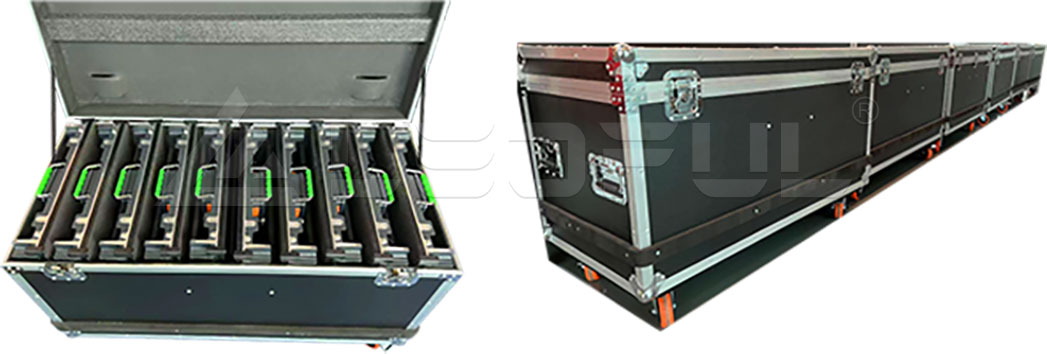

Flight Case Package
Flight Case Package
Features
Features

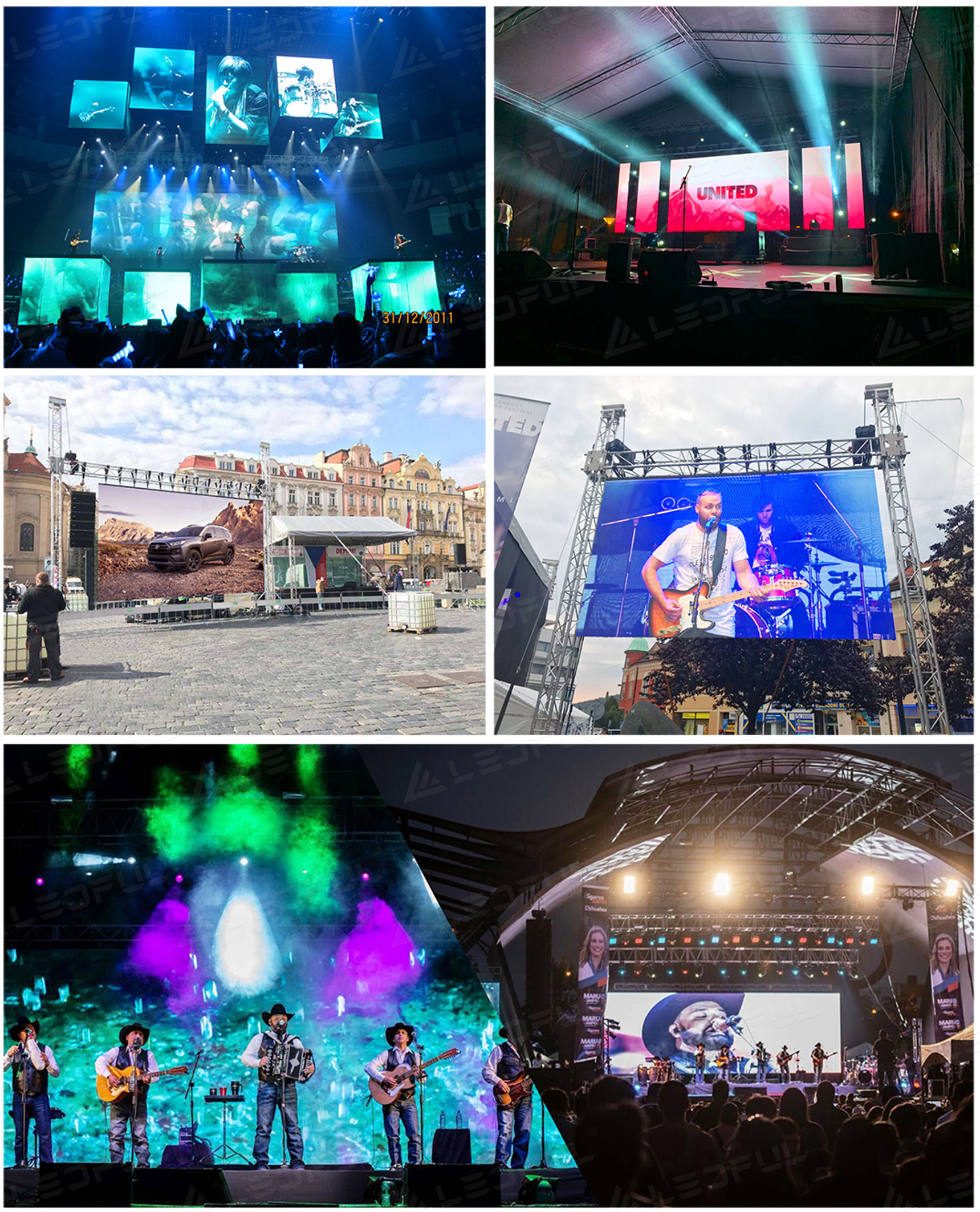

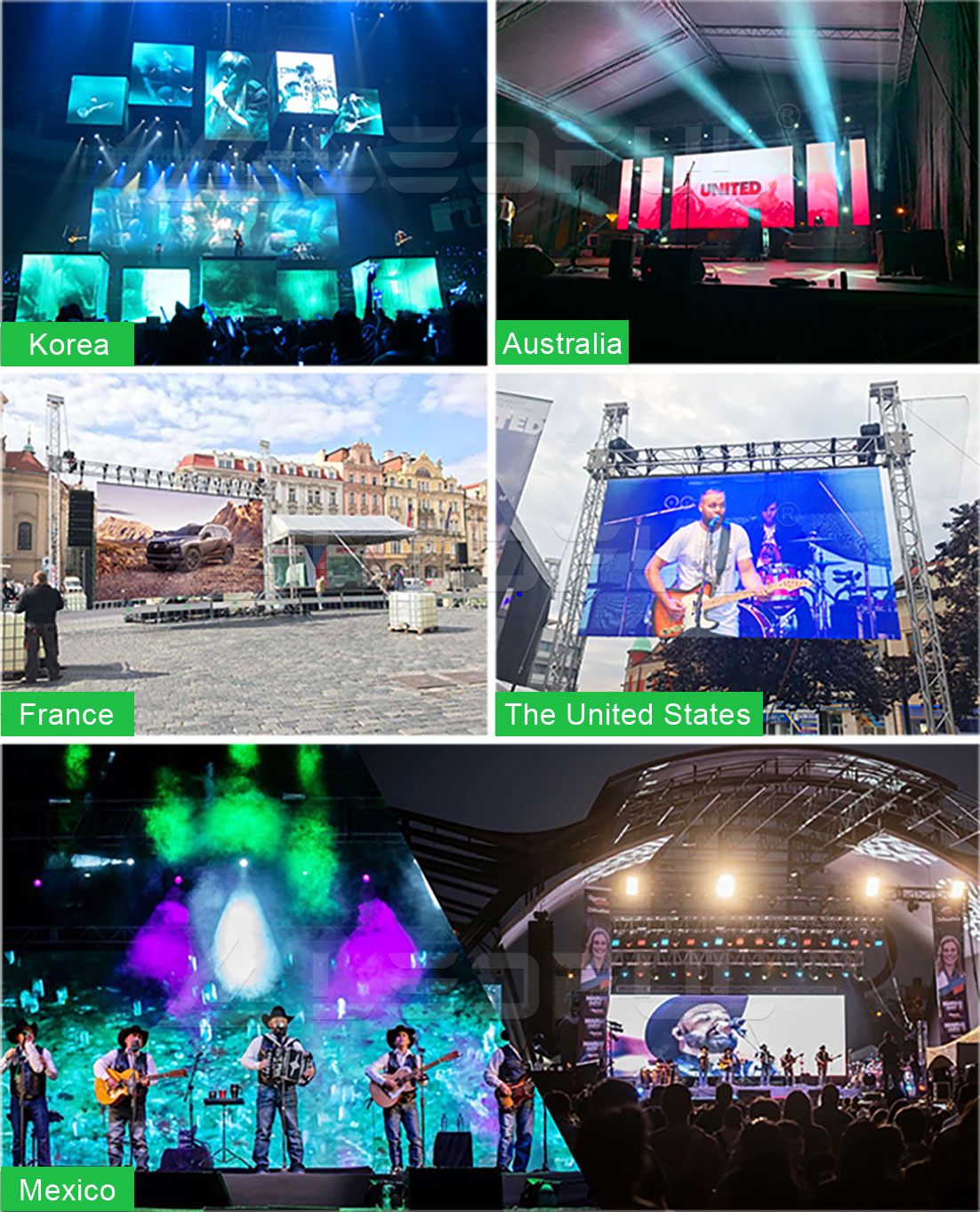

Typical Project Show
Typical Project Show
We Work With
We Work With
