Umbrella-shape Series

Flexible and Creative LED Display

Applications
Applications
Specification
Model P1.25 P1.579 P1.667 P1.875 P2 P2.5 P3
Pixel Pitch(mm) 1.25 1.579 1.667 1.875 2 2.5 3
Pixel Matrix Per Sqm. 640000 401111 360000 284444 250000 160000 111111
Pixel Configuration SMD1010 SMD1010 / SMD1212 SMD1010 / SMD1212 SMD1212 / SMD1515 SMD1515 SMD1515 SMD1515 / SMD2121
Brightness (nits) ≥600 ≥650 ≥700 ≥750 ≥750 ≥750 ≥900
Scan 1/48 1/38 1/36 1/32 1/30 1/24 1/20
Module Dimension 240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft 		240x120mm
/ 0.79x0.39ft
Module Material Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket 		Silicon Rubber
Soft Bracket
Module Weight 0.215kg 0.203kg 0.195kg 0.216kg 0.205kg 0.175kg 0.175kg
Power Con. (Max / Avg) 1000 / 340 w/sq.m 1000 / 340 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m 800 / 270 w/sq.m
Service Access Front Front Front Front Front Front Front
Refresh Rate (HZ) 3840 3840 3840 ≥2880 ≥2880 ≥1920 ≥1920
Grey Scale (bit) 14 14 14 14 14 14 14
Viewing Angle (H/V) 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140 140 / 140
IP Rate IP45 IP45 IP45 IP45 IP45 IP45 IP45
Operation Temperature -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50° -10° ~ 50°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V

* Specifications and photos are subject to change without prior notice.

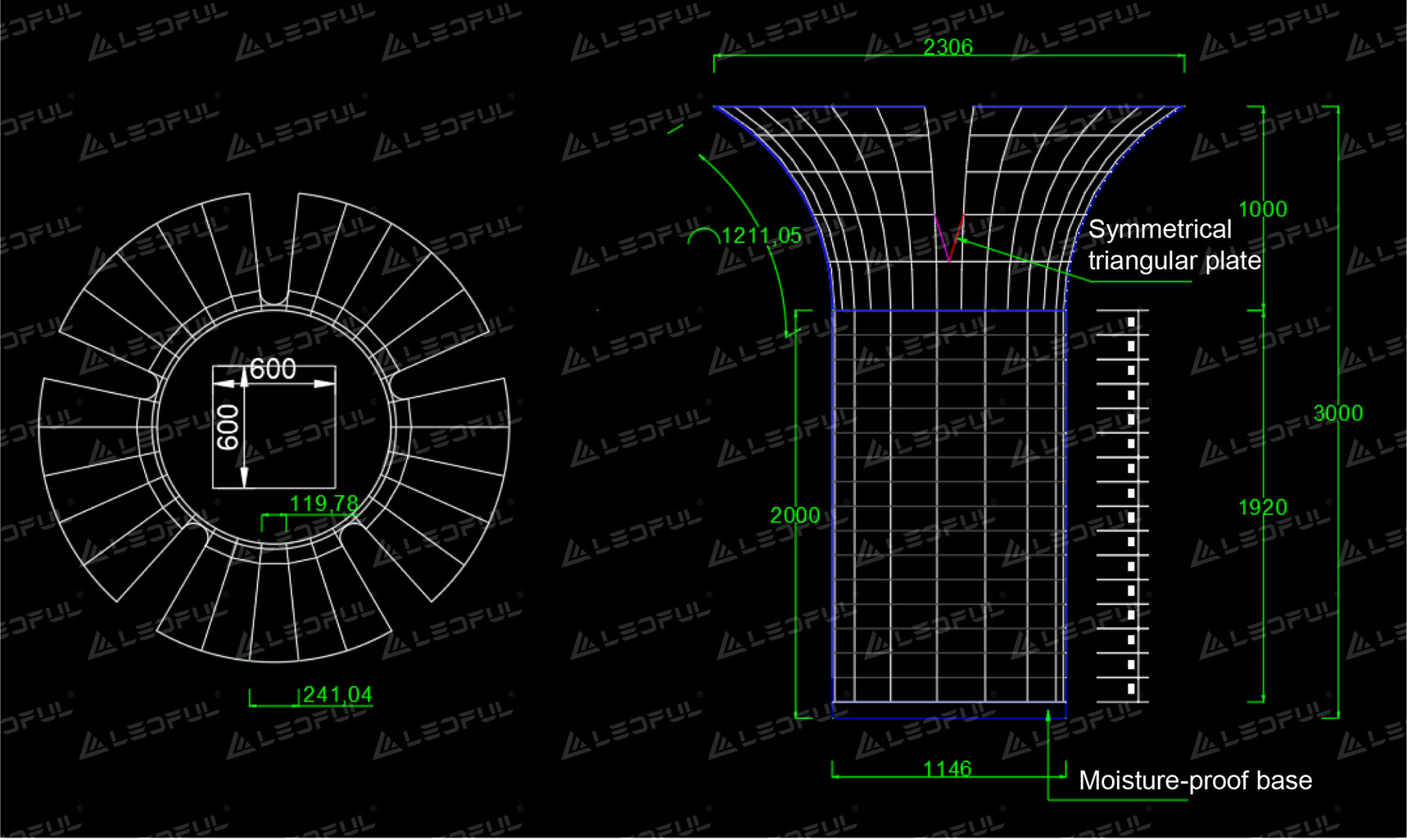

2D Umbrella Screen Drawing
2D Umbrella Screen Drawing

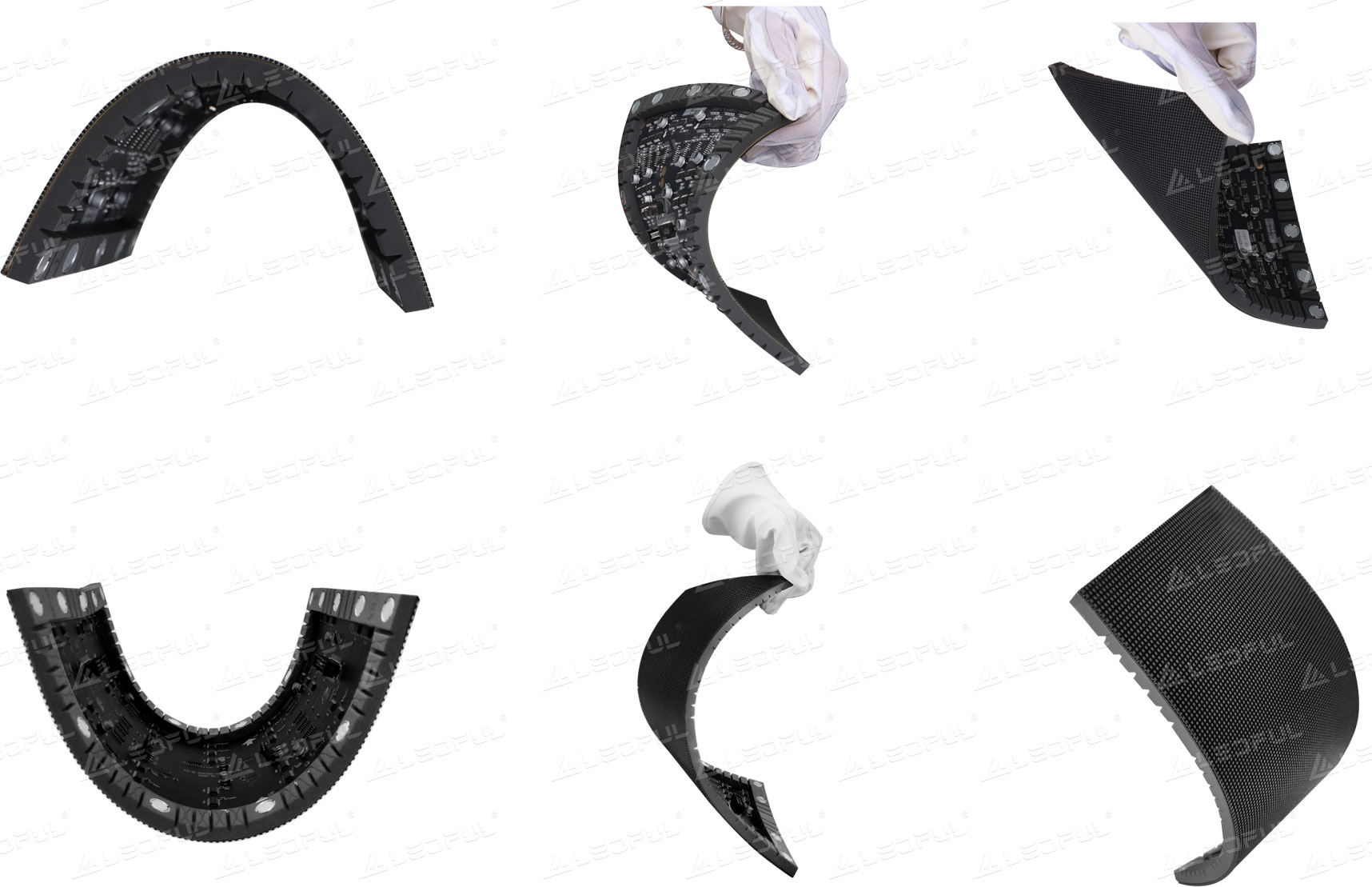

Details Showing
Maximum curved angle is 90 degree.
Details Showing

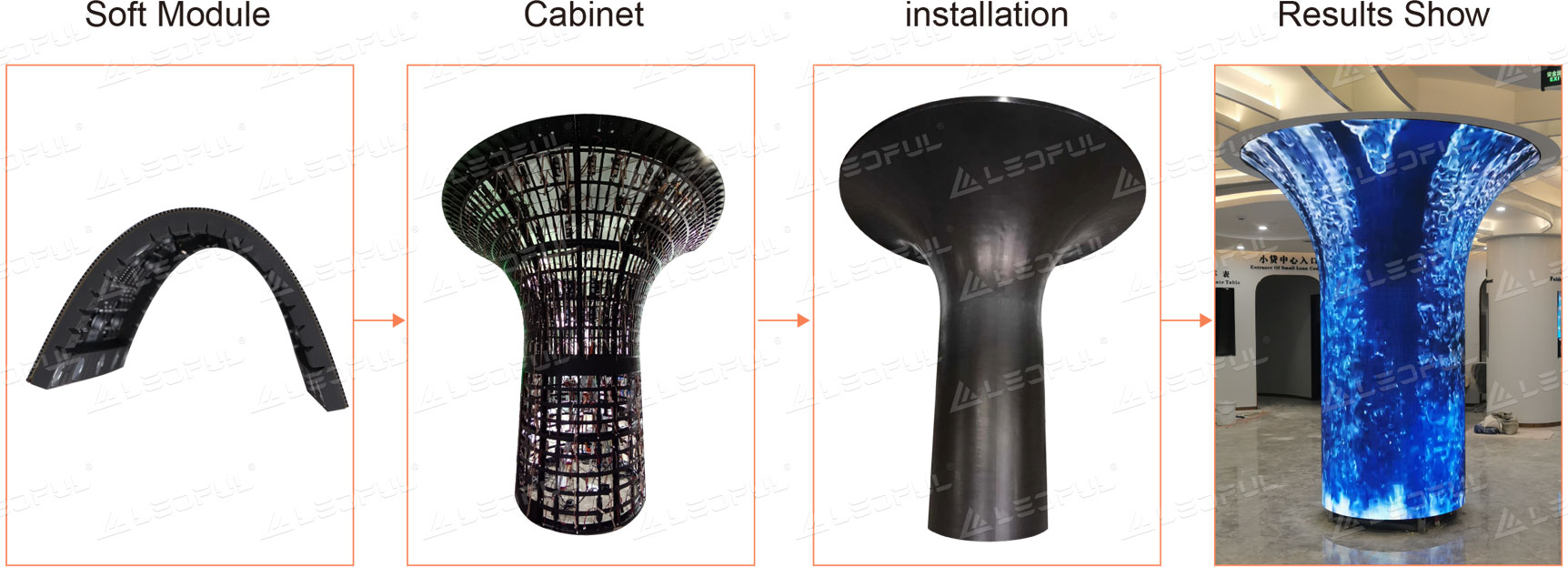

Installation Process
Installation Process

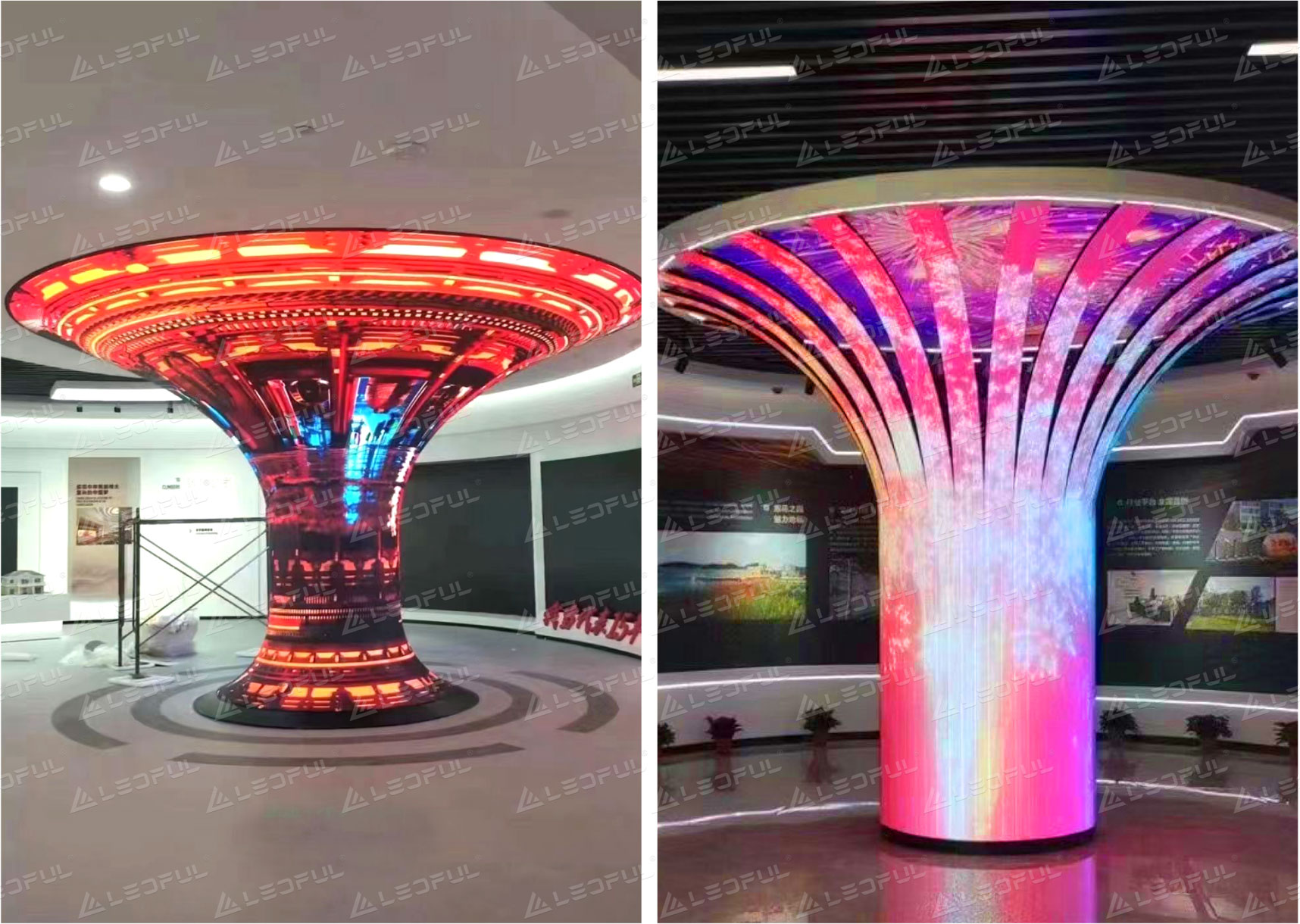

Typical Project
Typical Project
Features
Features
