A Series

LED Flexible Transparent Film Display

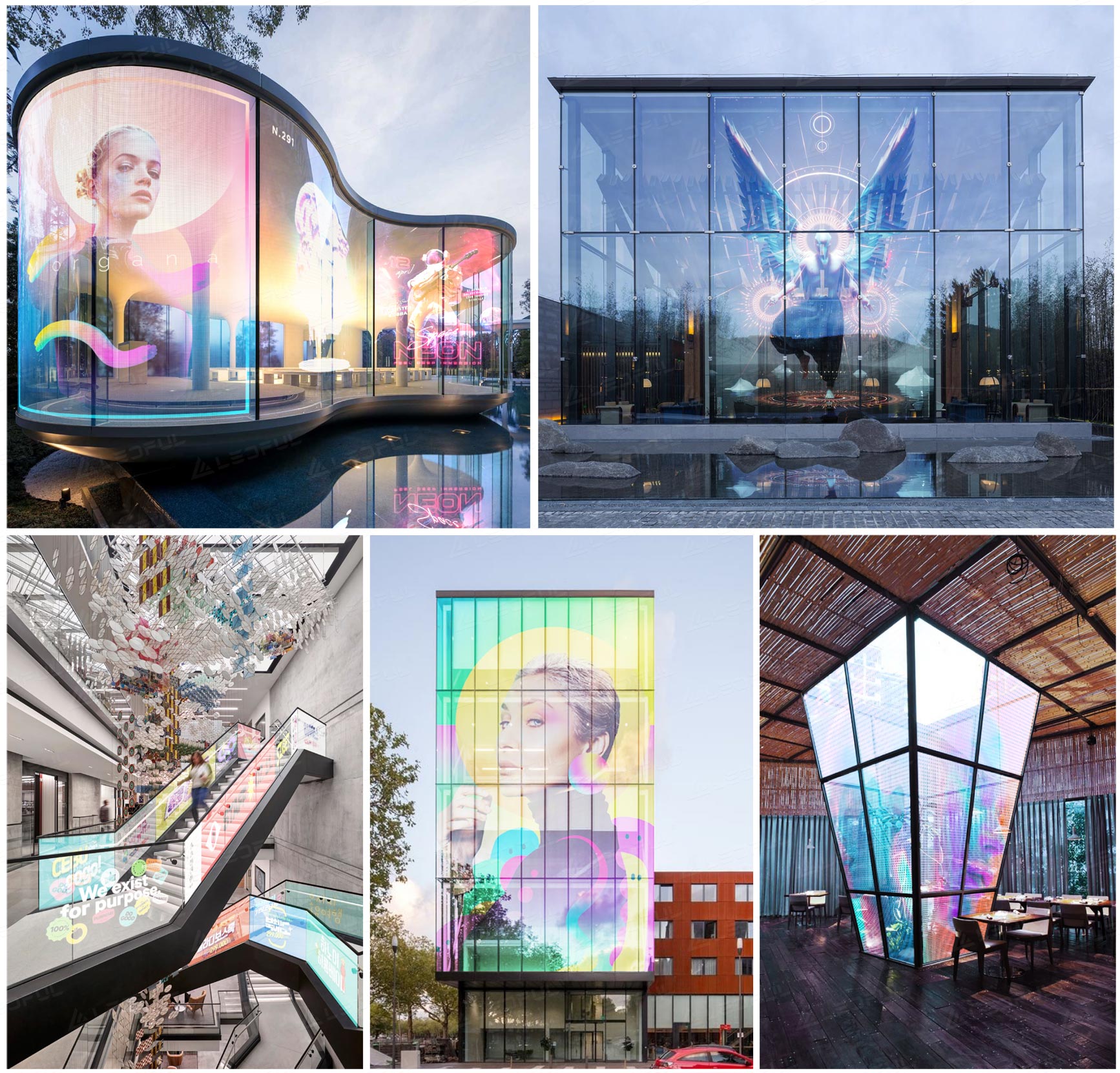

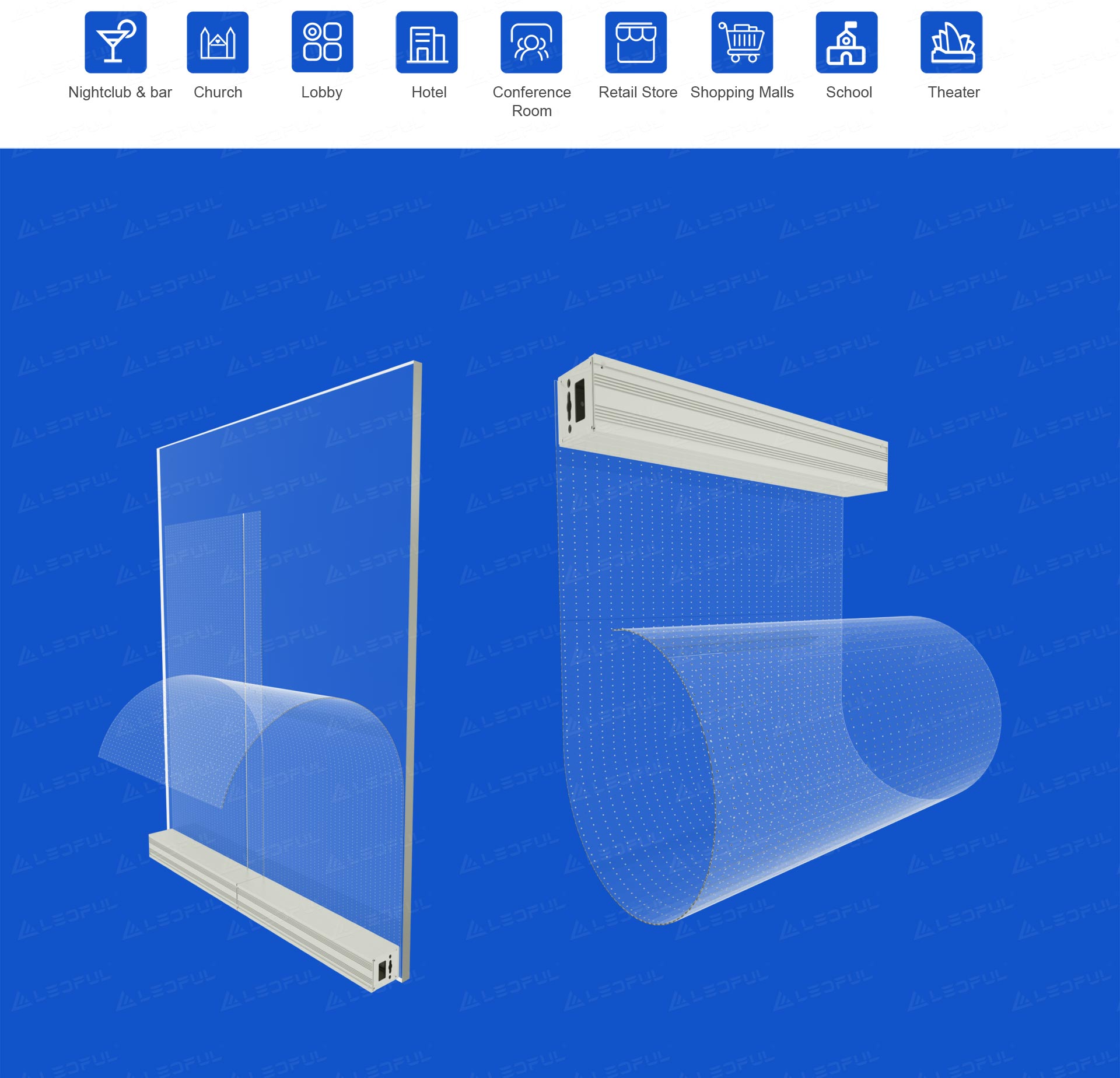

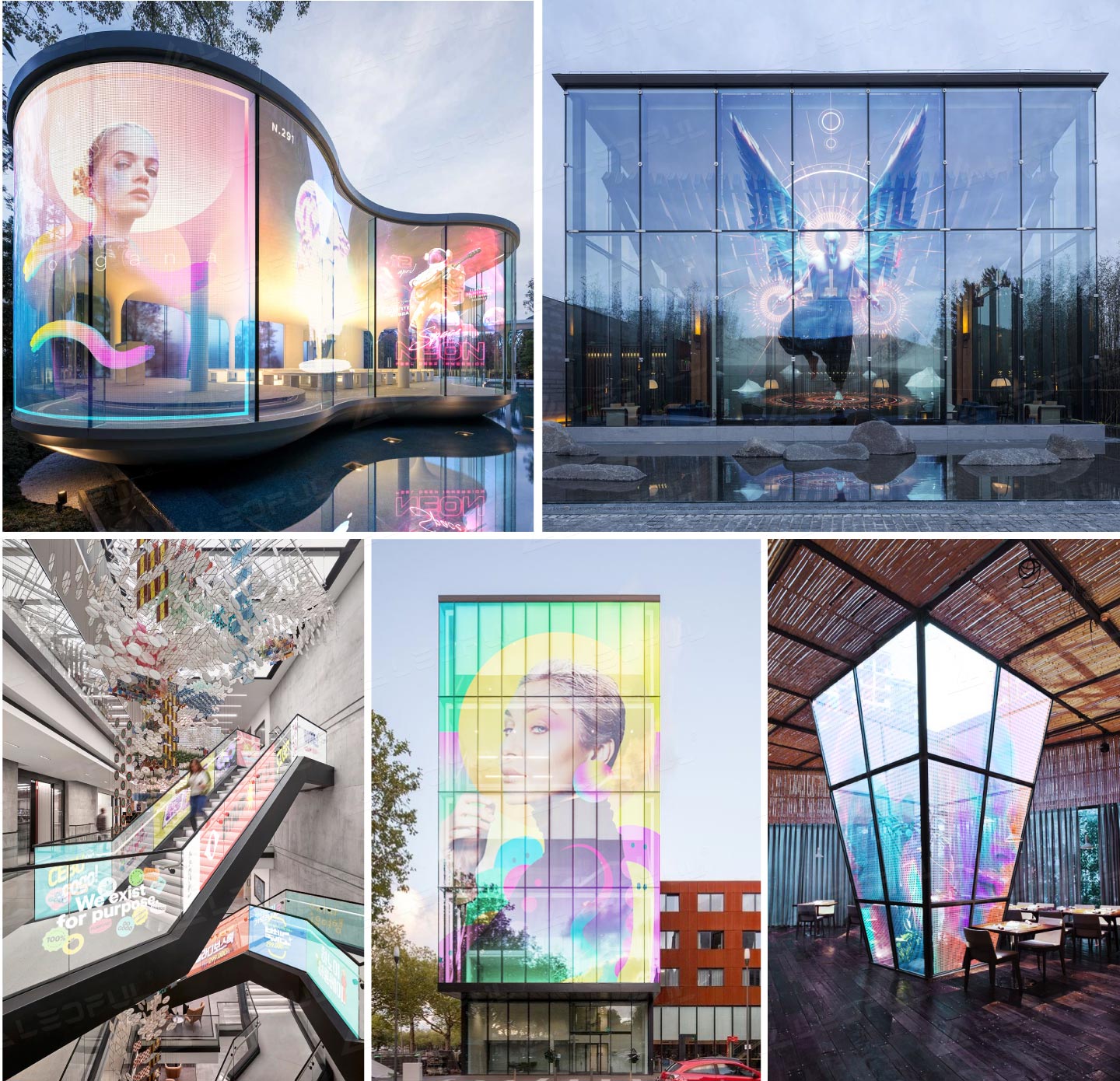

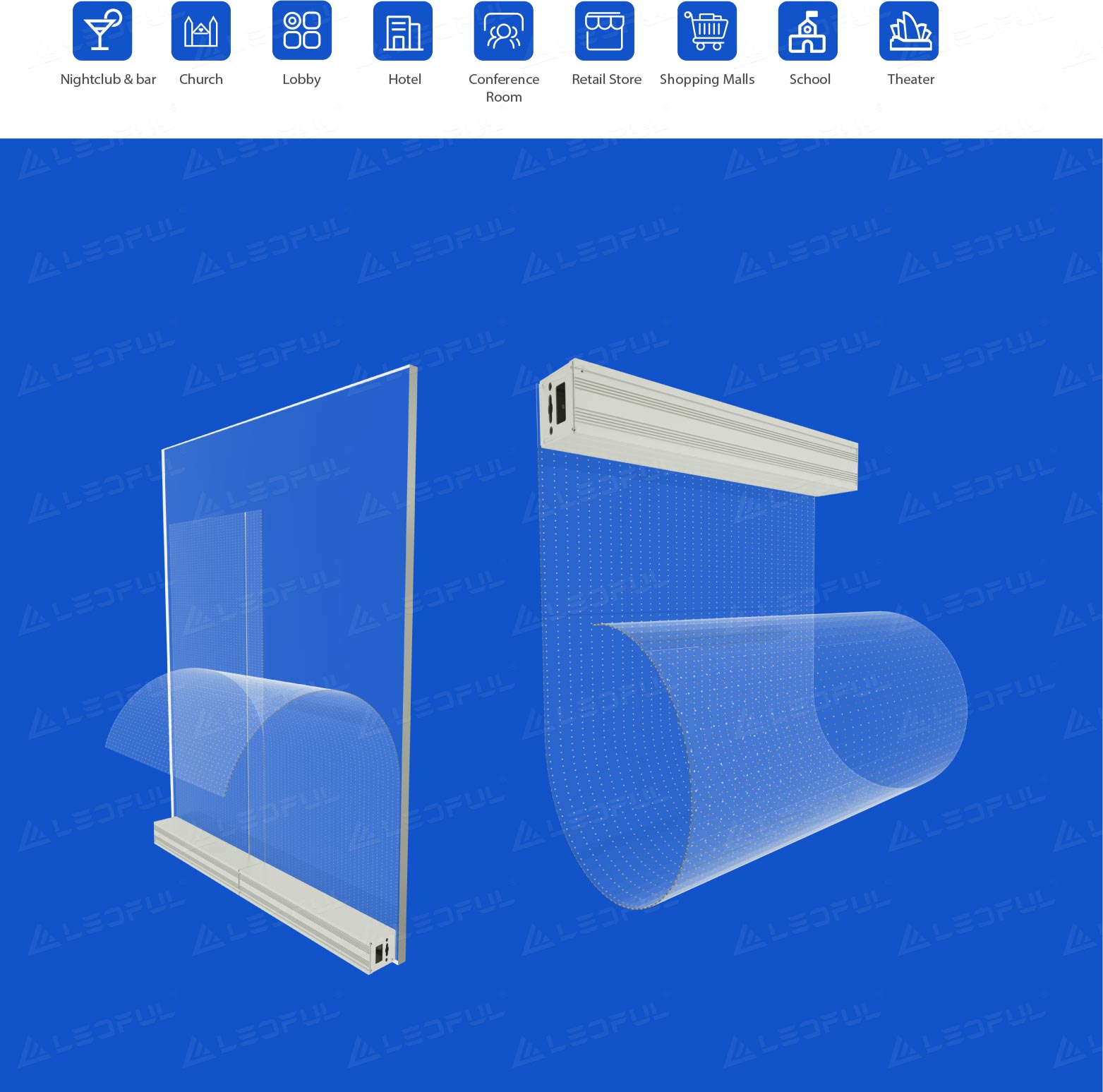

Applications

Specification

Model	SMD1313(3-in-1 integratad drive)
Pixel Pitch(mm）	P5	P6.25	P8	P10	P20

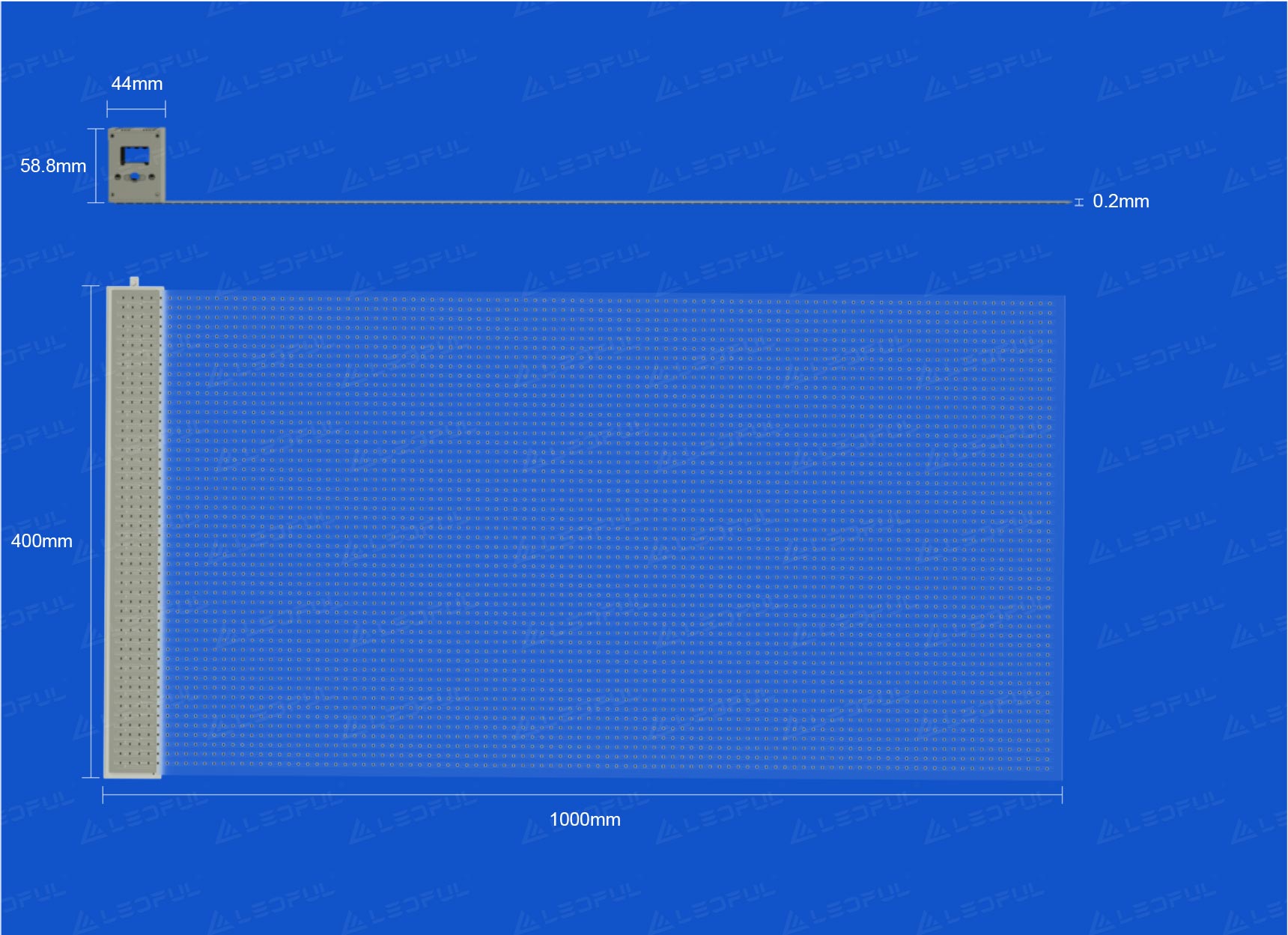

Panel Dimension	1000x320mm	1000x400mm	1000x400mm	1000x400mm	1000x400mm
Panel Resolution	200x64	160x64	125x50	100x40	50x20
Pixel density (point/ m²)	40000	25600	15625	10000	2500
Cabinet Material	Soft PET	Soft PET	Soft PET	Soft PET	Soft PET
Permeability	80%	85%	90%	95%	97%
Brightness (nits)	2000/4000	2000/4000	2000/4000	2000/4000	2000/4000
Power Con.(w㎡)(Max /Avg)	500W/170W	500W/170W	500W/170W	500W/170W	500W/170W
Weight	3kg/㎡
Brightness/ chrominance uniformity	≥97％
Life Span at 50% brightness	100.000H
Breakpoint continuation	Support
Bending installation	Support
Operating temperature	－30℃~55℃
Grey Scale (bit)	14bits
Viewing Angle (H/V)	140°/140°
Input Voltage (AC)	110V/220V

* Specifications and photos are subject to change without prior notice.

Product Comparison

Flexible Transparent LED display
Adhesive Film Screen
LEDFUL A Series Advantages

Comparison of Product Features

Product Features	LEDFUL A SERIES	Others
Module Width	400mm	240mm
Screen Thickness	2.0mm	3.0mm
Self-adhesive Screen film is self-adhesive,adhesive gets tighter over time,prevent falling off or bubbling	√	X
UV Resistance UV resistance test 000 hours (ensuring no yellowing phenomenon for 5 to 10 years)	√	×
Broken-point Continuingly-transferring Full series of LED models 1313、1515、2121 all support breakpoint Continuingly-transferring	Full series of LED 1313、1515、2121	2121

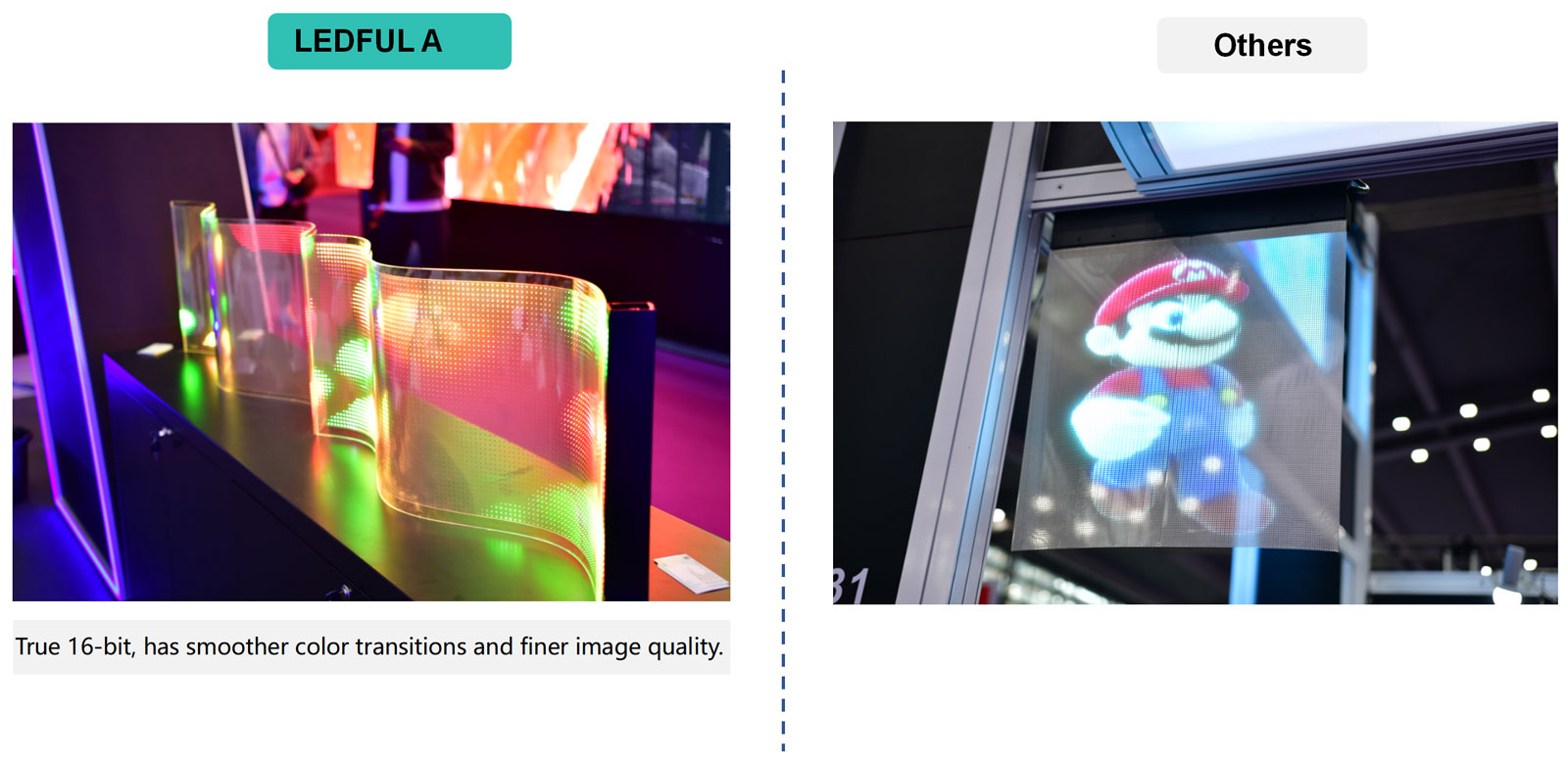

Grayscale level Smoother color transitions,finer image quality	True 16Bit	14Bit
LED Gold Wire Package High reliability,more stable	√	×Alloy
Flame retardant Flame retardant V1 Level	√	×

Comparison of Product Sizes

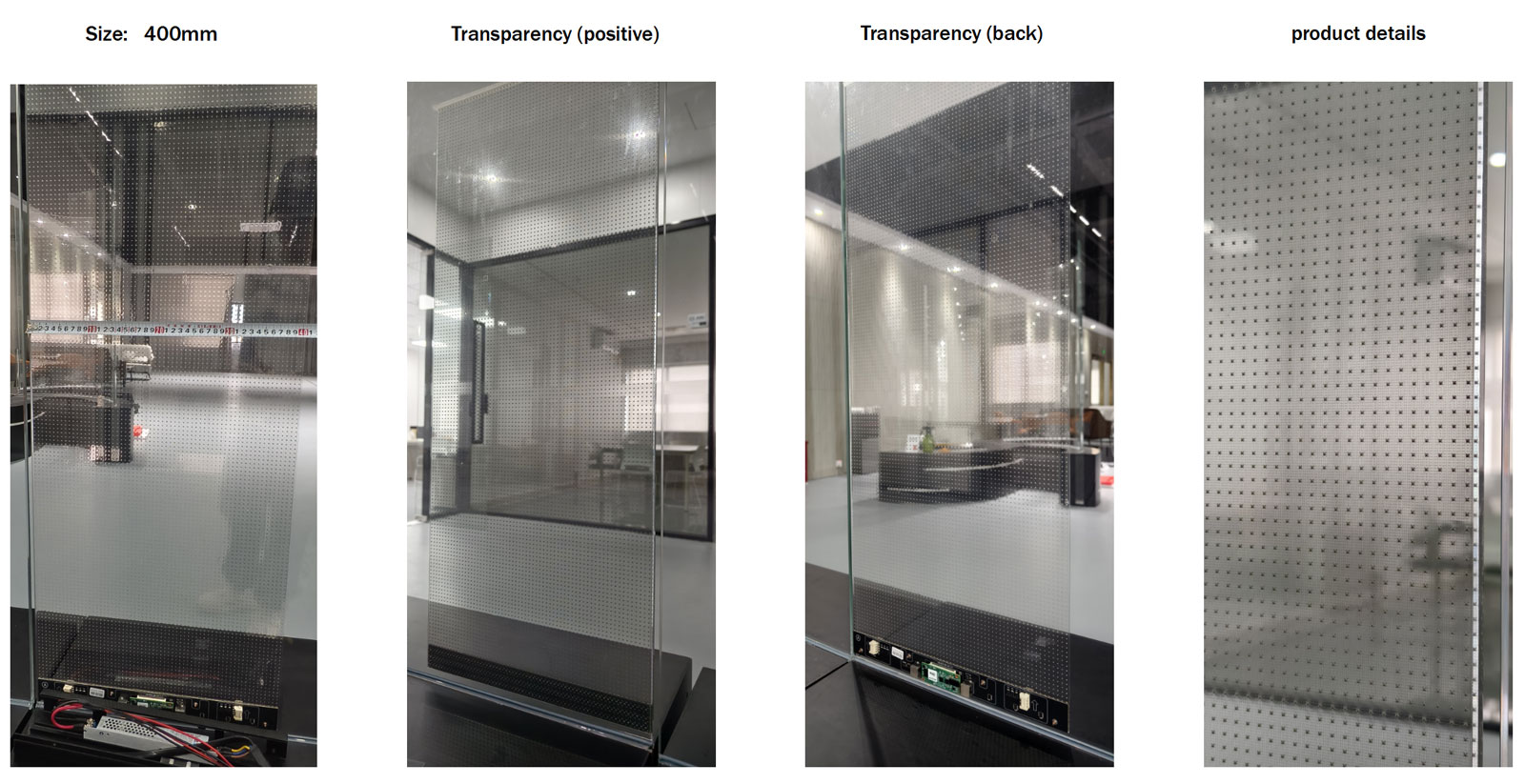

LEDFUL A Series

Comparison of Product Sizes

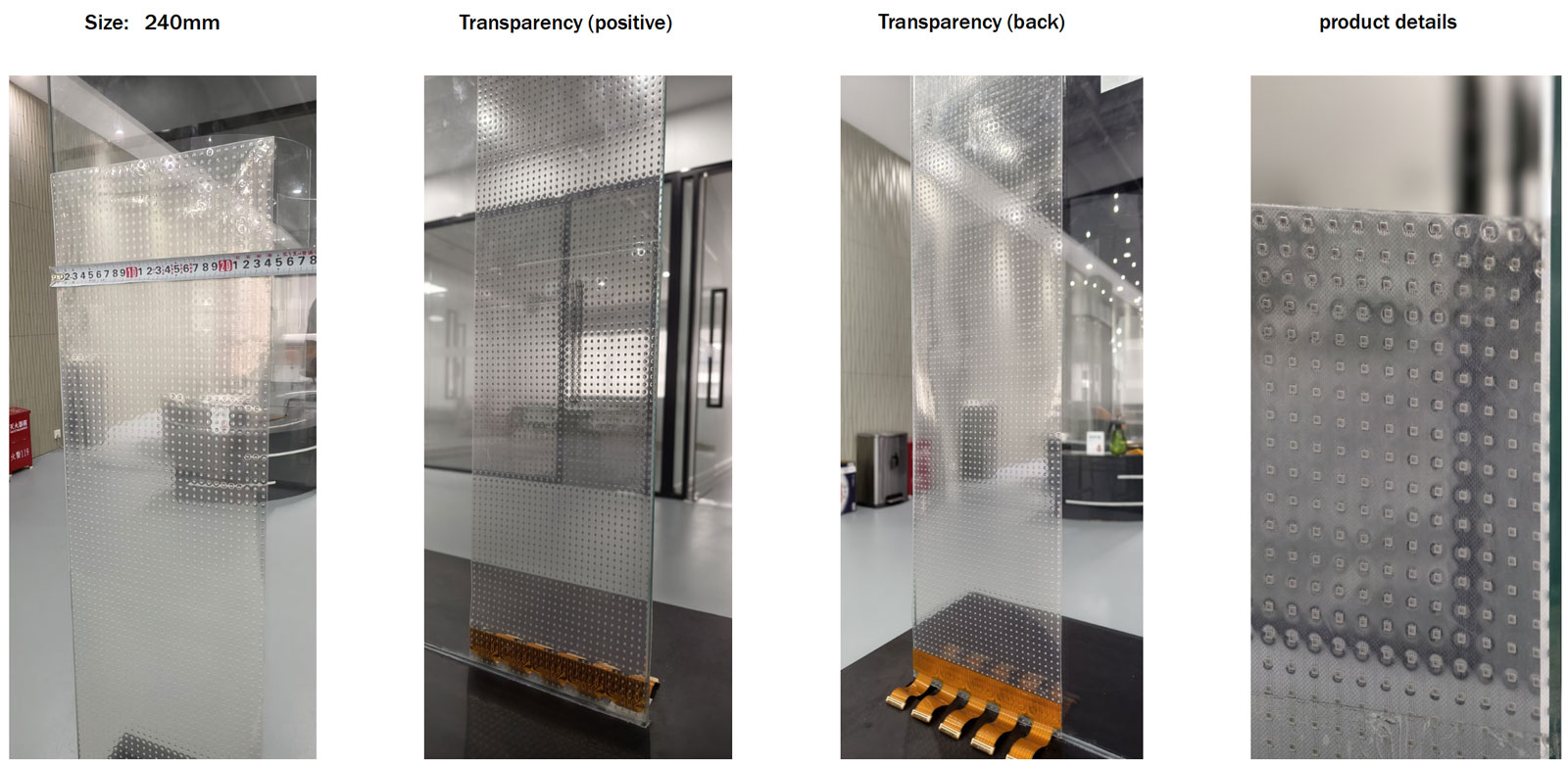

Others LED Film Screen

Comparison of Product Sizes

Others LED Film Screen

Comparison of Product Sizes

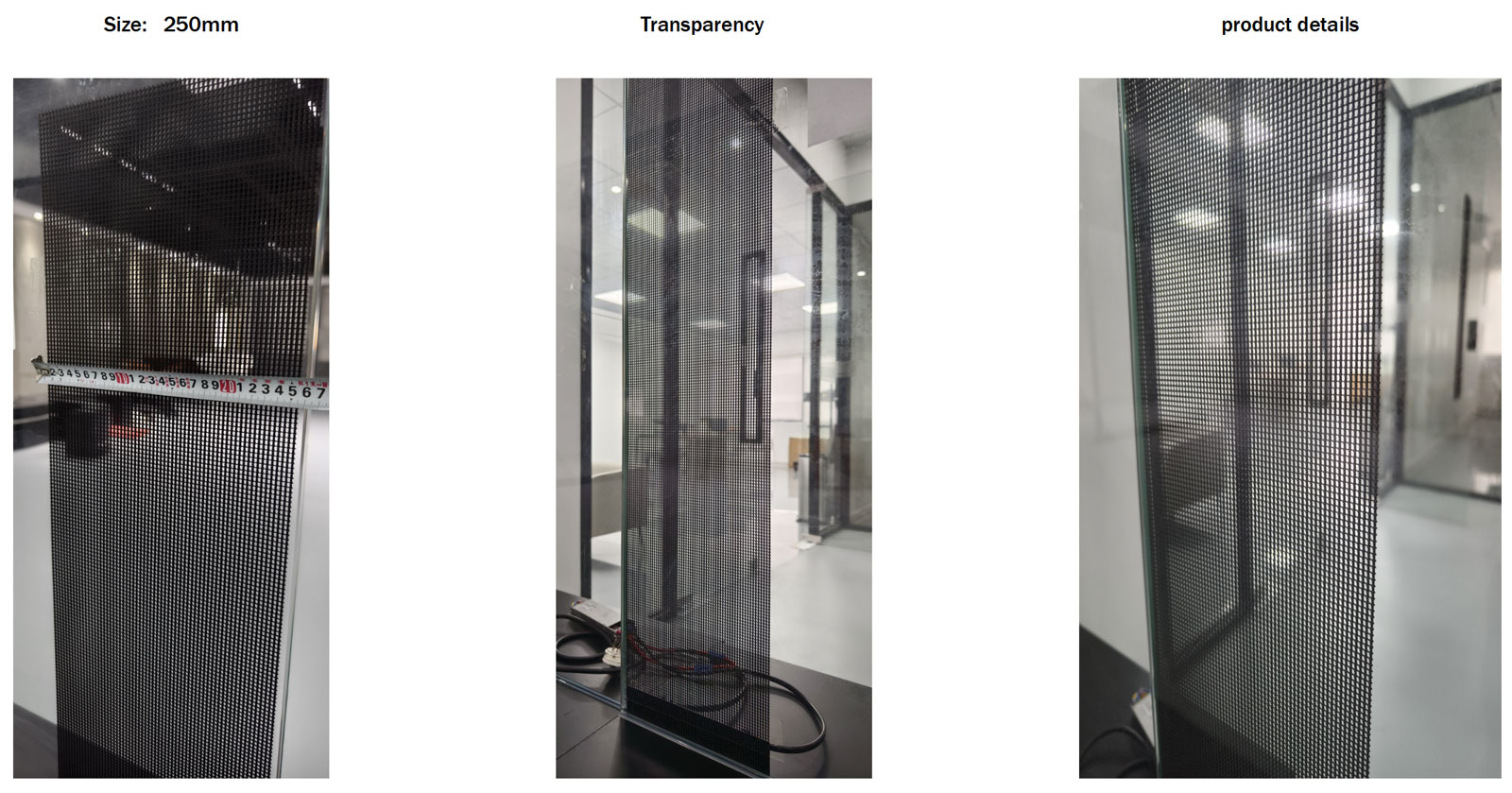

LED Holographic Screen

Comparison of Product Sizes

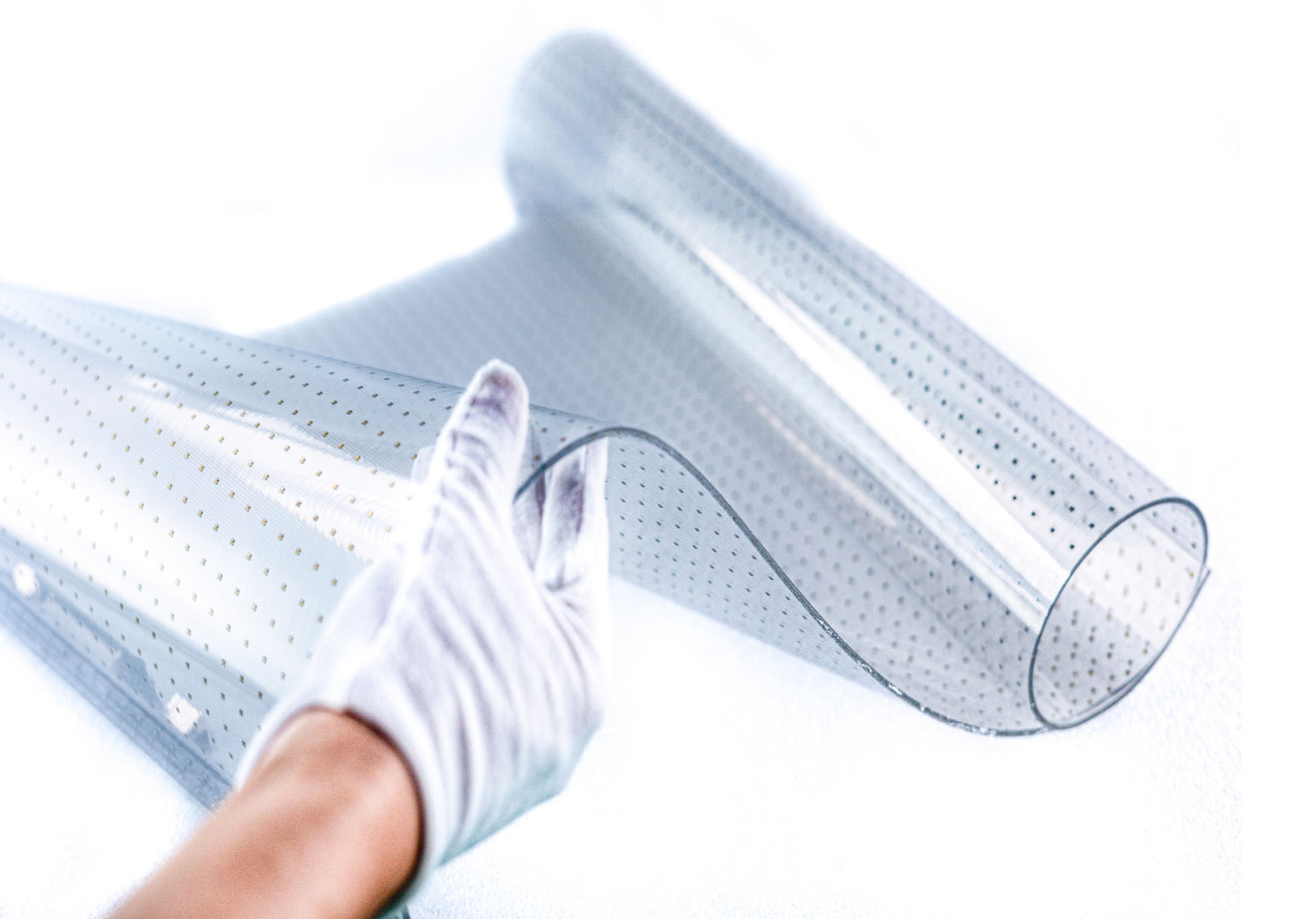

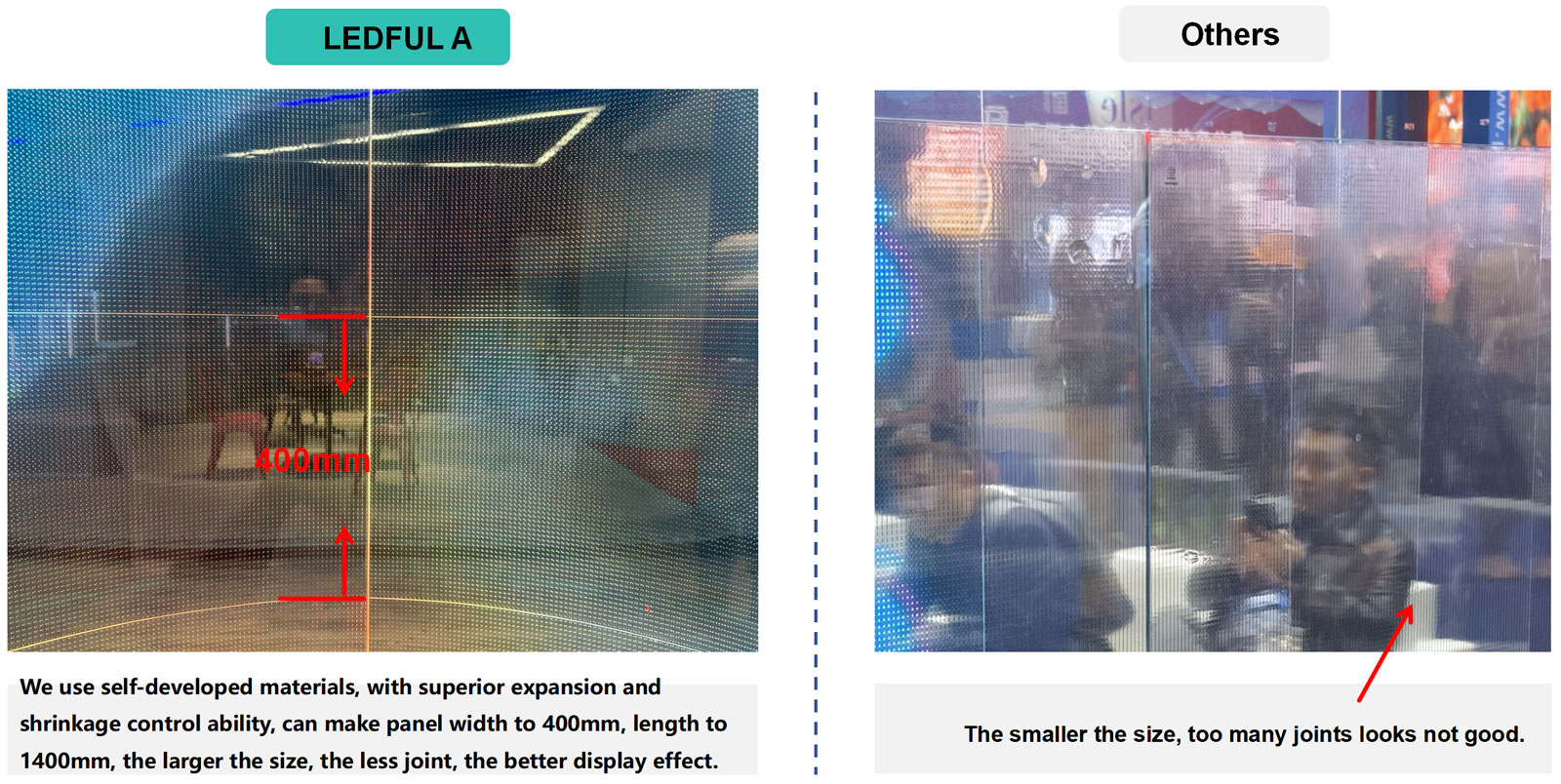

We use self-developed materials, with superior expansion and shrinkage control ability, can make panel width to 400mm, length to 1400mm, the larger the size, the less joint, the better display effect.

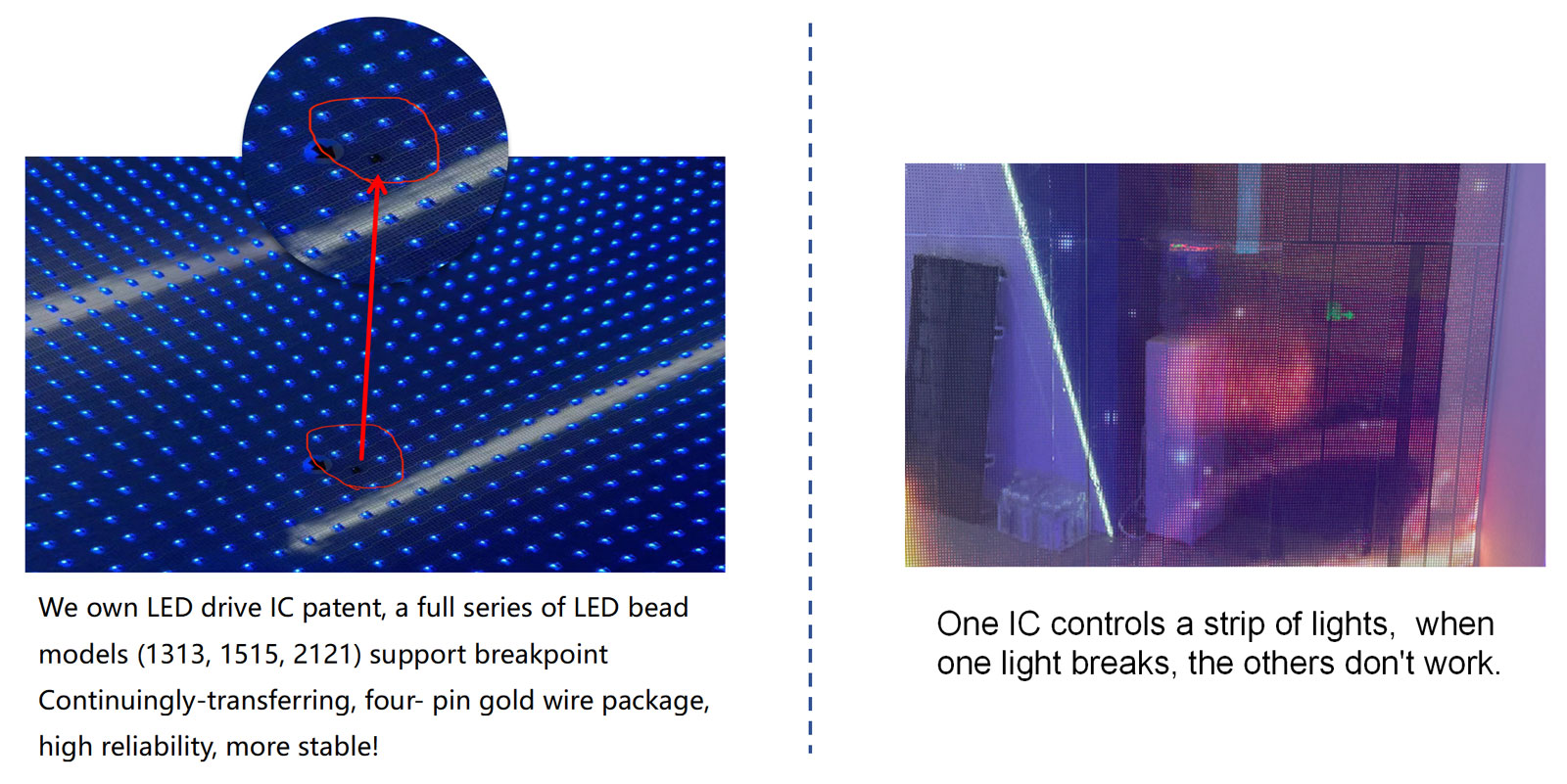

Comparison of Faulty beads

We own LED drive IC patent, a full series of LED bead models (1313, 1515, 2121) support breakpoint Continuingly-transferring, four- pin gold wire package, high reliability, more stable!

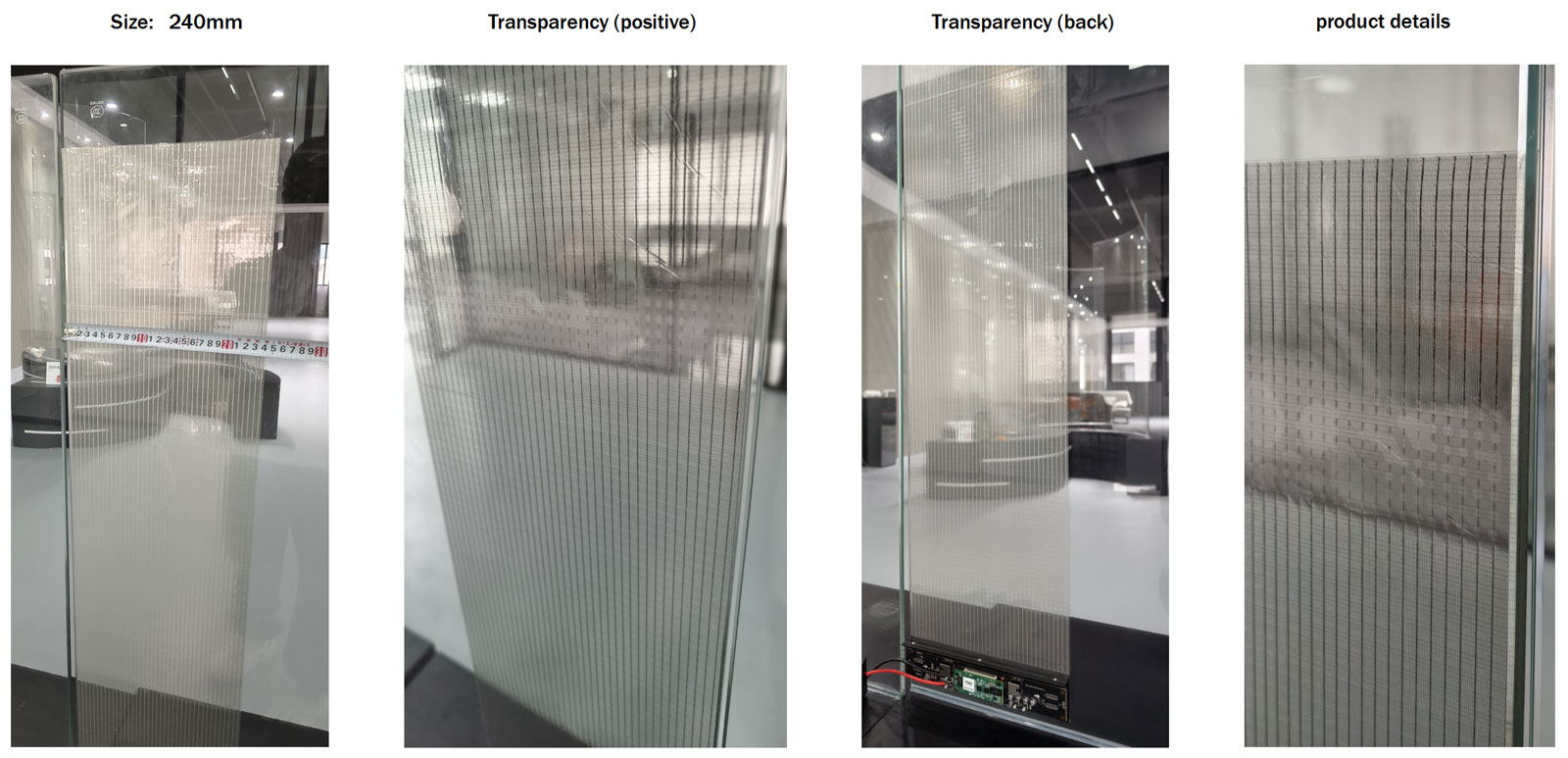

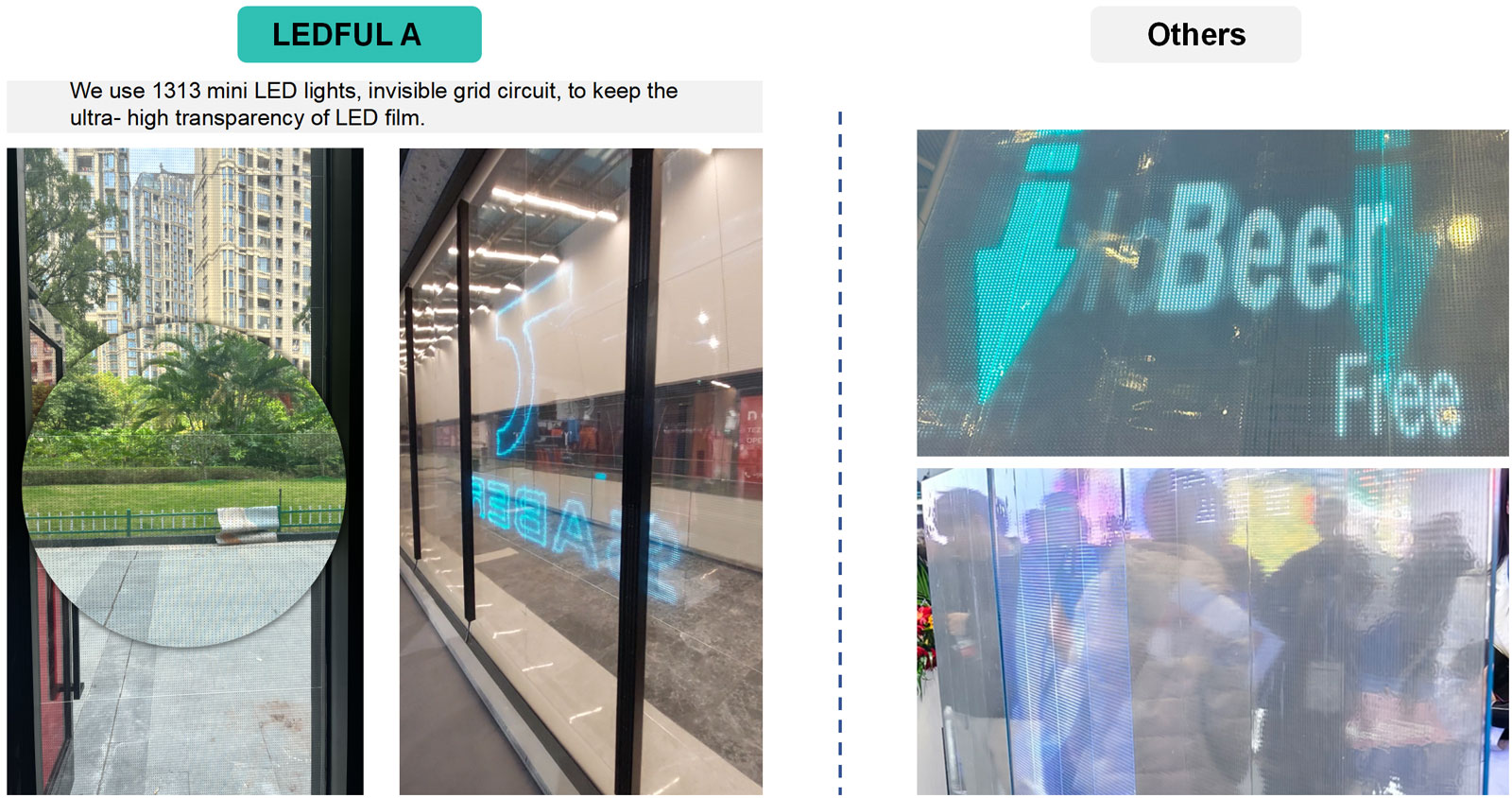

Comparison of Product Transparency

We use 1313 mini LED lights, invisible grid circuit, to keep the ultra- high transparency of LED film.

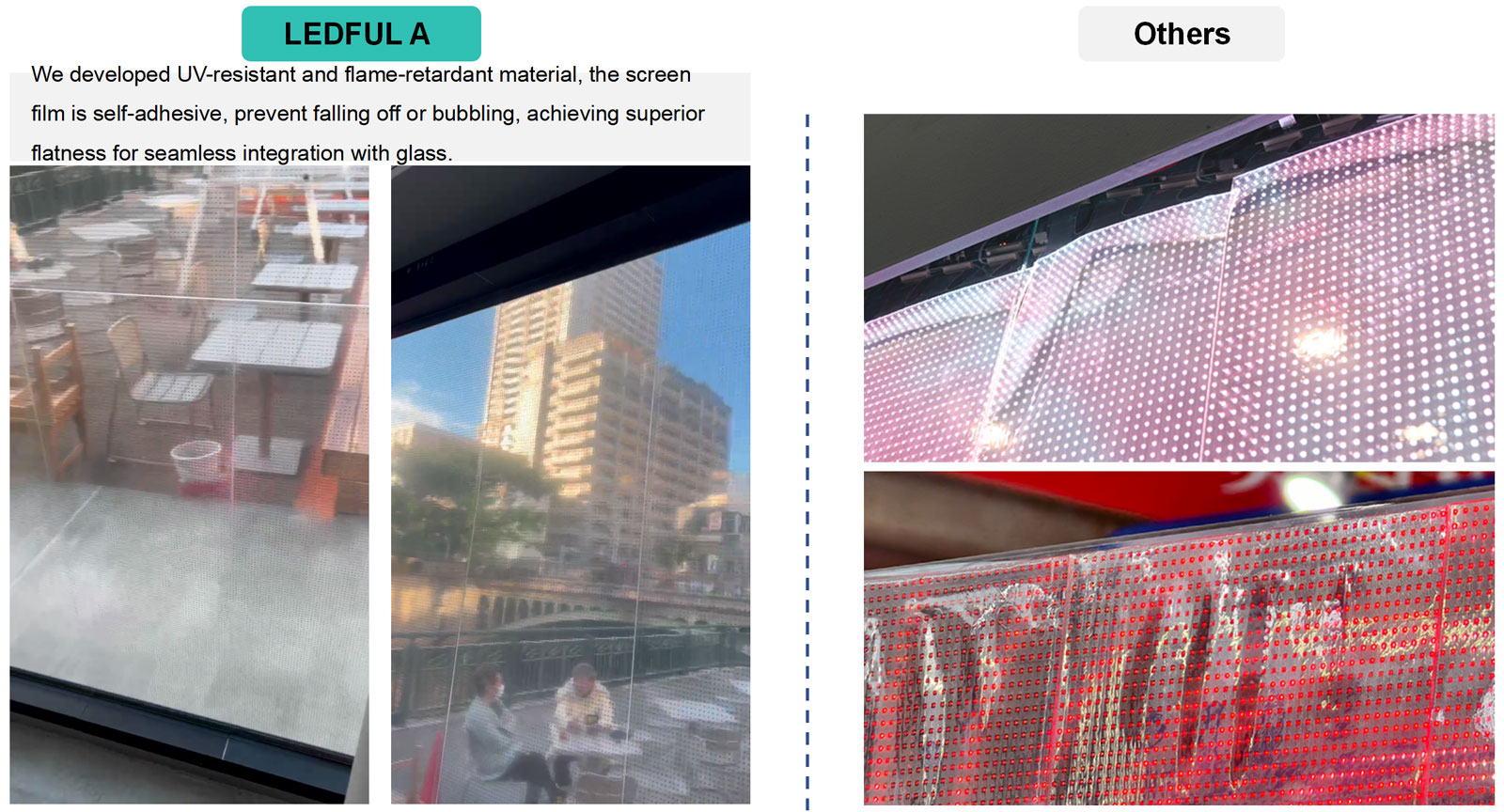

Comparison of Product Flatness

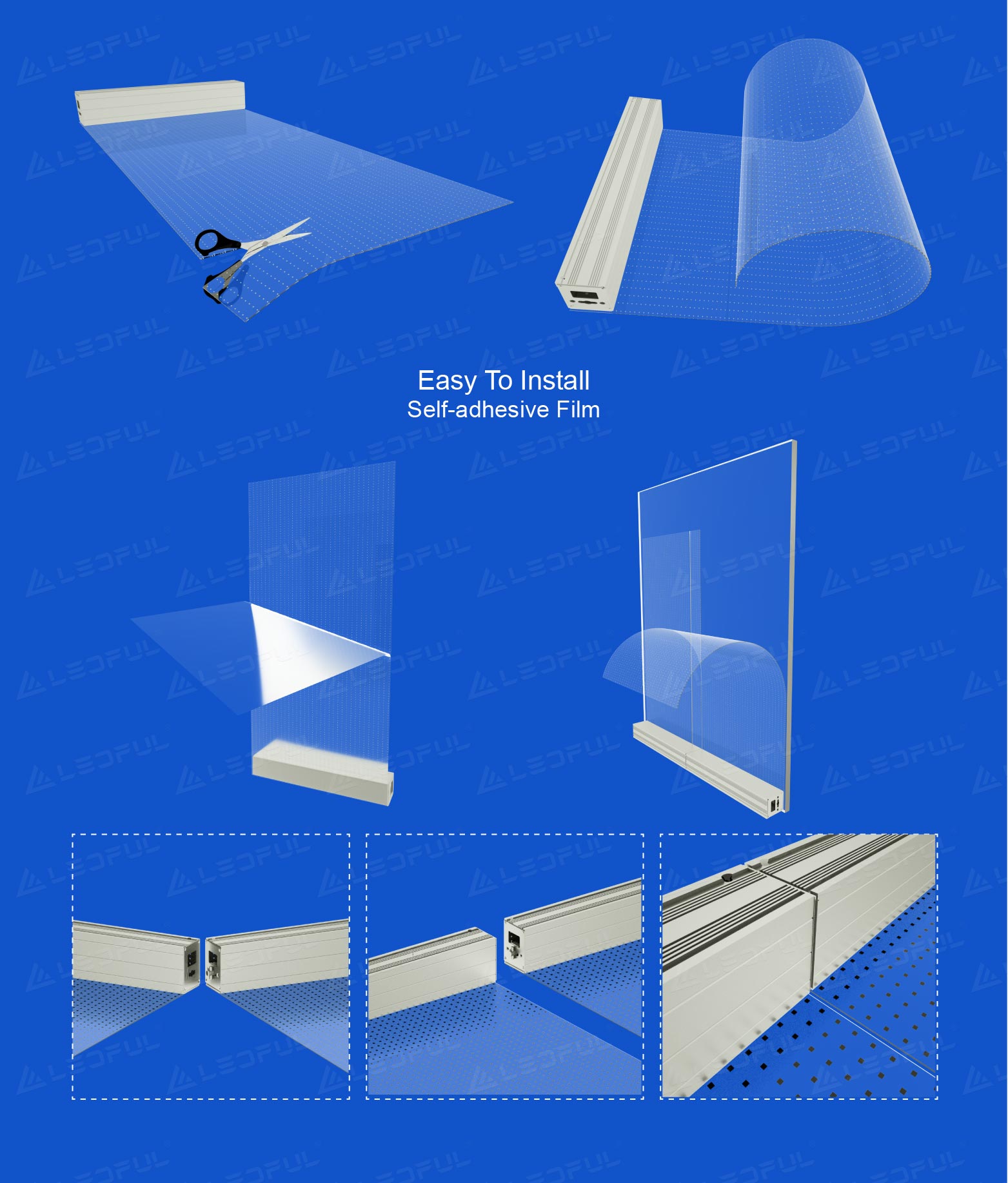

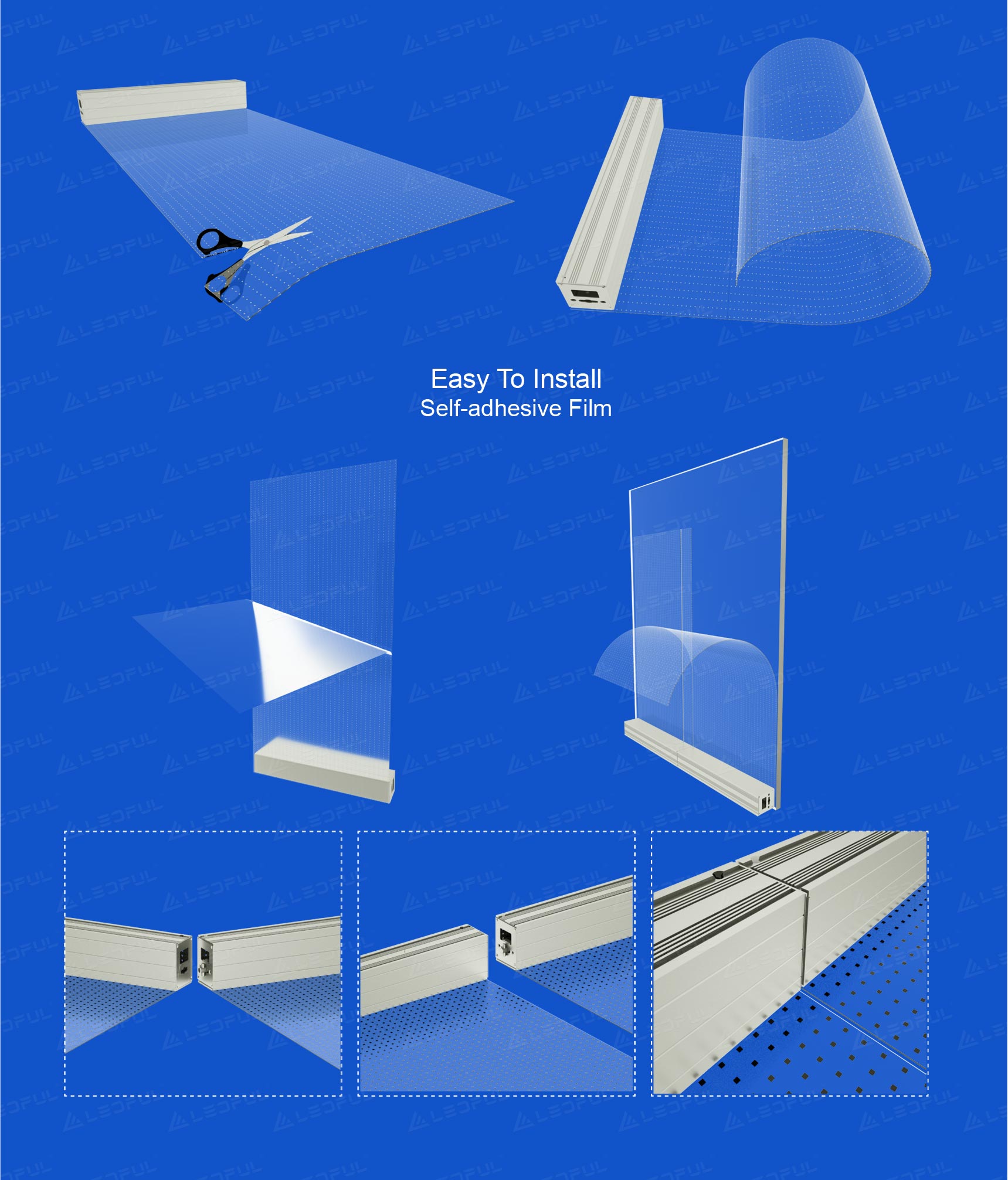

We developed UV-resistant and flame-retardant material, the screen film is self-adhesive, prevent falling off or bubbling, achieving superior flatness for seamless integration with glass.
