XRL Series

XR Studio Solution

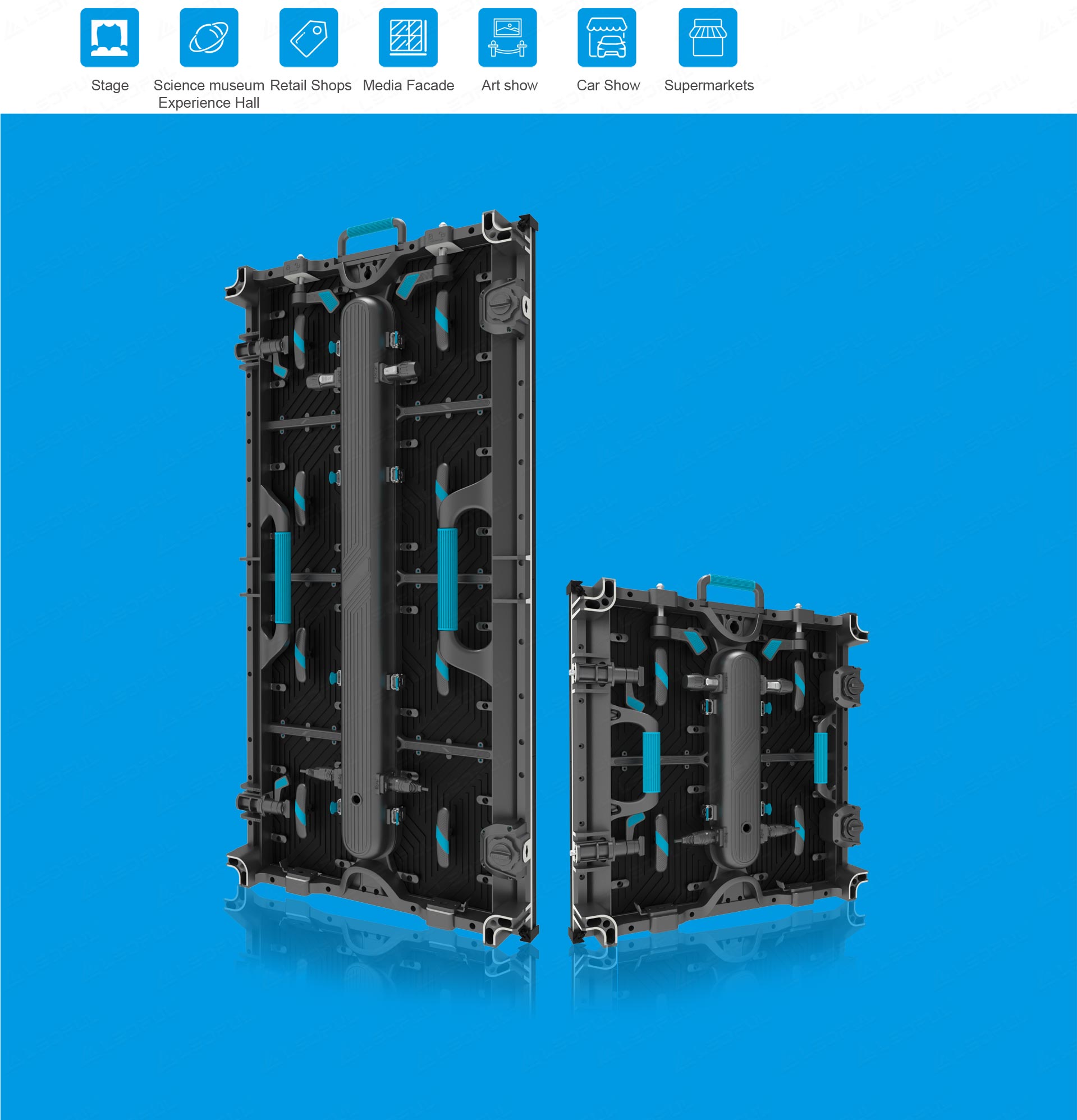

Applications
Applications
Specification
Model XRL1.95 XRL2.3 XRL2.6
Pixel Pitch(mm) 1.95 2.315 2.6
Pixel Matrix Per Sq.m 262,144 186,624 147,456
Pixel Configuration SMD1515 SMD1515 SMD1515
Brightness (cd/㎡) 1,500 1,500 1,500
Scan 8S 9S 8S
Module Dimension 250x250mm 250x250mm 250x250mm
Module Resolution 128x128 108x108 96x96
Cabinet Dimension 500x500x80mm/500x1000x80mm 500x500x80mm/500x1000x80mm 500x500x80mm/500x1000x80mm
Cabinet Resolution 256x256/256x513 216x216/216x432 192x192/192x385
Cabinet Material Die-casting Aluminium Die-casting Aluminium Die-casting Aluminium
Cabinet Weight 500x500mm---8KG/500x1000mm---16KG 500x500mm---8KG/500x1000mm---16KG 500x500mm---8KG/500x1000mm---16KG
Power Con.(W/㎡) (Max / Avg) 920w/200-300W 920w/200-300W 920w/200-300W
Service Access Front / Rear Front / Rear Front / Rear
Refresh Rate (HZ) 7680HZ 7680HZ 7680HZ
Color gamut range (DCI-P3 percentage) 85% 85% 85%
Grey Scale (bit) 22bit 22bit 22bit
Viewing Angle (H/V) 160°/160° 160°/160° 160°/160°
IP Rate IP31 IP31 IP31
Input Voltage (AC) 110/220V 110/220V 110/220V

* Specifications and photos are subject to change without prior notice.

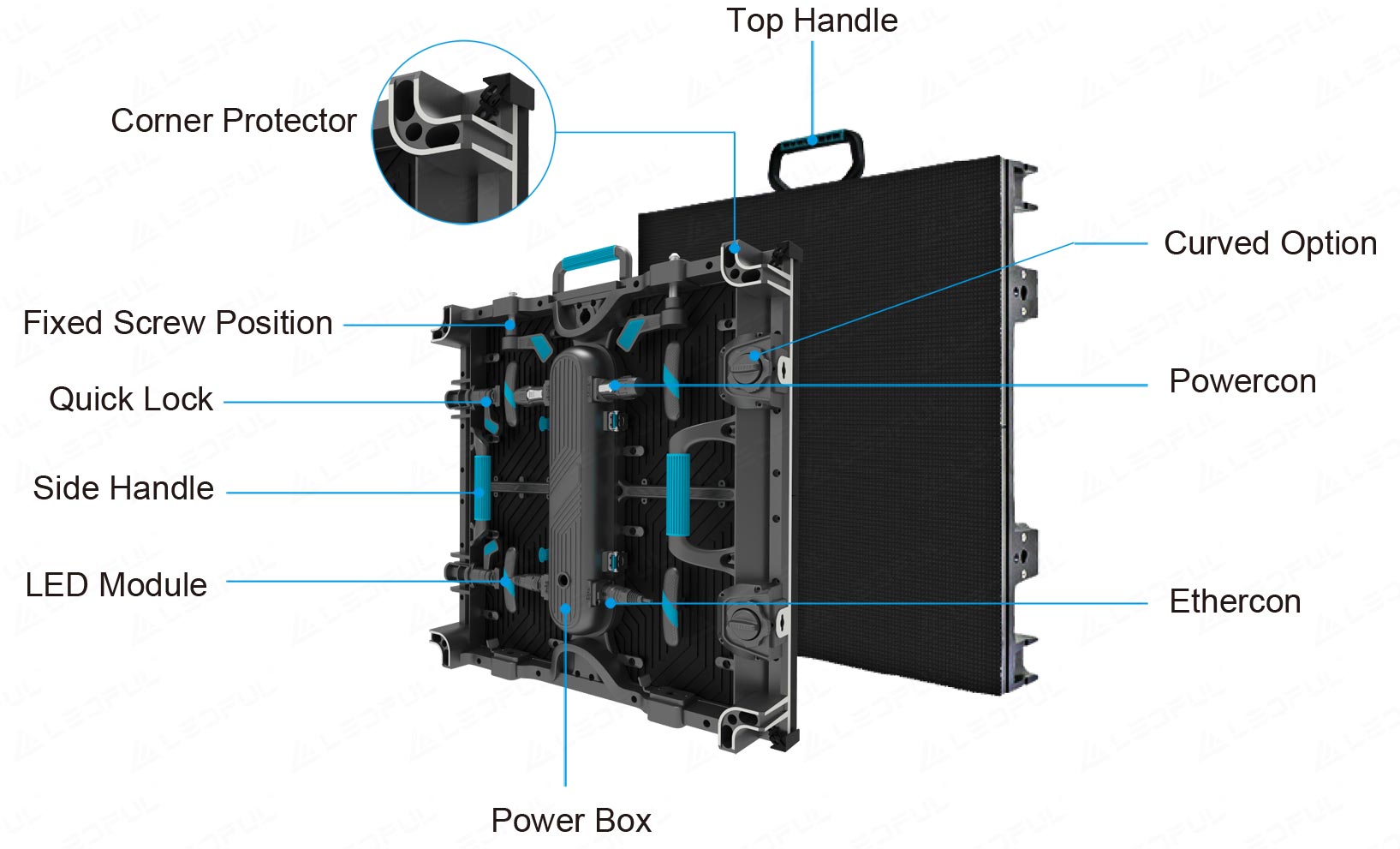

Cabinet Construction
Cabinet Construction

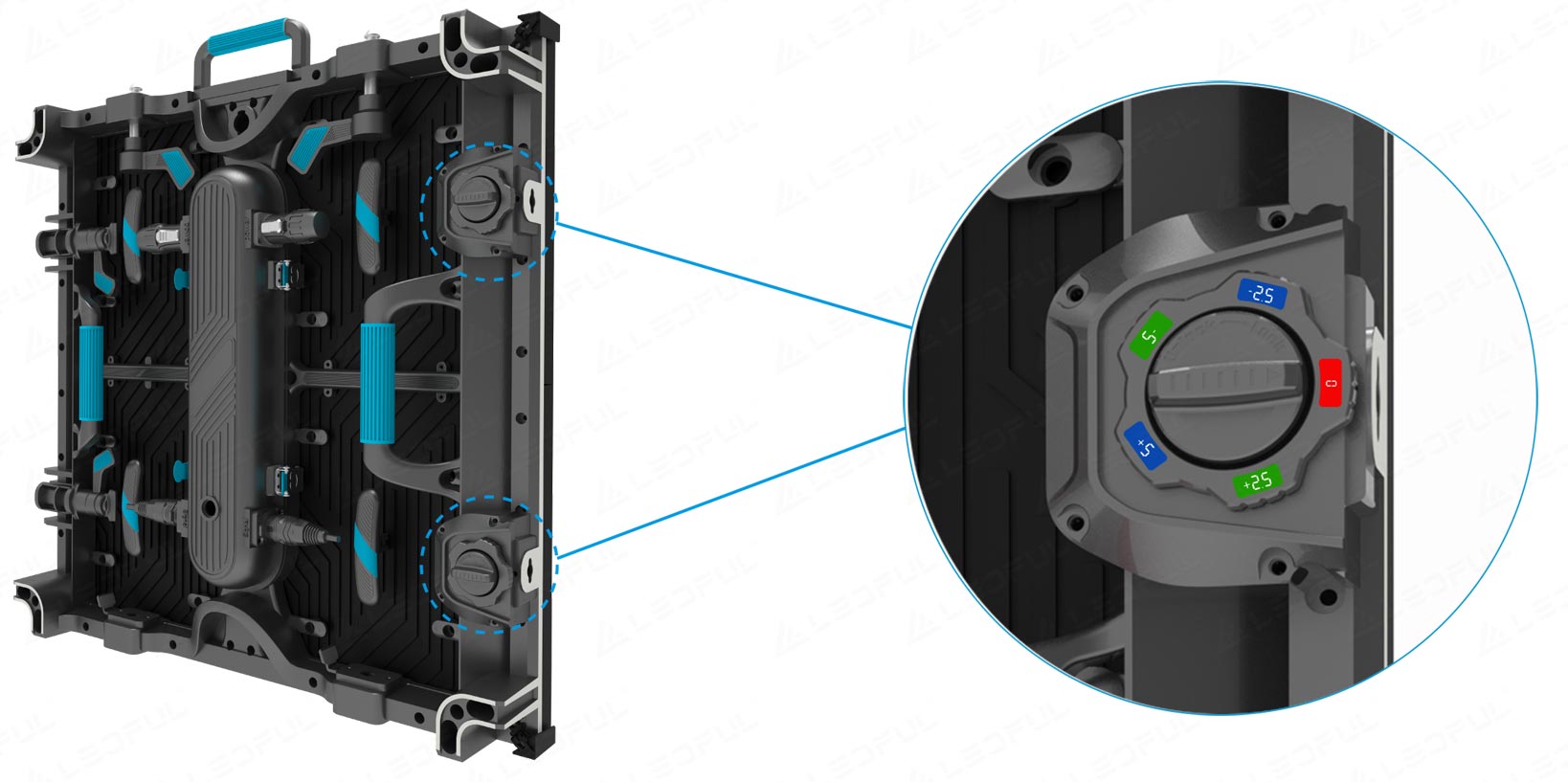

Adjustable Degree
Curved option, concave,convex and flat
Adjustable angles: -5°, -2.5°, 0°, +2.5°, +5°
Adjustable Degree

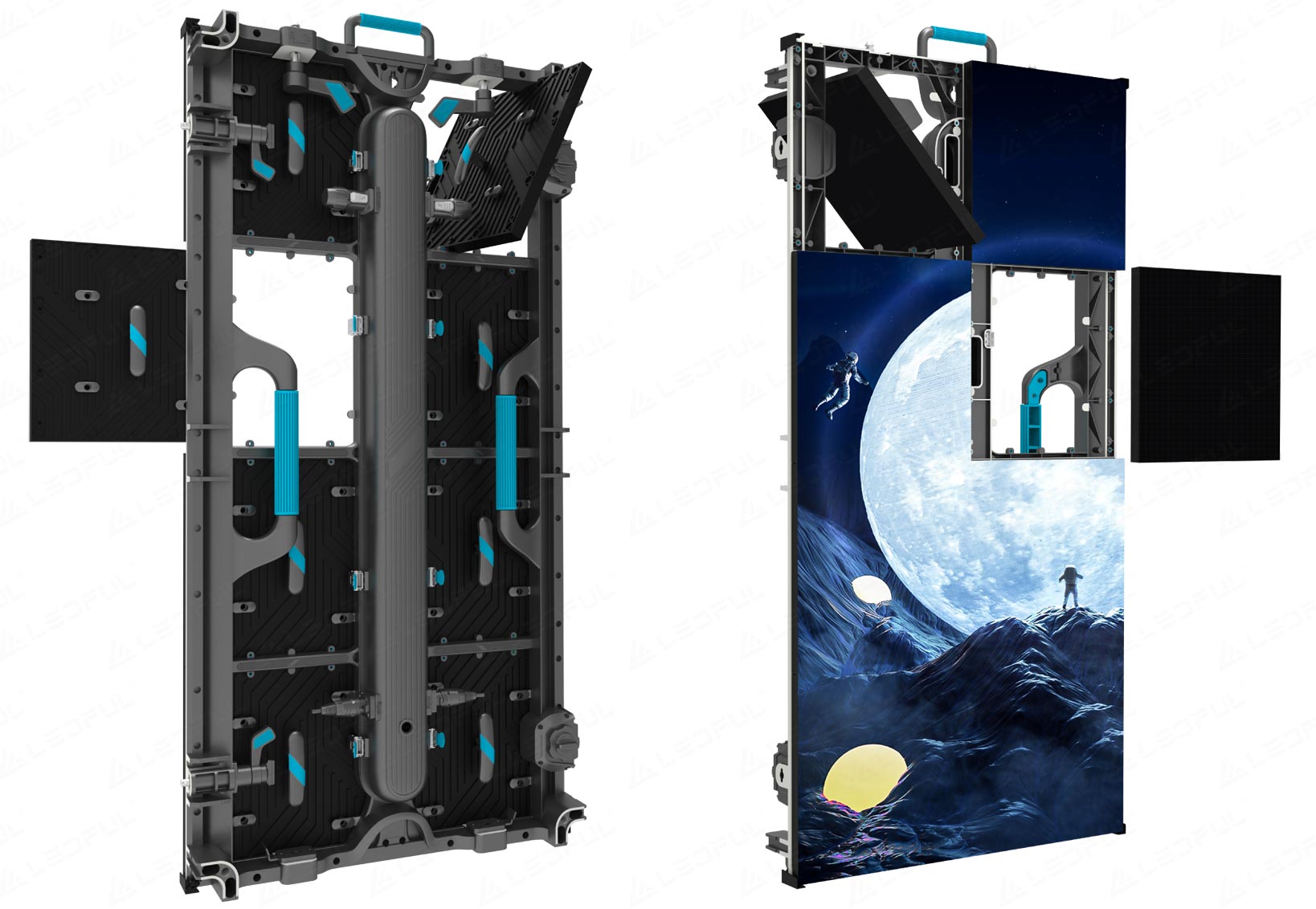

Front / Rear Maintenance
Front / Rear Maintenance

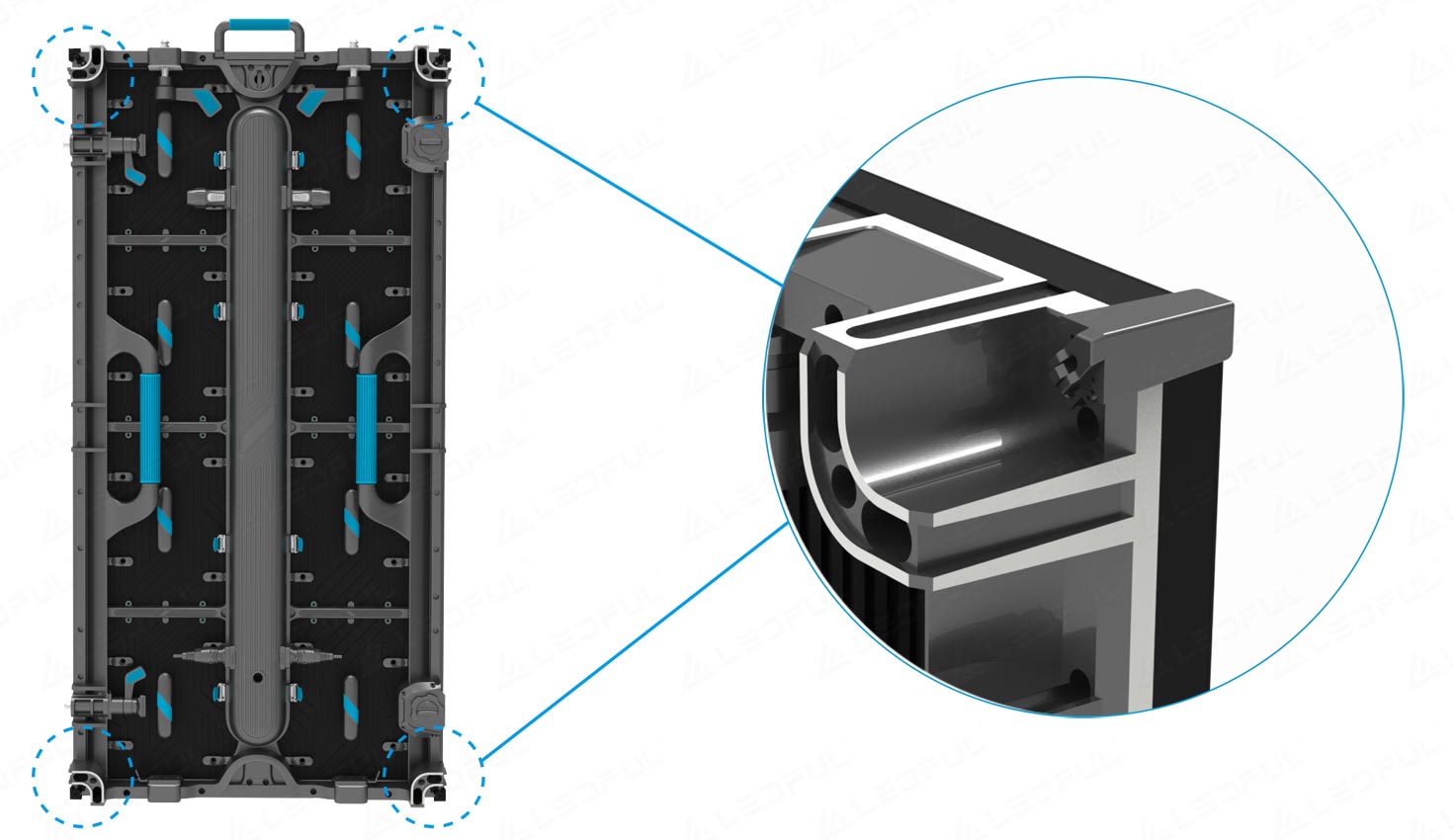

4 Corner Protectors
Cabinet with Corner Protectors, anti-collision and all-round protection
4 Corner Protectors

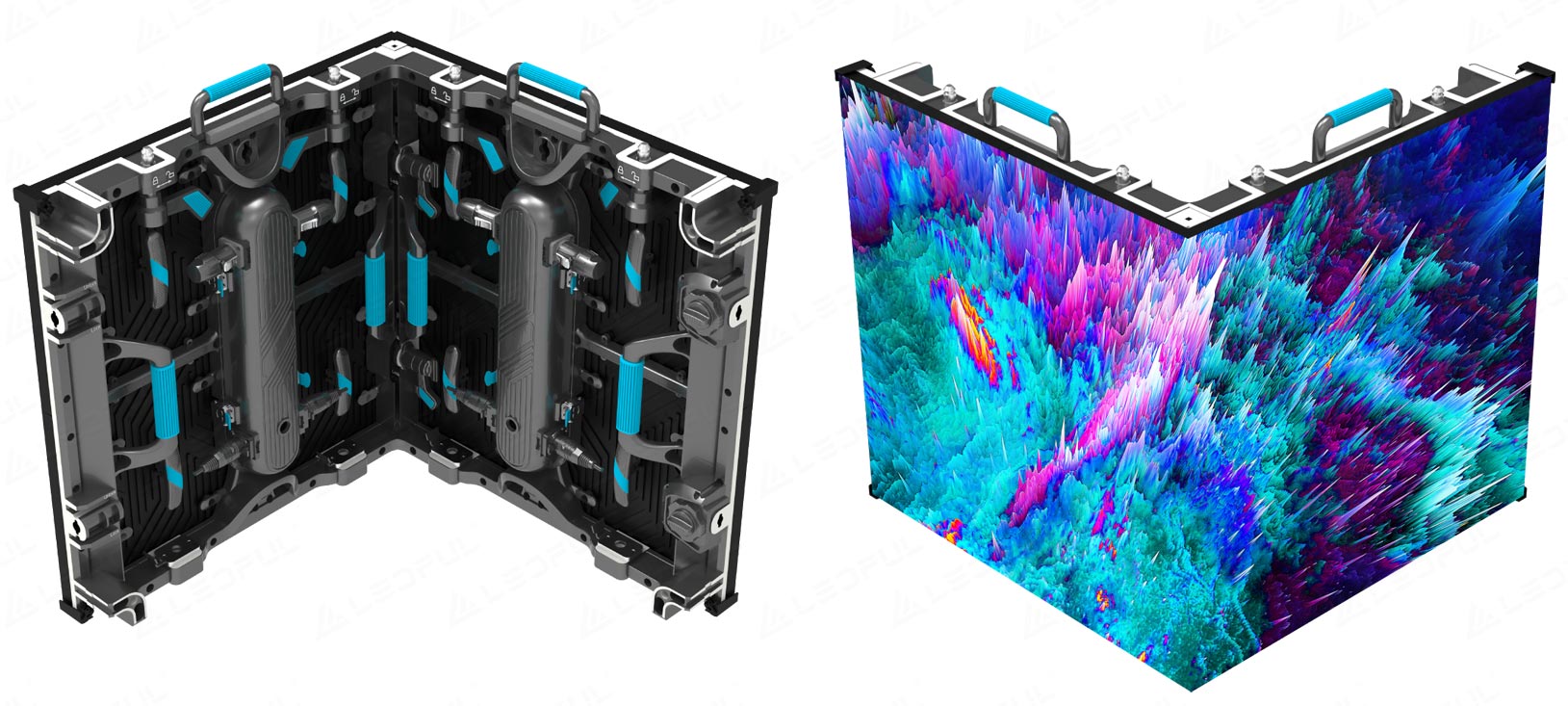

Beveled Option
Beveled Option

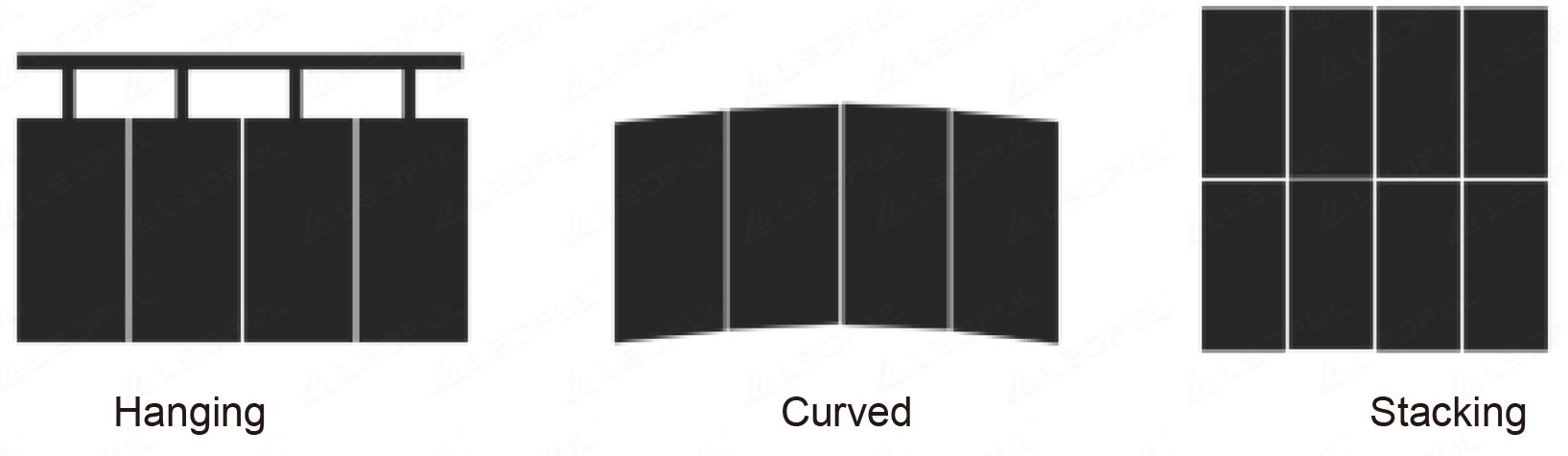

Multiple Installation
Multiple Installation

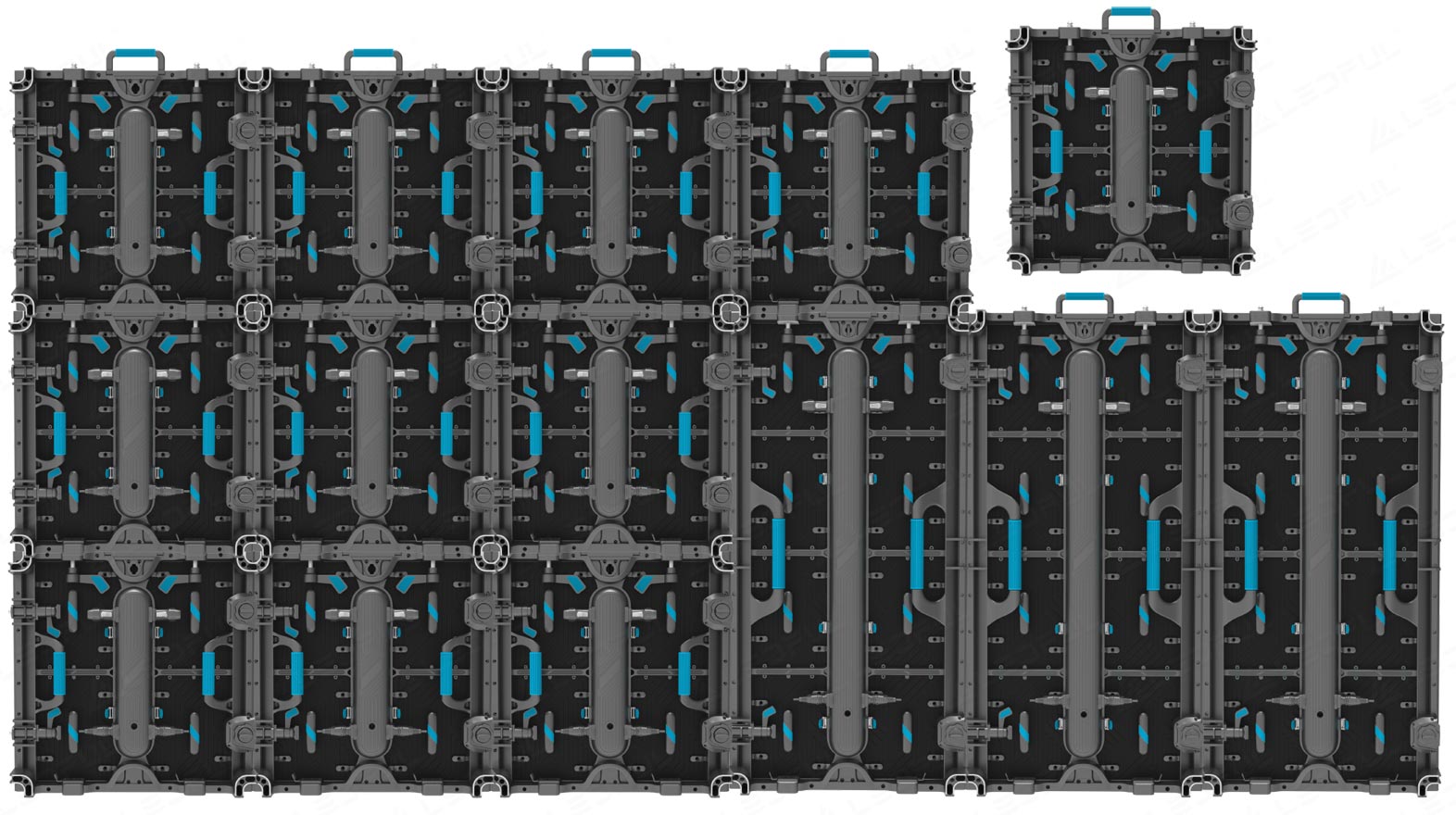

Seamless Connection
500x500mm &500x1000mm cabinets can work together to meet screen size requirements
Seamless Connection
Color Enhancement
Unique color enhancement technology ensures that each color is clearly visible, making the visual performance more realistic.
Color Enhancement

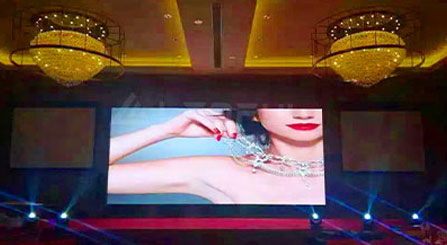

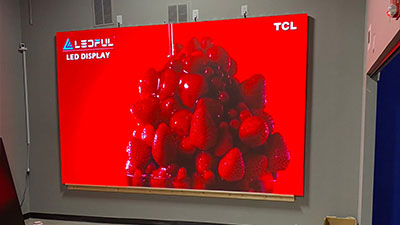

Typical Projects
Typical Projects
Features
Features
