XR PRO Series

Born for XR Solution

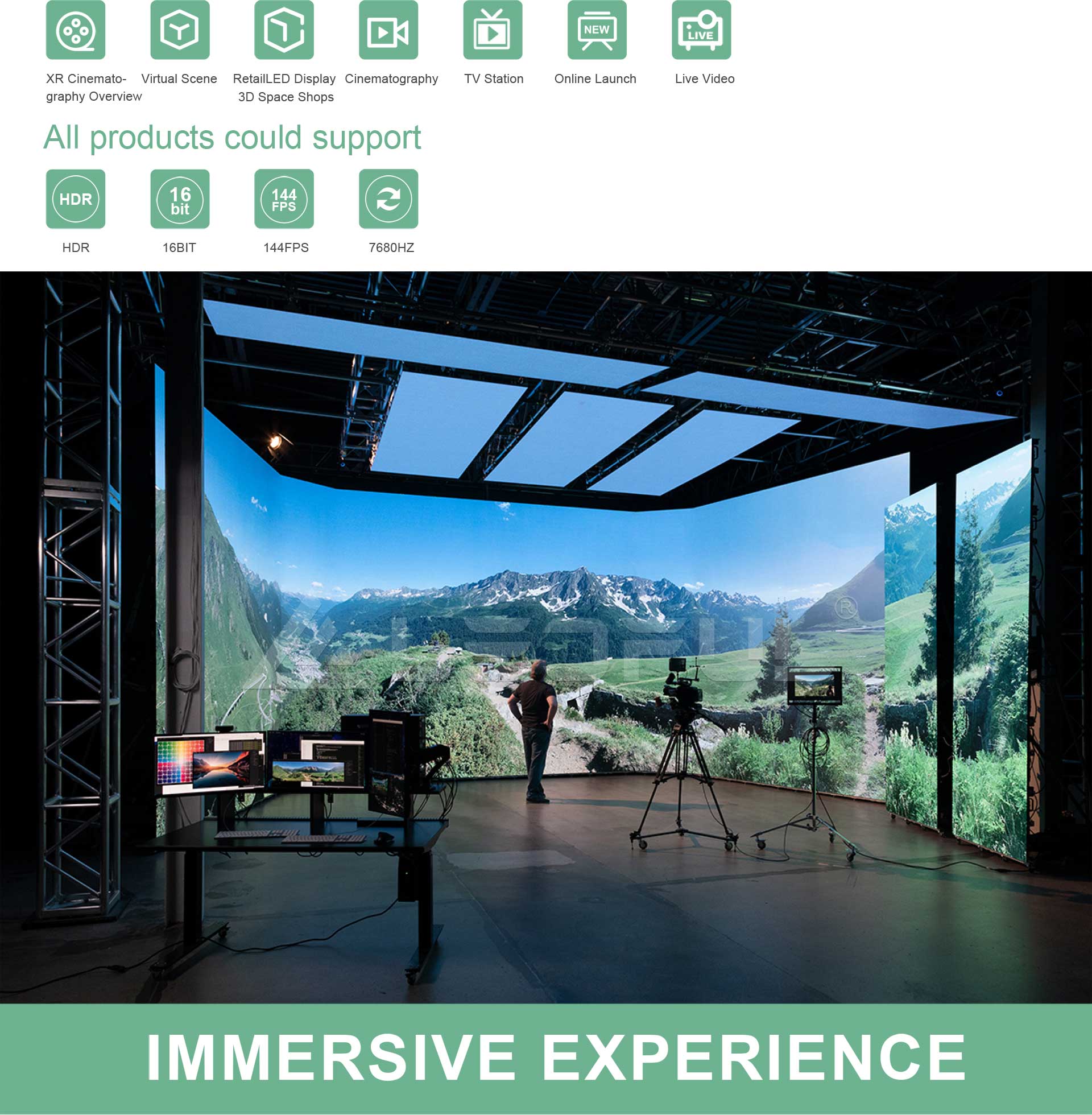

Applications

Specification

Item	XR2.6 Pro
Product	Solution-1	Solution-2	Solution-3	Solution-4
Application	Professional Studio	Professional Studio	Great XR Solution	Standard XR Solution
Pixel Pitch	2.6mm	2.6mm	2.6mm	2.6mm
Pixel Matrix Per Sq.m	147,456	147,456	147,456	147,456
Pixel Configuration	SMD1515	SMD1515	SMD1515	SMD1515
LED lamp	Nationstar Cooper Wire LED Lamps	Kinglight	Kinglight	Kinglight
IC	MBI5264	SM16389	MBI5264	High Refresh IC
Scan	8S	8S	32S	32S
Grey Scale	22bit	22bit	16bit	16bit
Refresh Rate	7680hz	7680hz	7680hz	3840hz
Brightness	1500nits	1500nits	900nits	900nits
Frame rate	144HZ	144HZ	50/60HZ	50/60HZ
Color gamut range DCI-P3 percentage	85%	85%	50%	50%
Receiver Card	A10SPRO	A10SPRO	A8	A5SPLUS
Module Dimension	250X250mm	250X250mm	250X250mm	250X250mm
Cabinet Dimension	500x500mm / 1.64x1.64ft	500x500mm / 1.64x1.64ft	500x500mm / 1.64x1.64ft	500x500mm / 1.64x1.64ft
Cabinet Material	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum	Die-Casting Aluminum
Cabinet Weight	7.5kg	7.5kg	7.5kg	7.5kg
Power Con.(W/㎡) (Max / Avg)	800W/200-300W	800W/200-300W	800W/200-300W	800W/200-300W
Viewing Angle (H/V)	160°/160°	160°/160°	160°/160°	160°/160°
IP Rate	IP43	IP43	IP43	IP43
Input Voltage (AC)	110V / 240V	110V / 240V	110V / 240V	110V / 240V
Control System	Novastar MX40 + GENLOCK synchrolock	Novastar MX40 + GENLOCK synchrolock	Novastar MX40 + GENLOCK synchrolock	Novastar Video Processor

* Specifications and photos are subject to change without prior notice.

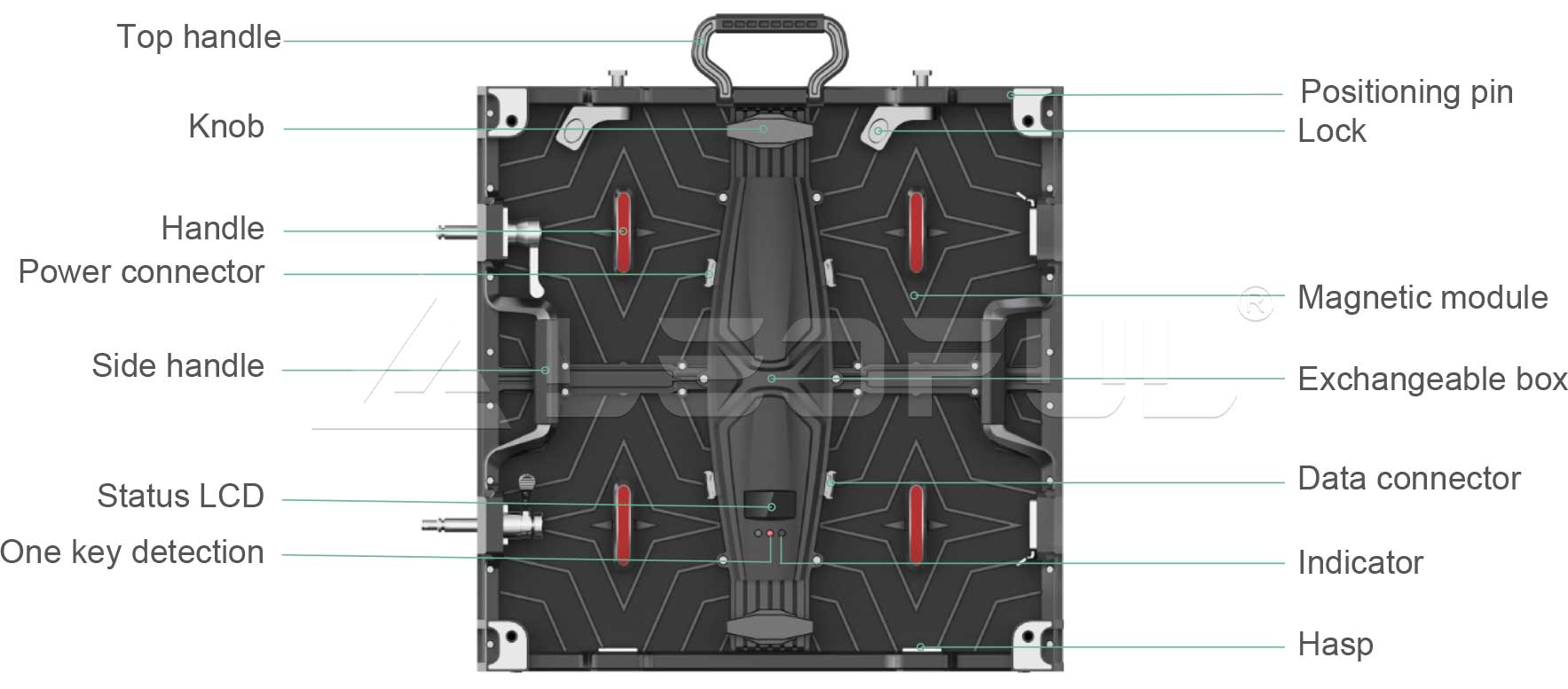

XR Pro Product

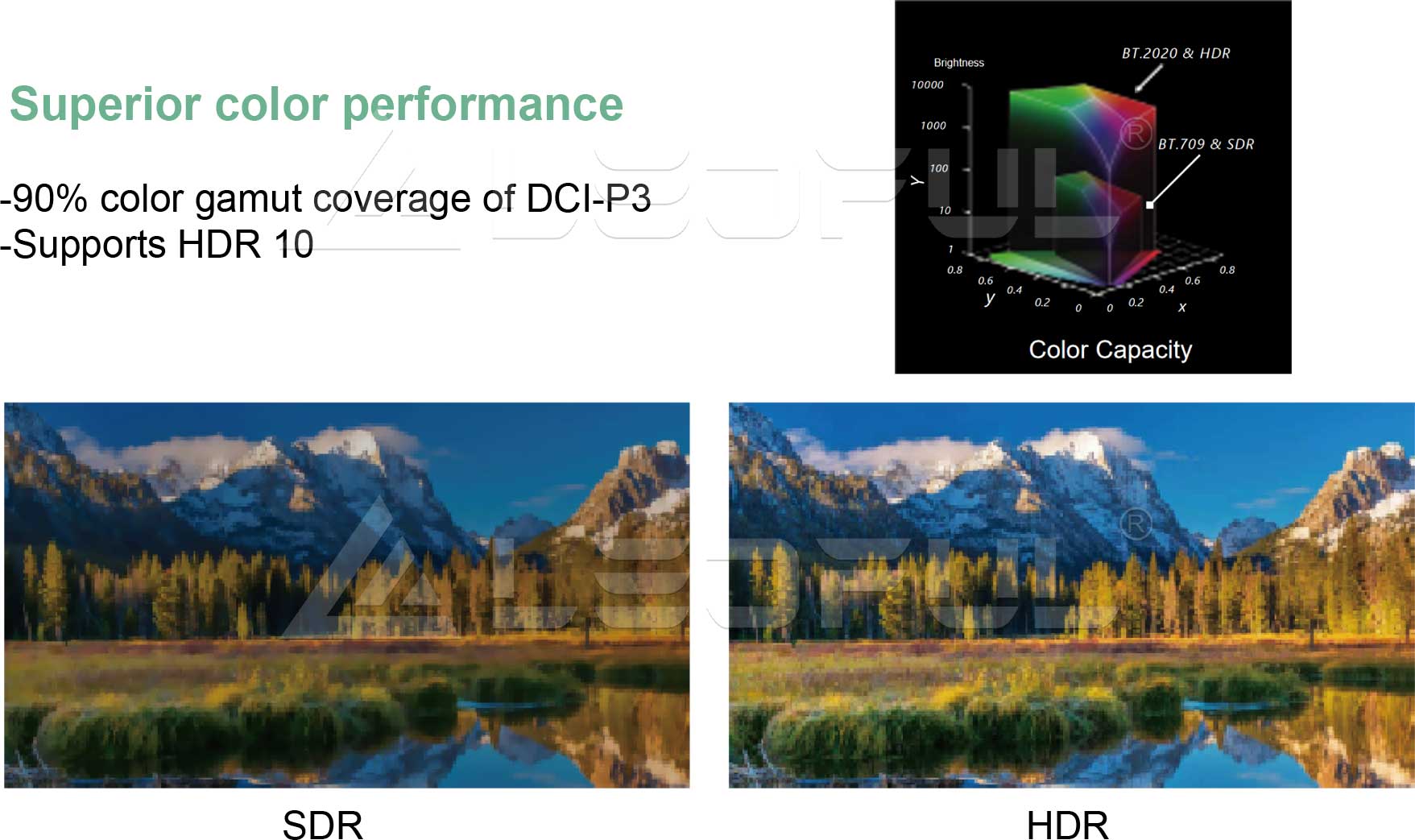

Superior color performance

High frequency frames

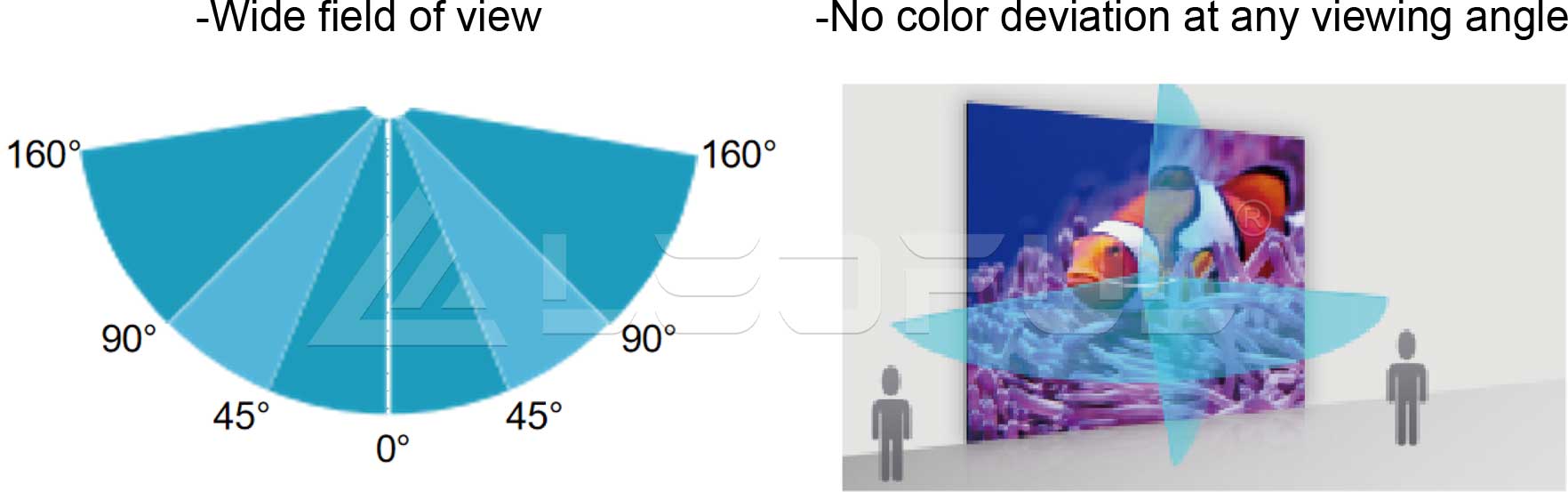

Wide angle color accuracy

High Brightness & High Grey Scale & High Refresh Rate

1500nits & 22bits & 7680Hz

-High quality with perfect performance

High Brightness & High Grey Scale & High Refresh Rate

XR Pro Solution

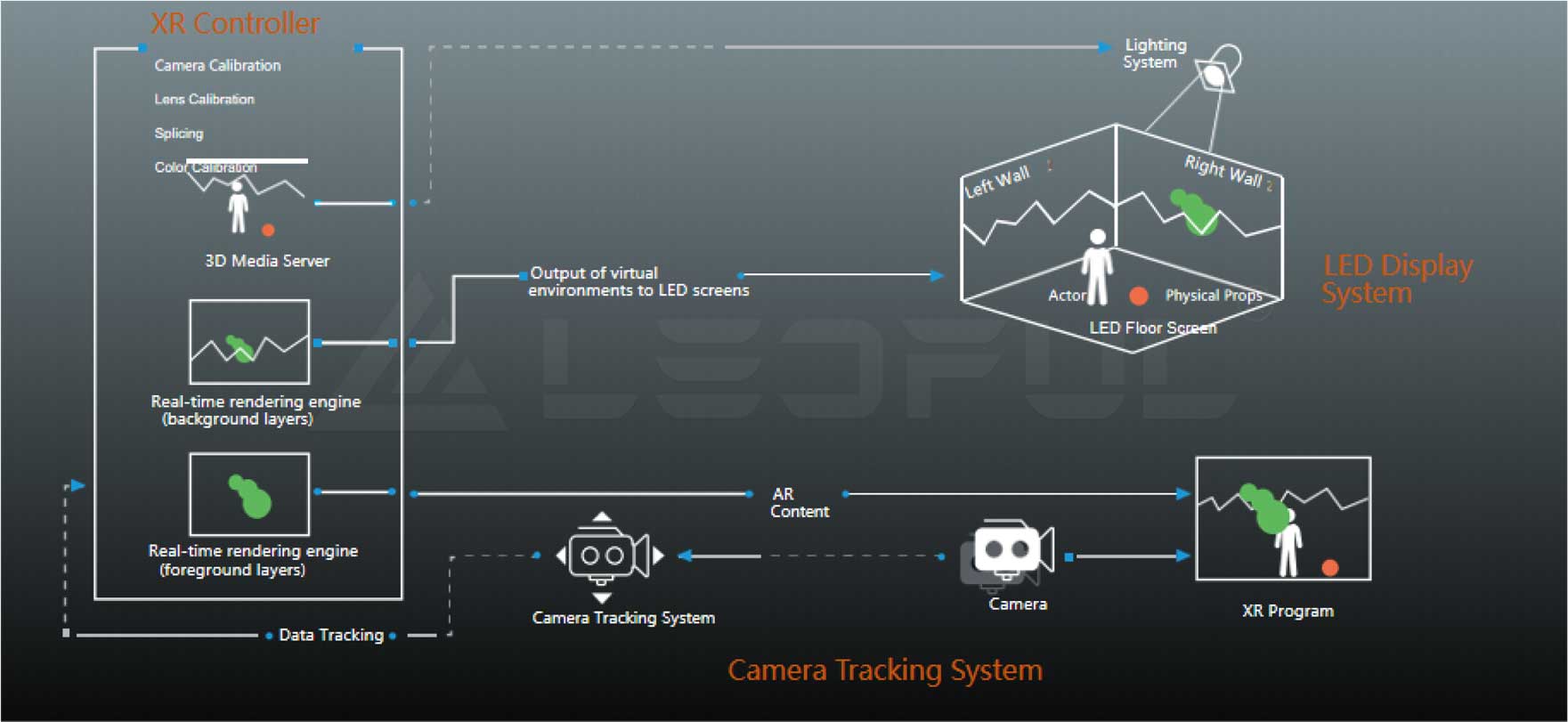

The principle of XR studio implementation
Rendering engine and control server system

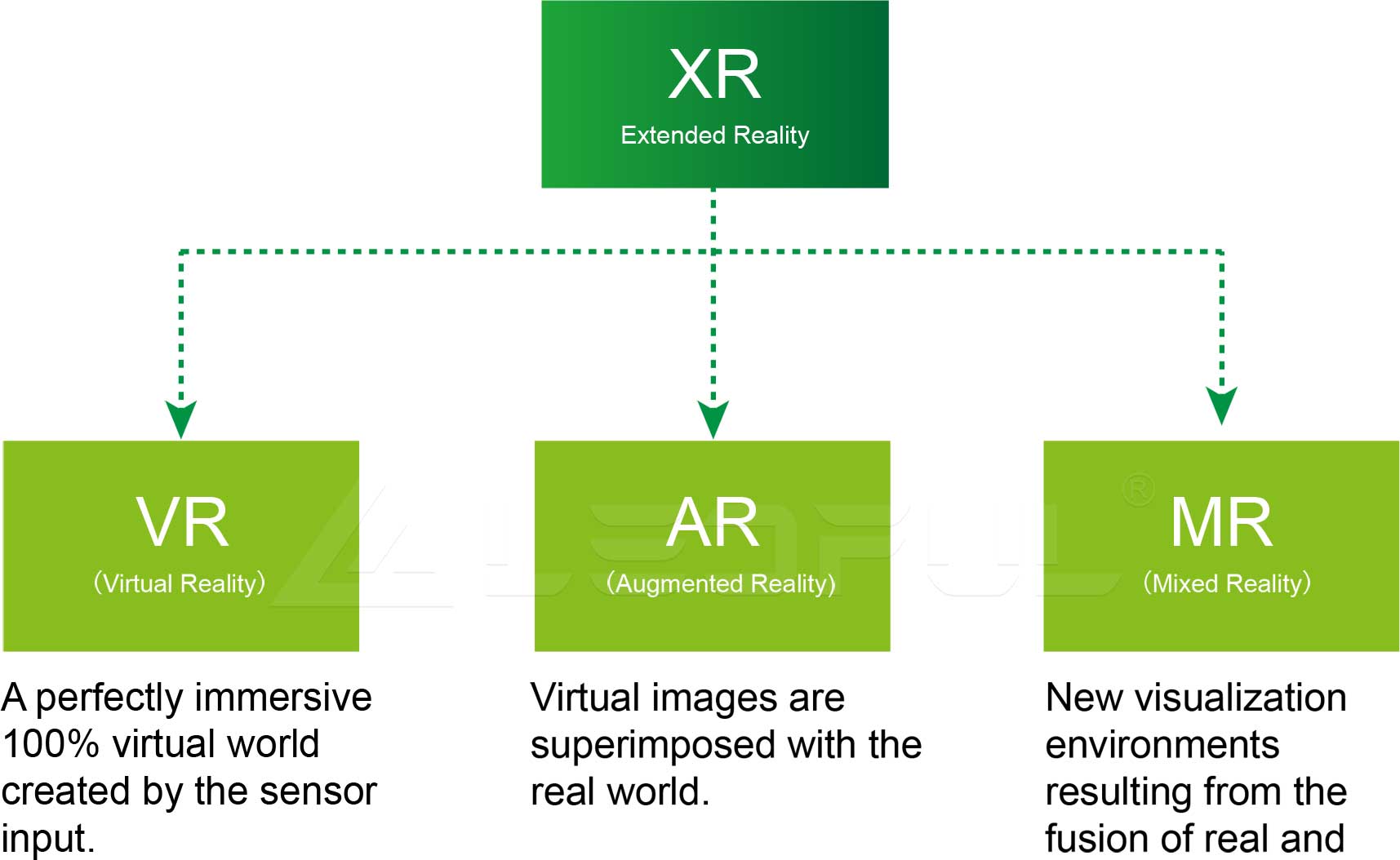

XR Technology

XR is an umbrella term that includes multiple layers of AR, VR, and MR to achieve the integration and transformation from real to virtual environments.
