TGC-R Series

Stage art, commercial for Rental

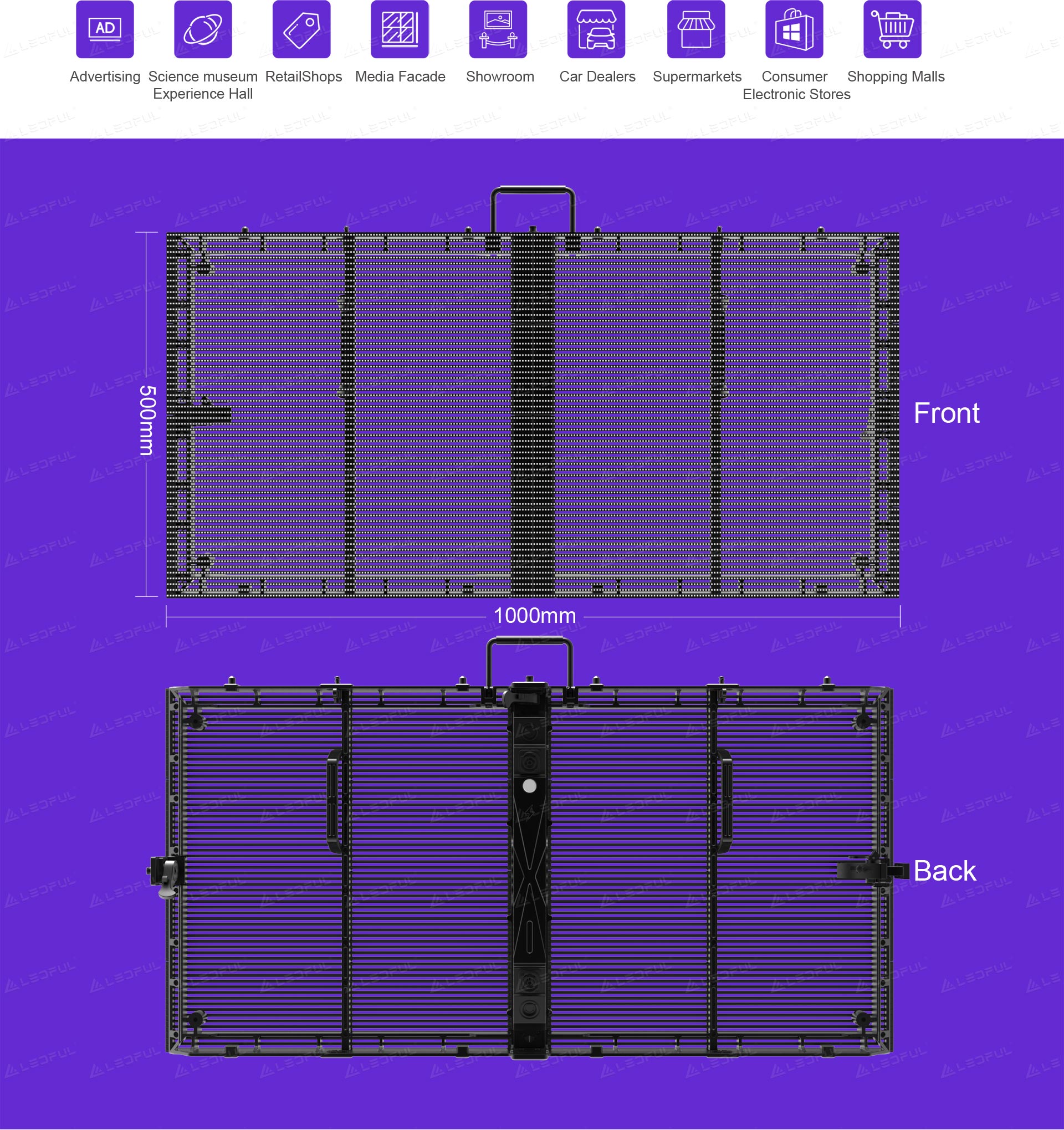

Applications
Applications

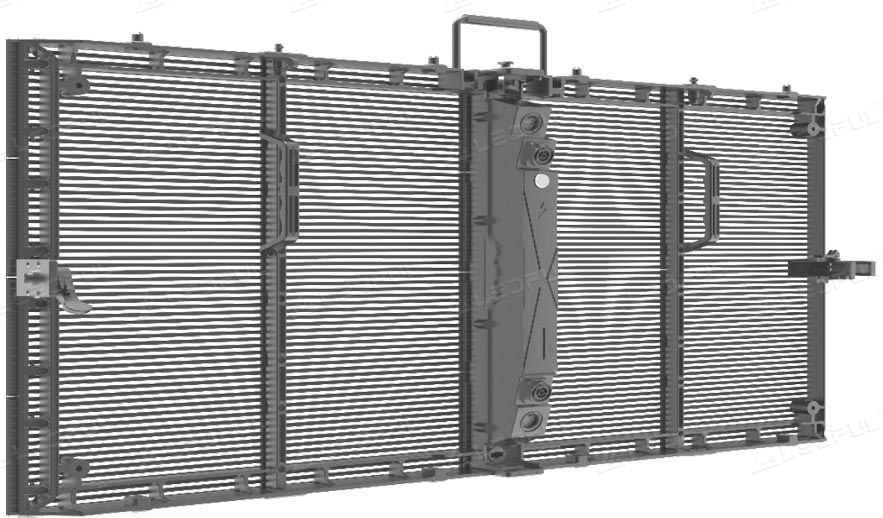

Specification
Model TGC3.9-R
Pixel Pitch(mm) H3.9-V7.8
Pixel Matrix Per Sq.m 32,768
Pixel Configuration SMD1921
Brightness (cd/㎡) 5000
Module Dimension 500X125mm
Cabinet Dimension 1000x500mm / 3.28 x1.64ft
Cabinet Resolution 256 x 64
Transparency 40%
Cabinet Material CNC Aluminum
Cabinet Weight 7.5kg
Power Con.(W/㎡) (Max / Avg) 800W/200-400W
Service Access Rear
Refresh Rate (HZ) ≥3840HZ
Grey Scale (bit) ≥16
Viewing Angle (H/V) 160°/160°
IP Rate IP64
Operation Temperature -40° ~ 45°
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.
Specification

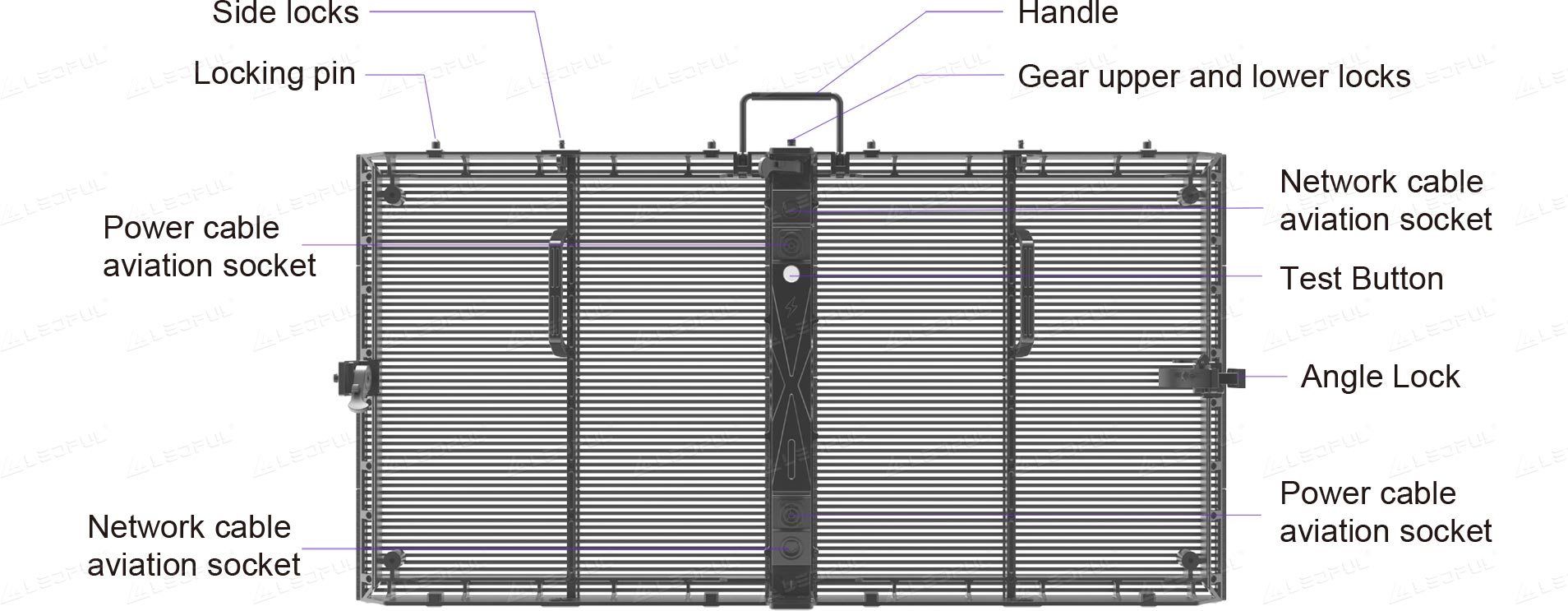

LEDFUL Transparent Rental Cabinet Design
LEDFUL Transparent Rental Cabinet Design

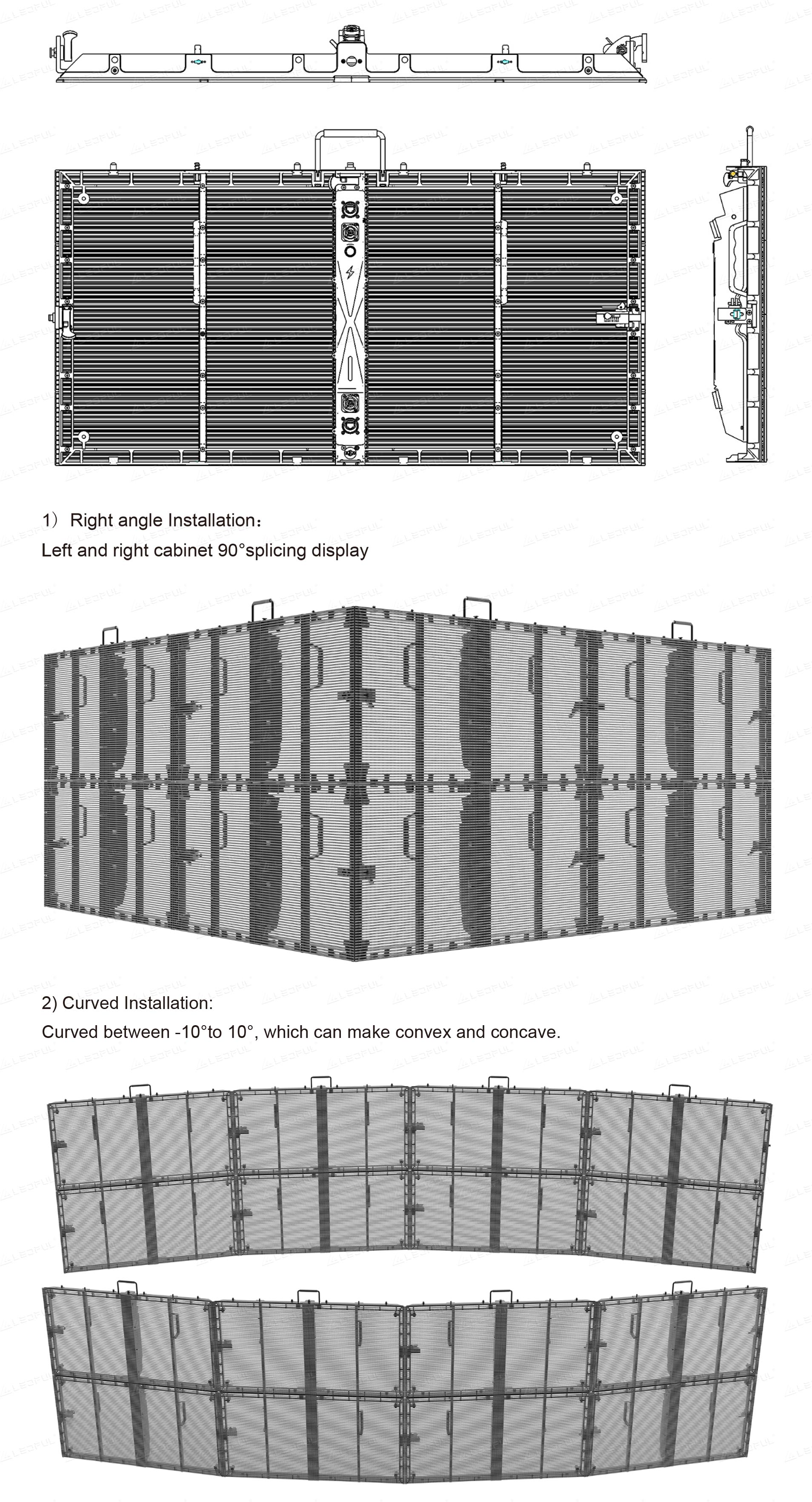

Curved Design, 90° Degree Angle Design
Curved Design, 90° Degree Angle Design

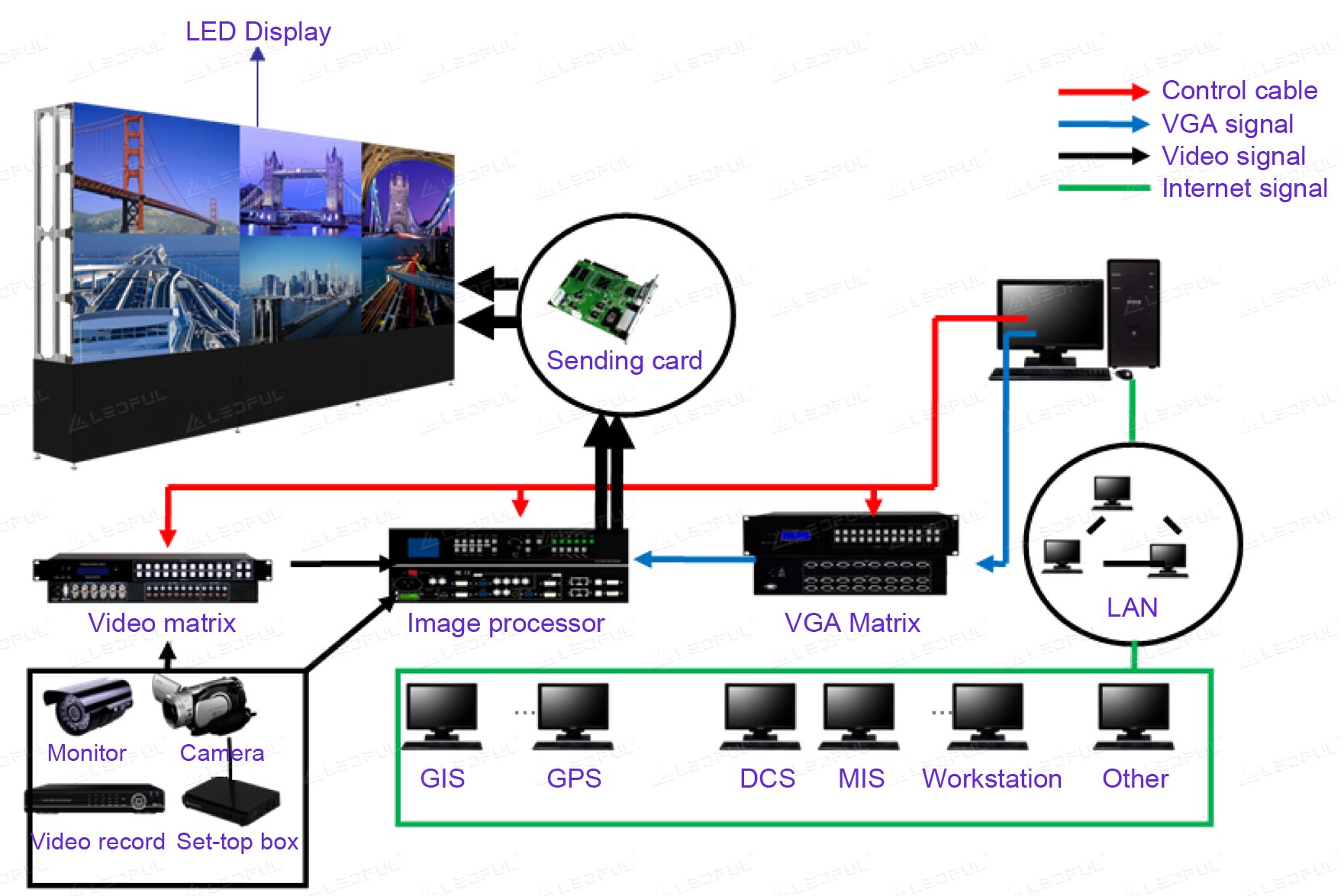

System Topology Diagram
System Topology Diagram

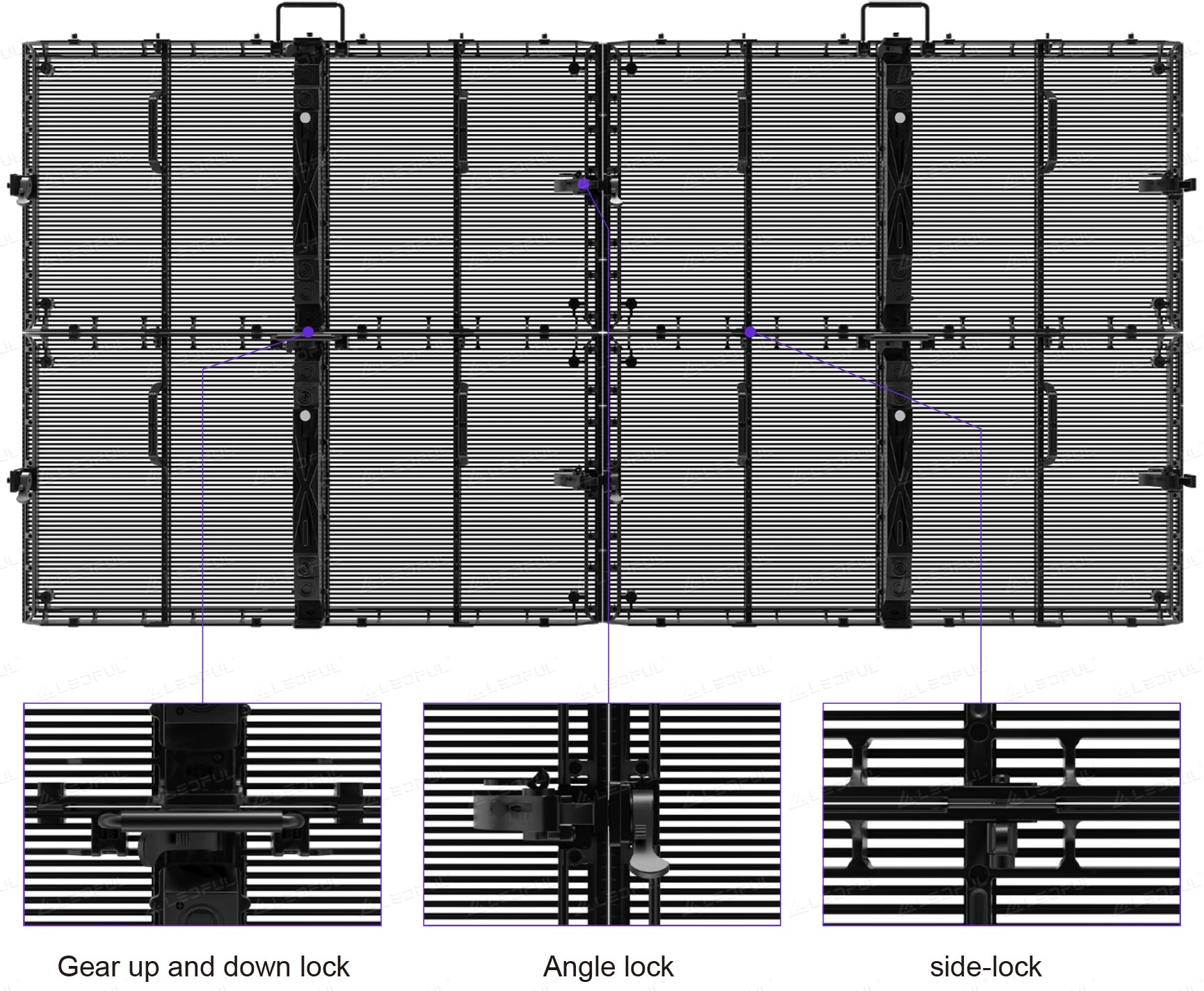

Lock Design for Transparent Rental Screen
Lock Design for Transparent Rental Screen

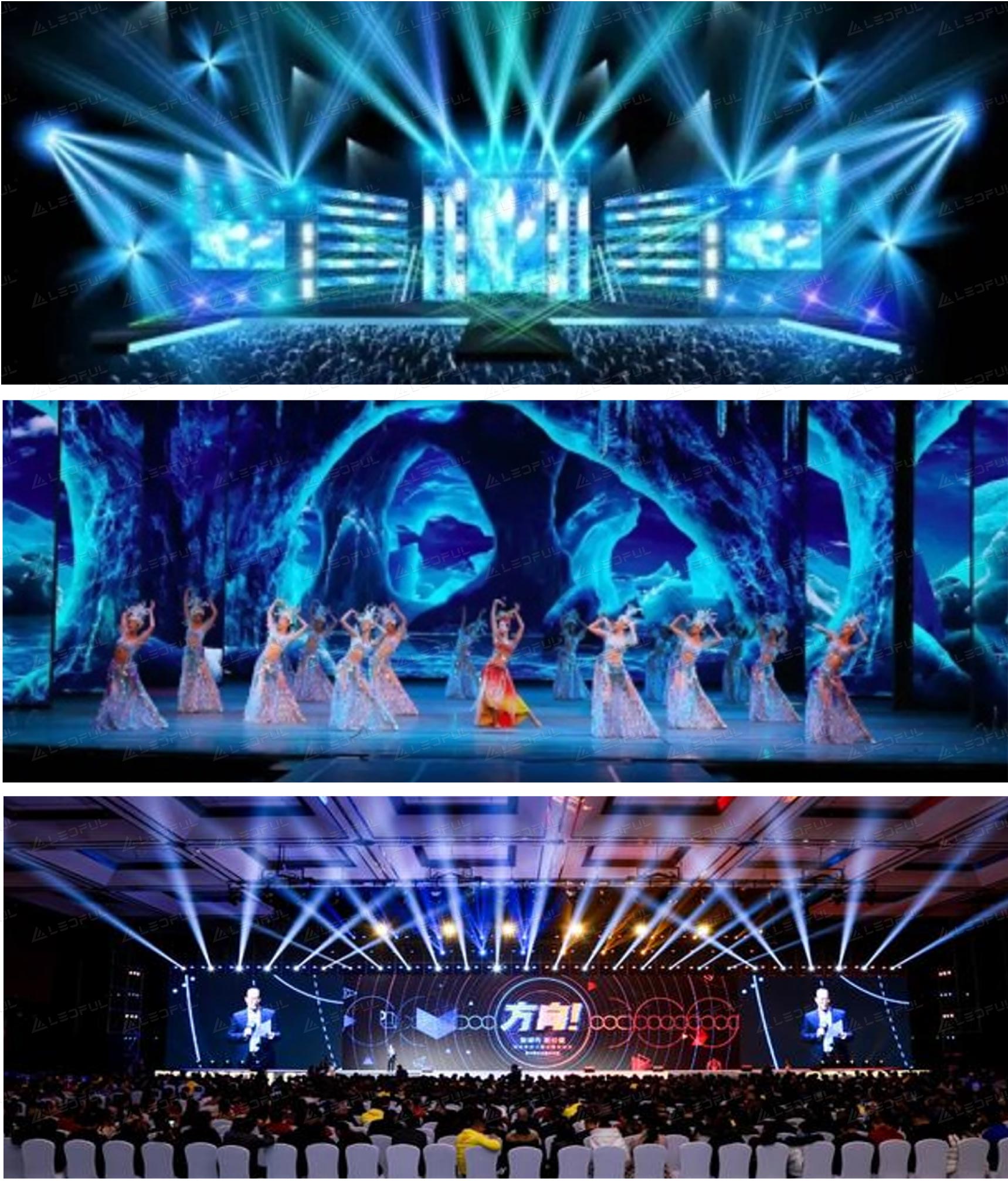

Project Case
Project Case
Features
Features
We Work With
We Work With
Related & Recommended LED Display Series
  • X Series
    XT Series
    X -- 500x500x80mm T-- 500x1000x80mm
    More
    X Series XT Series
    X -- 500x500x80mm T-- 500x1000x80mm
    • XI1.95 XI2.5 XI2.604 XI2.98 XI3.91 X4.8 XI5.95 XI6.2 XO2.604 XO2.98 XO3.91 XO481 XO5.95 XO6.2 TI1.95 TI2.5 TI2.604 TI2.98 TI3.91 TI4.8 TI5.95 TI6.2 TO2.604 TO2.98 TO3.91 TO4.81 TO5.95 TO6.2
    More
  • T Series
    T Series
    500x1000mm
    More
    T Series T Series
    500x1000mm
    • TI2.8 TI2.9 TI3.9 TO3.9 TO4.8 TO5.9 TO6.2
    More
  • V & H Series
    V & H Series
    V -- 500x500mm H -- 500x1000mm
    More
    V & H Series V & H Series
    V -- 500x500mm H -- 500x1000mm
    • VI/HI2.5 VI/HI2.6 VI/HI2.9 VI/HI3.9 VI/HI4.8
      VO/HO2.6 VO/HO2.9 VO/HO3.9 VO/HO4.8
    More

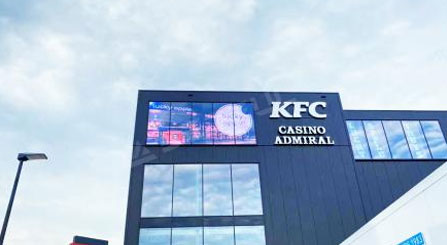

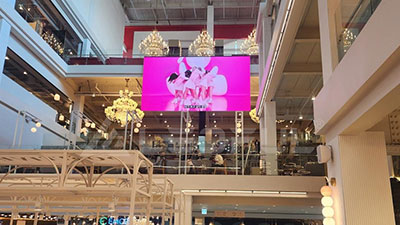

Related & Recommended Projects
*
*
*
*
