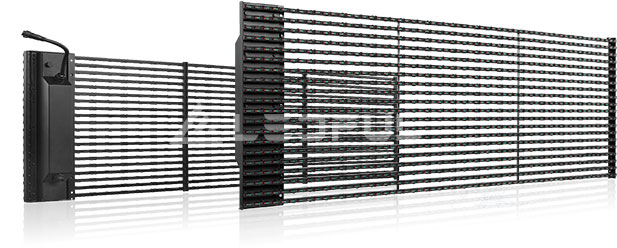

ST Series

Strip Transparent LED Mesh / Curtain Display

ST Series
ST15L | ST15H | ST15-31 | ST31 | ST25 | ST25-50
  • High transparency with reducing wind drag and heat dissipation
  • Light, slim, easy installation and maintenance
  • No air conditioner, no structure, no rear space
  • Energy saving solution
  • All weather resistant for stable operation
  • Best media facade solution, glass wall solution, DOOH, building wall.
Parameter
ST Series Value ST15L ST15H ST15-31 ST31 ST25 ST25-50
Pixel Pitch(mm) 15.625 15.625 15.6(H ) / 31.25(V) 31.25 25 25(H ) / 50(V)
Pixel Matrix Per Sq.m 4096 4096 2048 1024 1600 800
Pixel Configuration DIP346 DIP346 DIP346 DIP346 DIP346 DIP346
Brightness (nits) 8000 9000 10000 9000 9000 9000
Transparency 25% 65% 68% 68% 60% 80%
Cabinet Dimension 1000x500mm/3.28x1.64ft 1000x500mm/3.28x1.64ft 500x1000mm/1.64x3.28ft 1500x500mm/4.92x1.64ft 1500x500mm/4.92x1.64ft 1500x500mm/4.92x1.64ft
Cabinet Weight 17kg/37.48lb (Aluminum) 10kg/22.05lb(Aluminum) 9kg/19.84lb(Aluminum) 7kg/15.43lb(Aluminum) 8kg/17.64lb(Aluminum) 6kg/13.23lb(Aluminum)
Power Con. (Max/Avg) 400/100 w/sq.m 400 / 100 w/sq.m 400 / 100 w/sq.m 400 / 100 w/sq.m 400 / 100 w/sq.m 400 / 100 w/sq.m
Service Access Front / Rear
Refresh Rate (HZ) ≥1920
Grey Scale (bit) 16
Viewing Angle (H/V) 120 / 70
IP Rate IP68
Input Voltage (AC) 110V / 240V

* Specifications and photos are subject to change without prior notice.

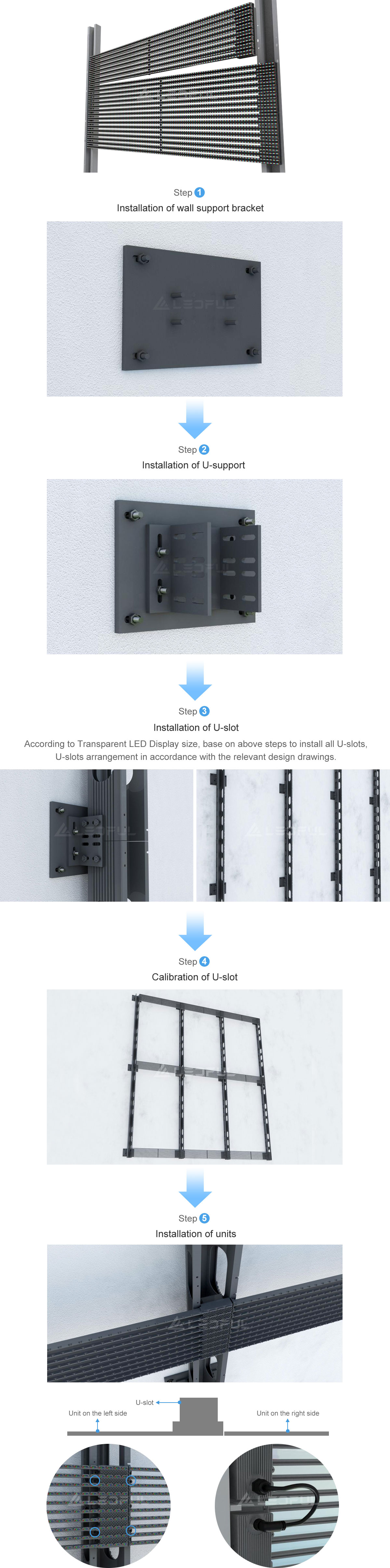

How to install ST series Transparent LED Display on building facade wall
How to install ST series Transparent LED Display on building facade wall
How to install ST series Transparent LED Display on glass wall

xx

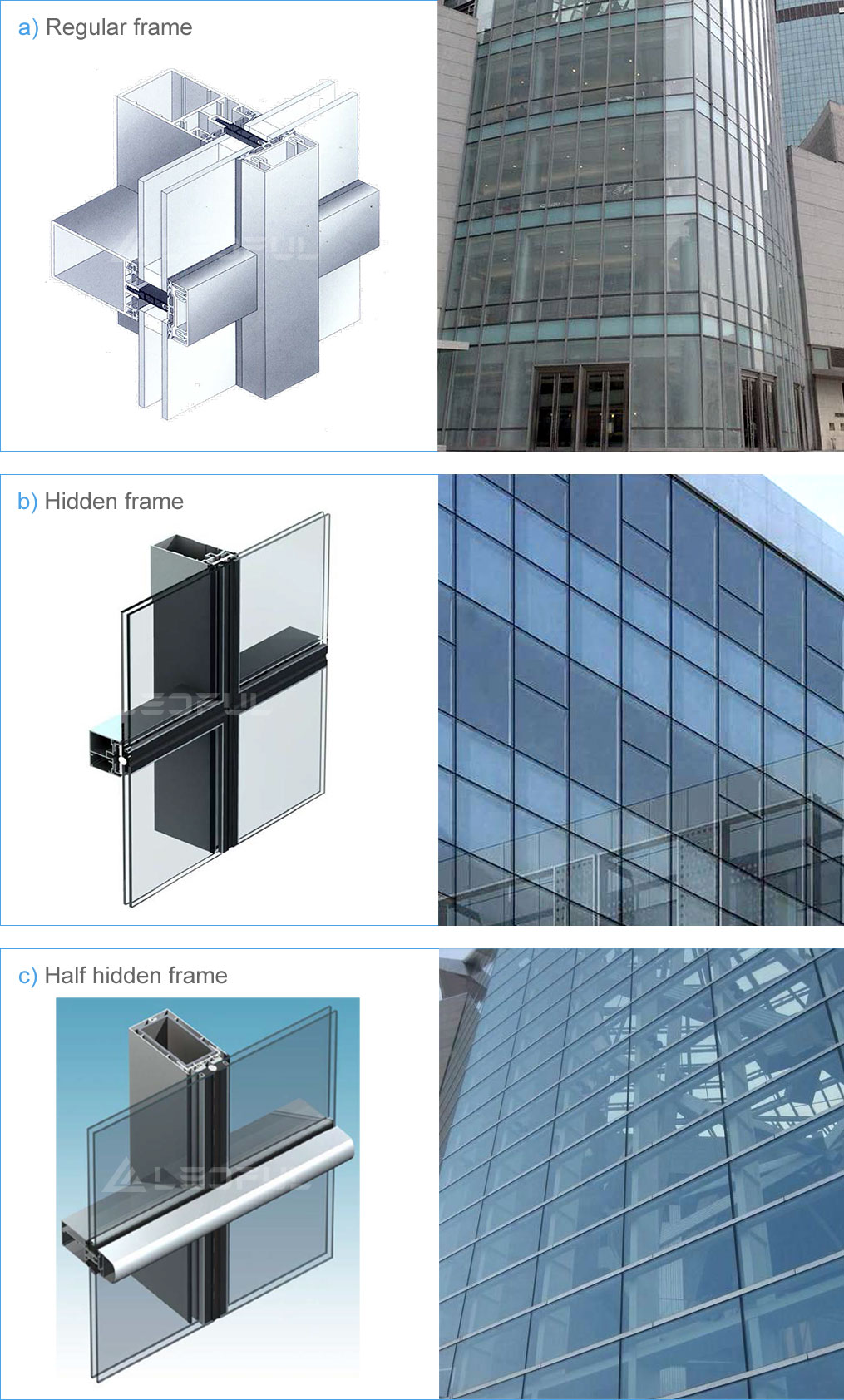

A Frame support glass wall, glass support by surrounding metal frame
A

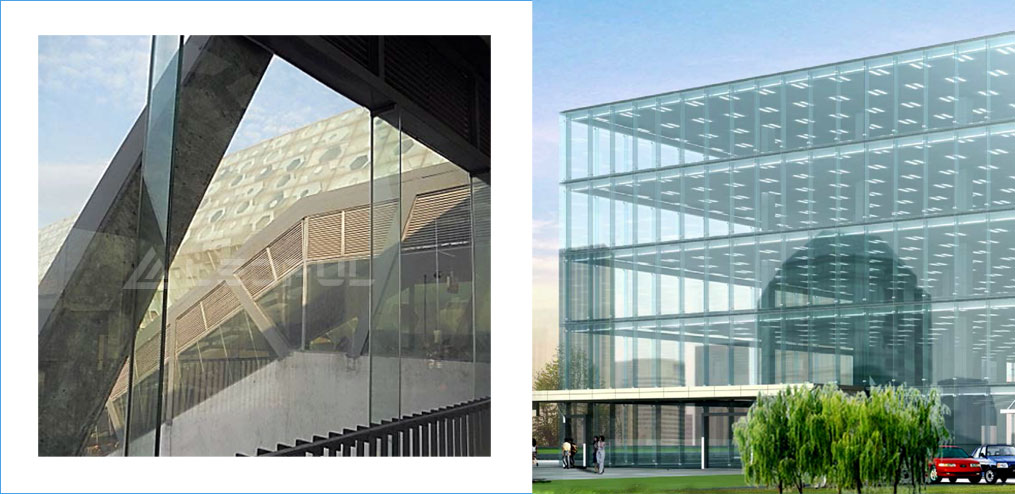

B Full glass wall, be formed by glass ribs and glass board
B

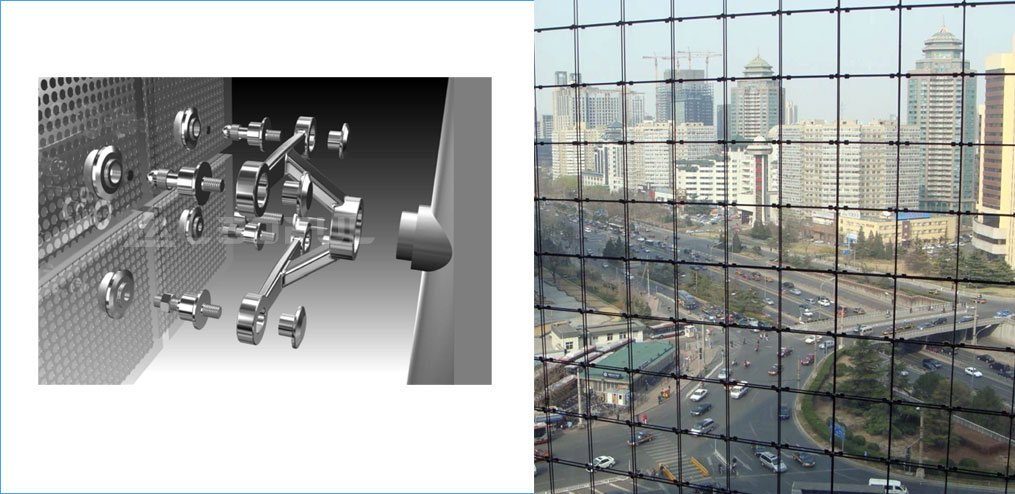

C Spot support glass wall, support by glass board and supporting point
C

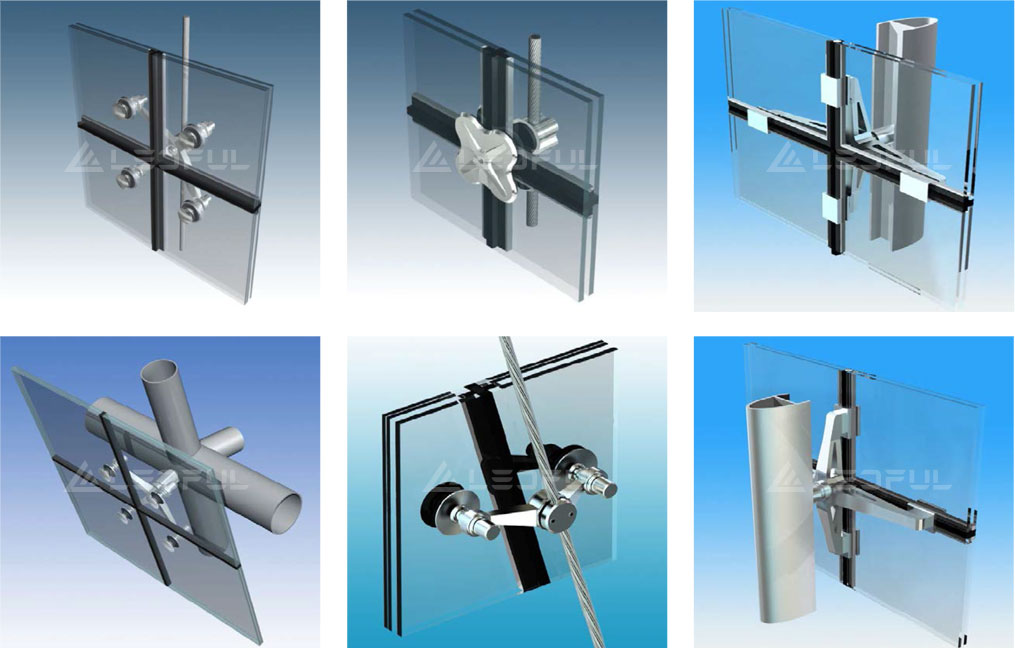

D Claw point connection
D

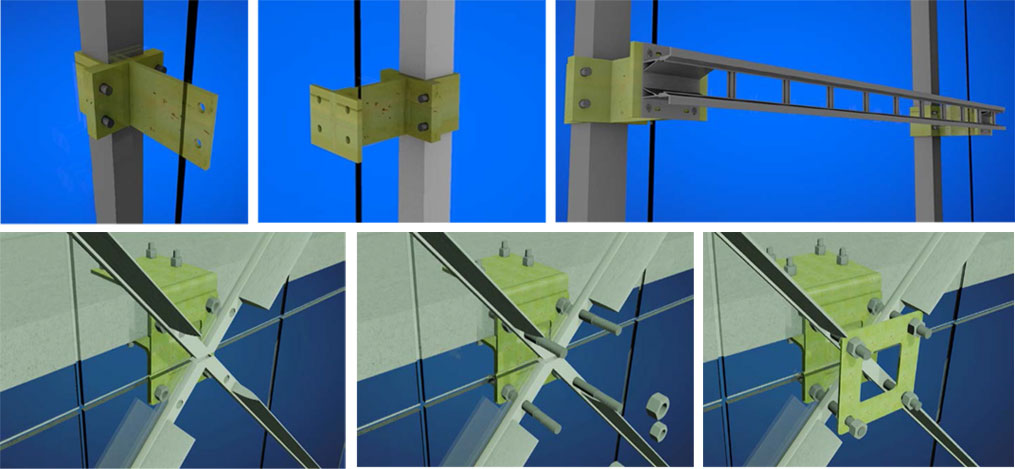

E Transparent LED display install front of glass wall, extend support points base on original glass wall to support transparent LED cabinets modules
E

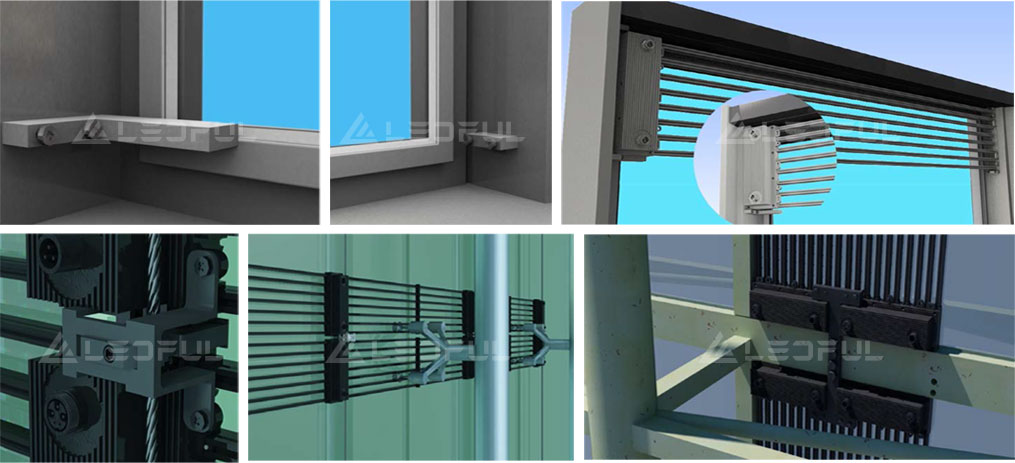

F Transparent LED display install behind of glass wall, base on original glass wall support frame, or enhance accessory to support. The transparent LED display should be as closest to glass as possible,...
F

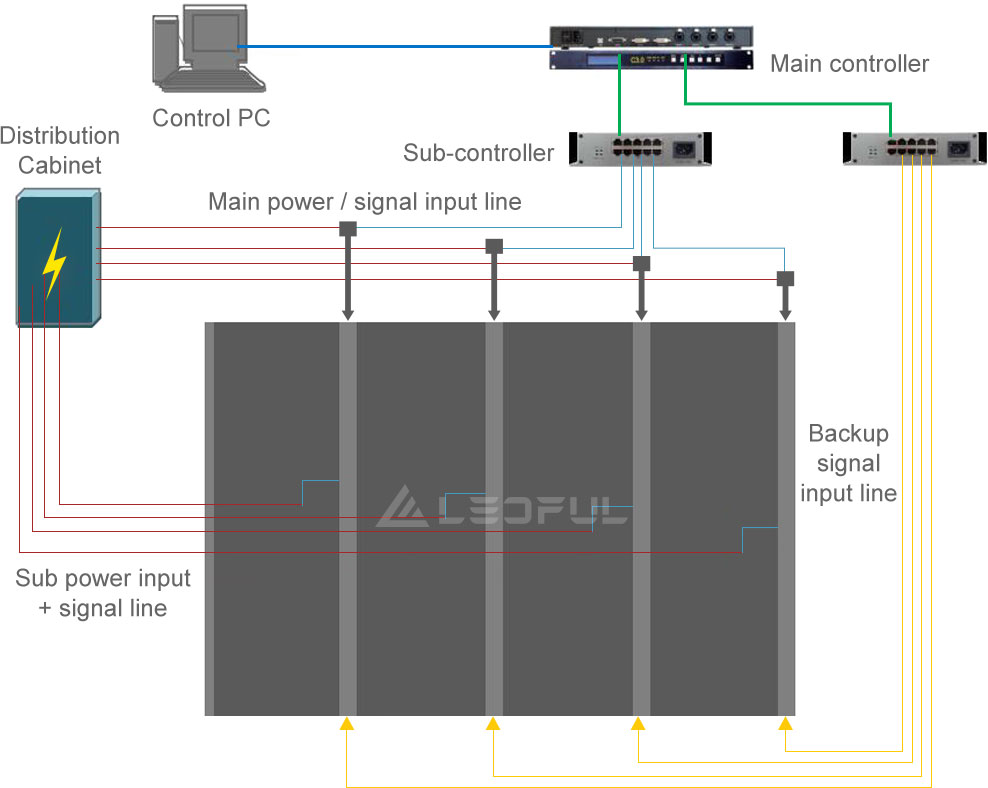

Power and Data Connection Diagram
There are computer, LED display main controller, sub controller,
main power input, sub power input. This is a reference system wiring schematic.
Specific projects shall be in accordance with the relevant design drawings.
Power and Data Connection Diagram
High transparency with reducing wind drag and heat dissipation for transparent LED display
High transparency with reducing wind drag and heat dissipation for transparent LED display

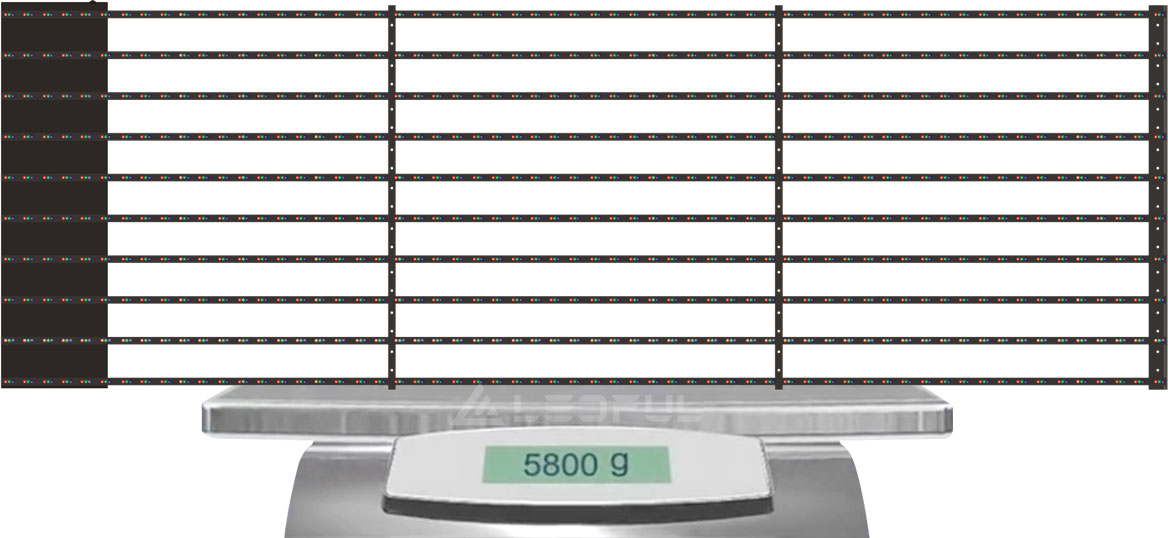

Light, slim, easy and fast installation and maintenance
Light, slim, easy and fast installation and maintenance

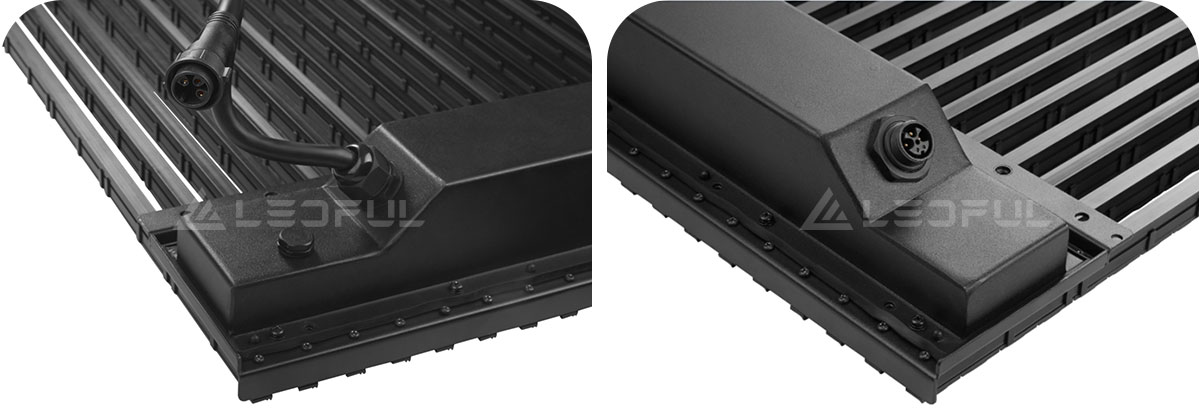

Integrated power and data cable saving connection time with fool proof design
Integrated power and data cable saving connection time with fool proof design

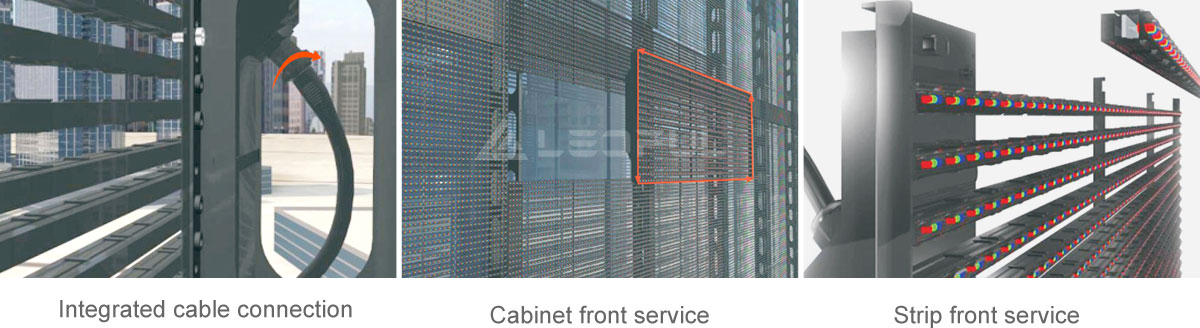

Front Service
Front Service

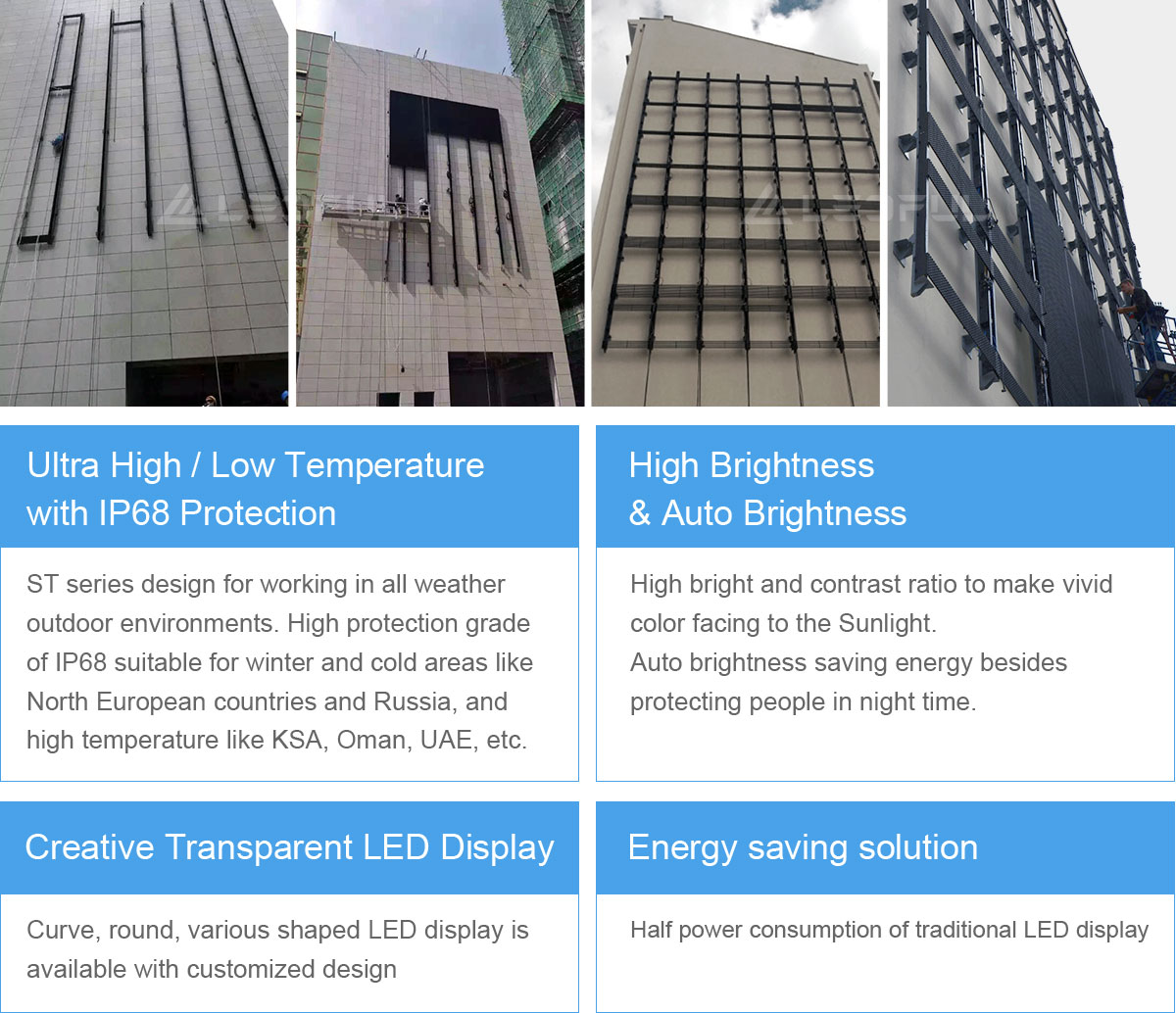

No air conditioner, no structure, no rear space during strip transparent LED display installation
No air conditioner, no structure, no rear space during strip transparent LED display installation
