LFCPoster Series

Lift Flod Conference Poster

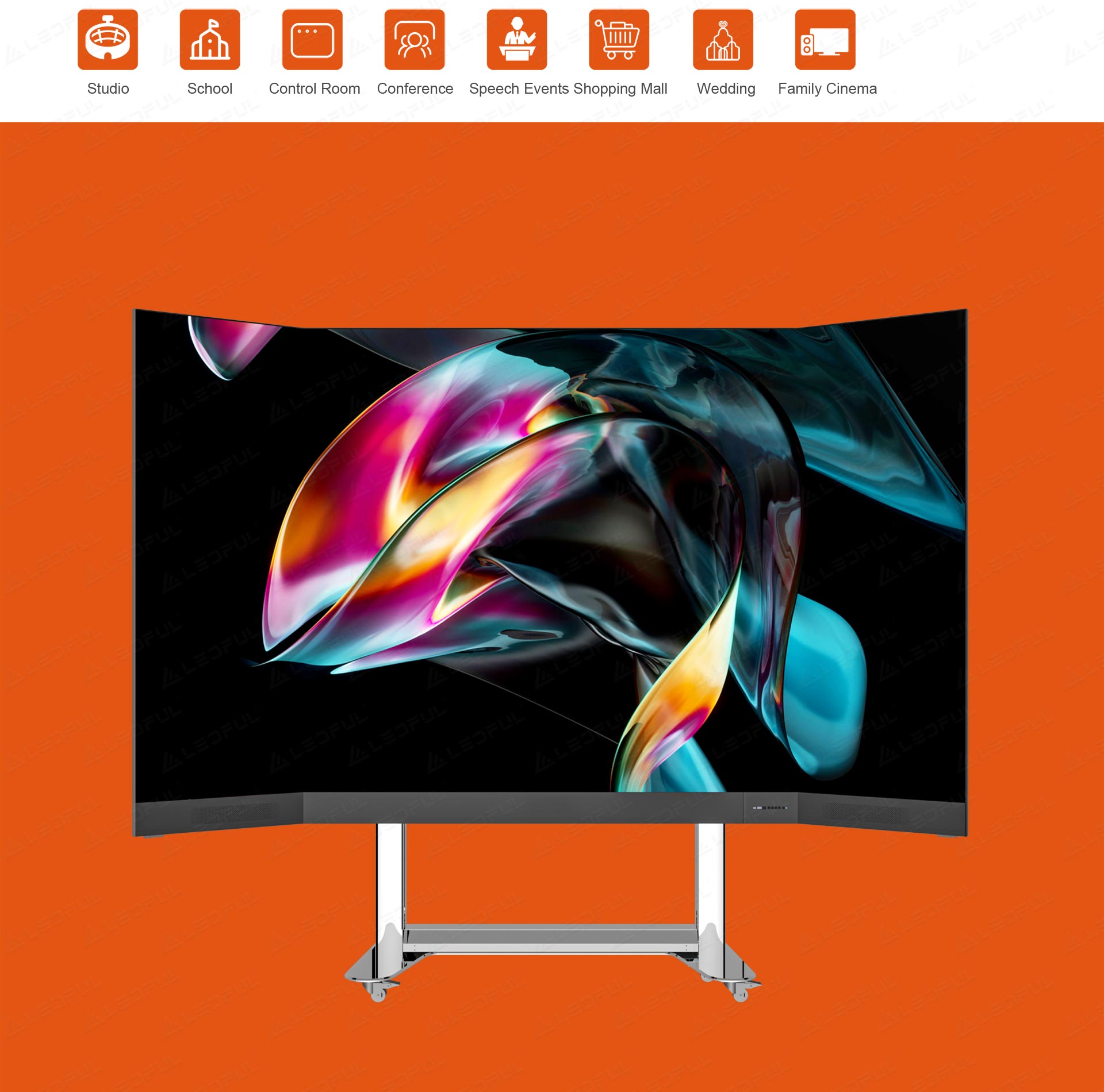

Applications
Applications
Specification
Model LFCPoster-0.9 LFCPoster-1.2 LFCPoster-1.5
Pixel Pitch(mm) 0.9375 1.25 1.56
Pixel Matrix Per Sq.m 1,137,778 640,000 409,600
Pixel Configuration COB COB COB
Brightness (cd/㎡) 500 600 600
Scan 1/60 1/45 1/48
Module Dimension (W*H) 150*168.75mm / 0.49*0.55ft
Cabinet Dimension (W*H*D) 600*337.5*27mm / 1.97*1.11*0.09ft
LFCPoster Dimension (W*H) 135'' | 3,000*1,687.5mm / 9.84*5.54ft
LFCPoster Resolution 3,200*1,800
Outer Frame Size (W*H*D) 1804*1948*770mm / 5.92*6.39*2.53ft (Fold down)
Outer Frame Size (W*H*D) 3010*2598*770mm / 9.88*8.52*2.53ft (Unfold and lift)
Power Consumption (Max / Avg) Max 5000W/㎡ / Avg 1500W/㎡
Cabinet Material Die Casting Aluminum
Cabinet Weight 4.5KG
Contrast Ratio 7000:01:00
Service Access Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 16
Viewing Angle (H/V) 170°/170°
IP Rate Front IP65 / Rear IP43
Operation Temperature -20℃ ~ +60℃
Input Voltage (AC) 110V / 220V

* Specifications and photos are subject to change without prior notice.

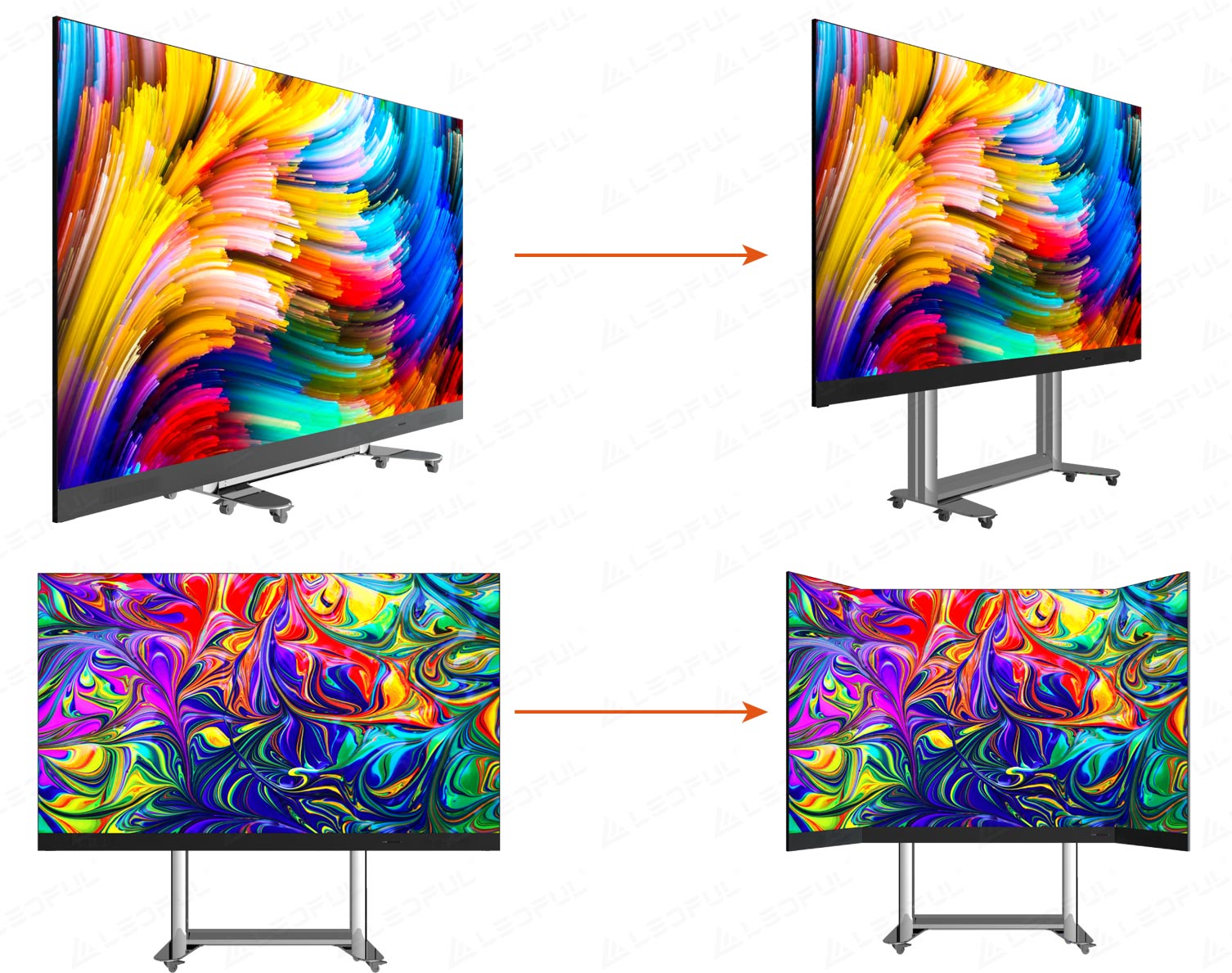

0~65cm Liftable | Two Sides 120cm Foldable
0~65cm Liftable | Two Sides 120cm Foldable
Perfect Performance & Main Advantages
◆ 135'' | 2K and above                       ◆ SMD/GOB/HOB/COB Optional
◆ 27mm Thickness Screen          ◆ 16bits, 3840Hz, 7000:1 Contrast
Perfect Performance & Main Advantages

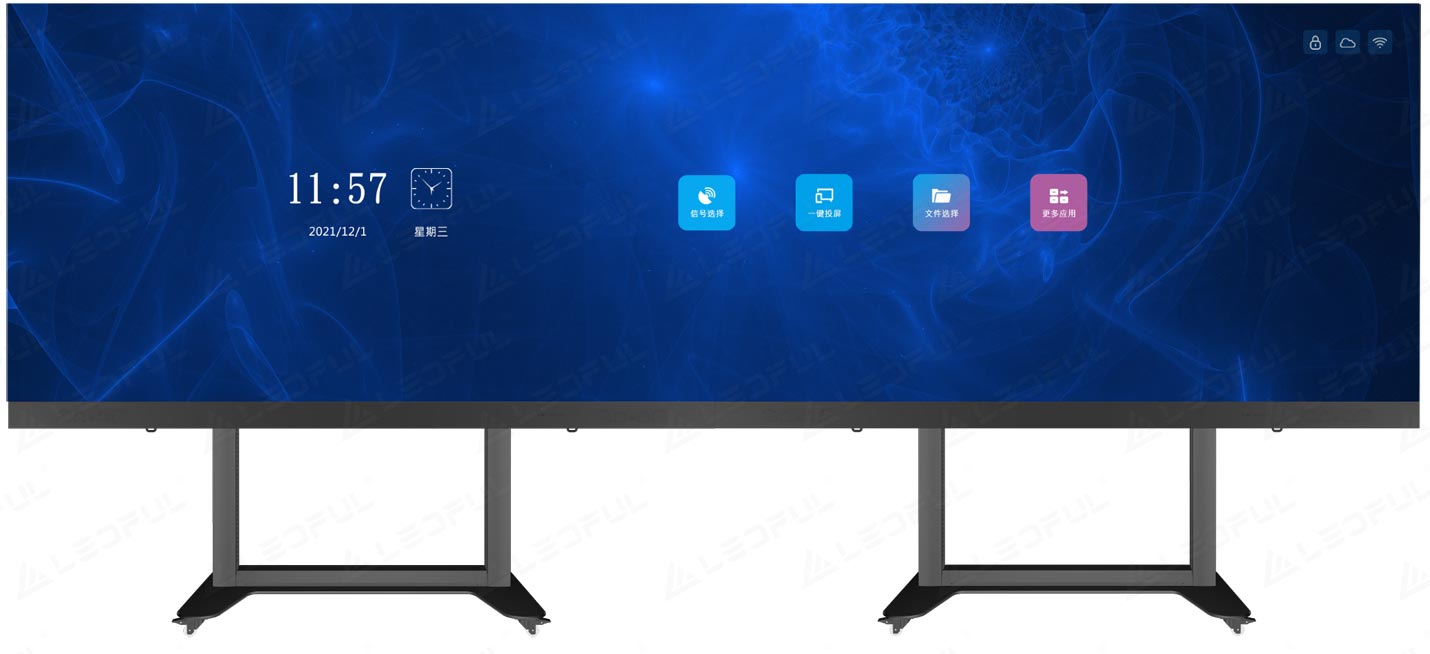

Bigger & Wider
Cascade Connection Available.
Bigger & Wider

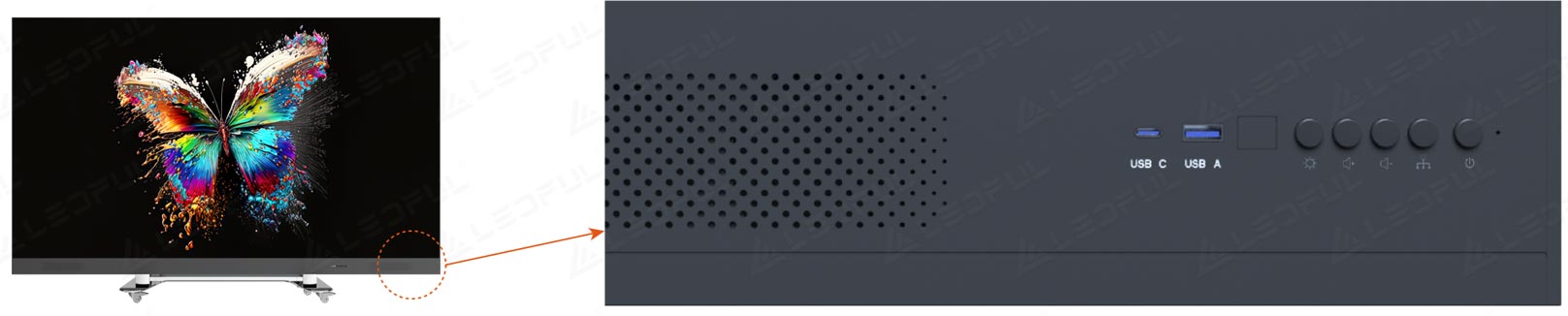

Easy Operation Buttons
Easy Operation Buttons

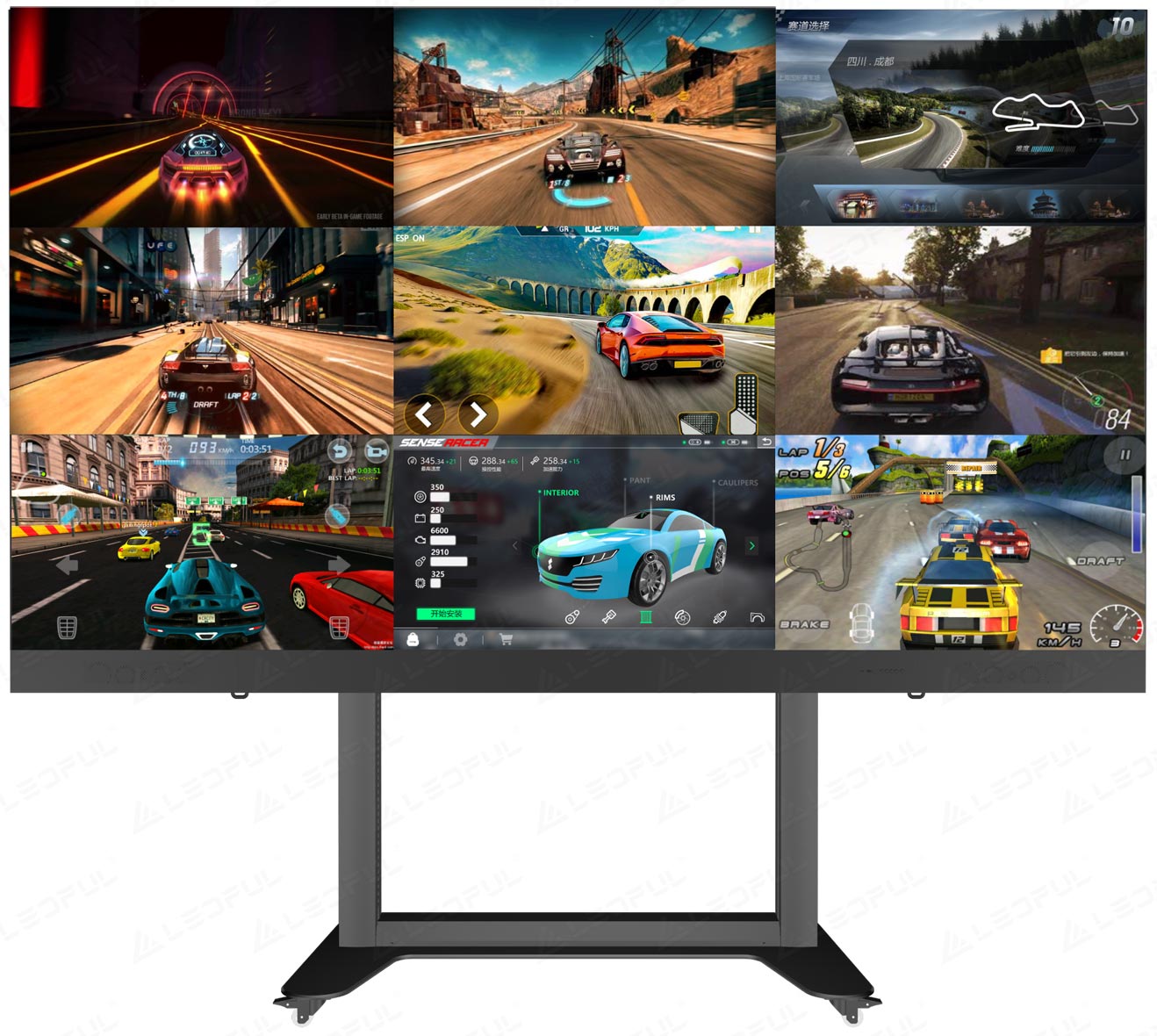

Wireless Projection
Project contents of computer / Phone quickly, easy and convenient.
Wireless Projection

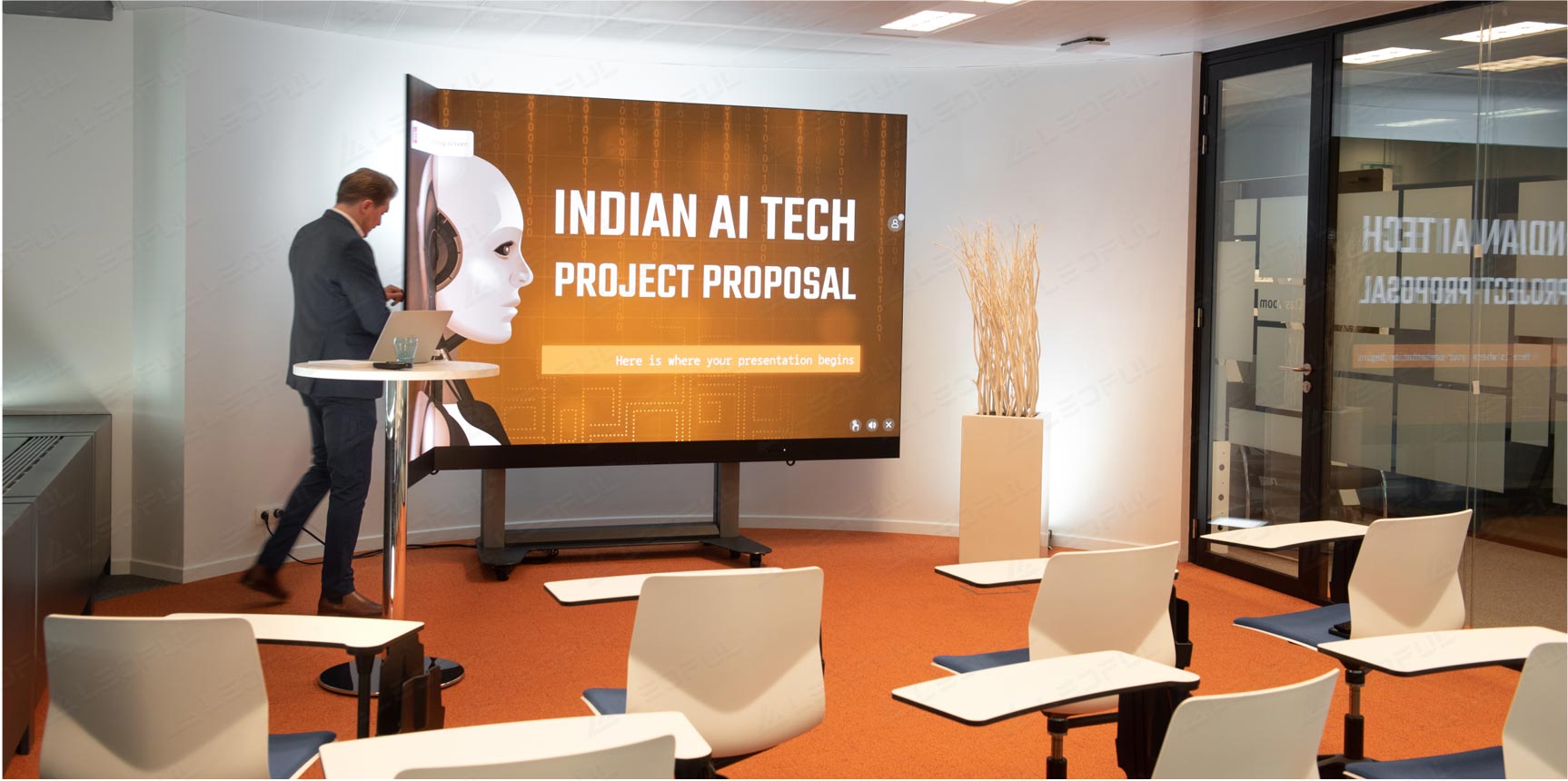

Plug and Play
Only one main power cable needs to plug, friendly to end user.
Plug and Play

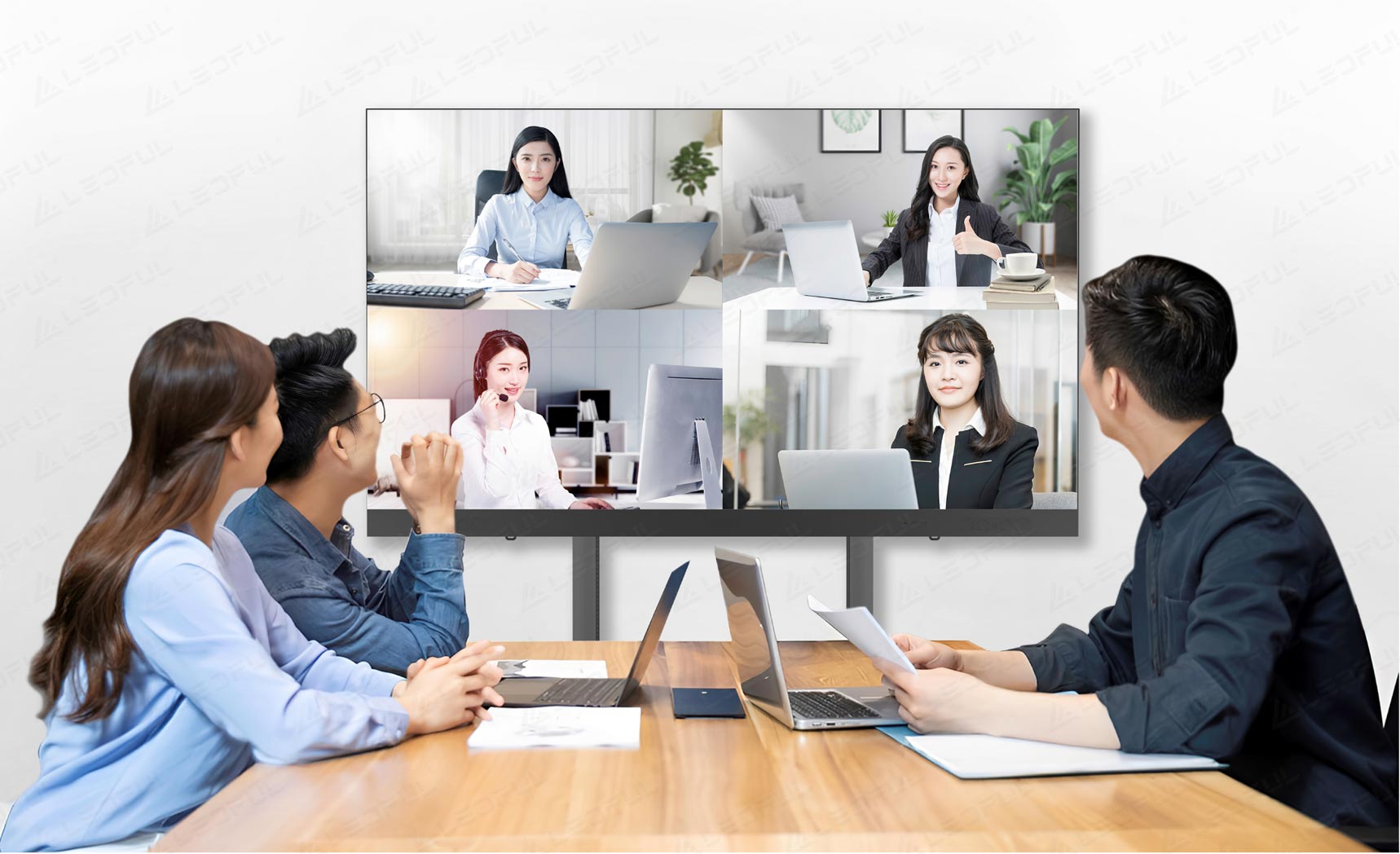

Efficient Meetings | "Smart" Office
Integrated professional meeting software,  support connecting with microphone, camera and other equipments.
Efficient Meetings |

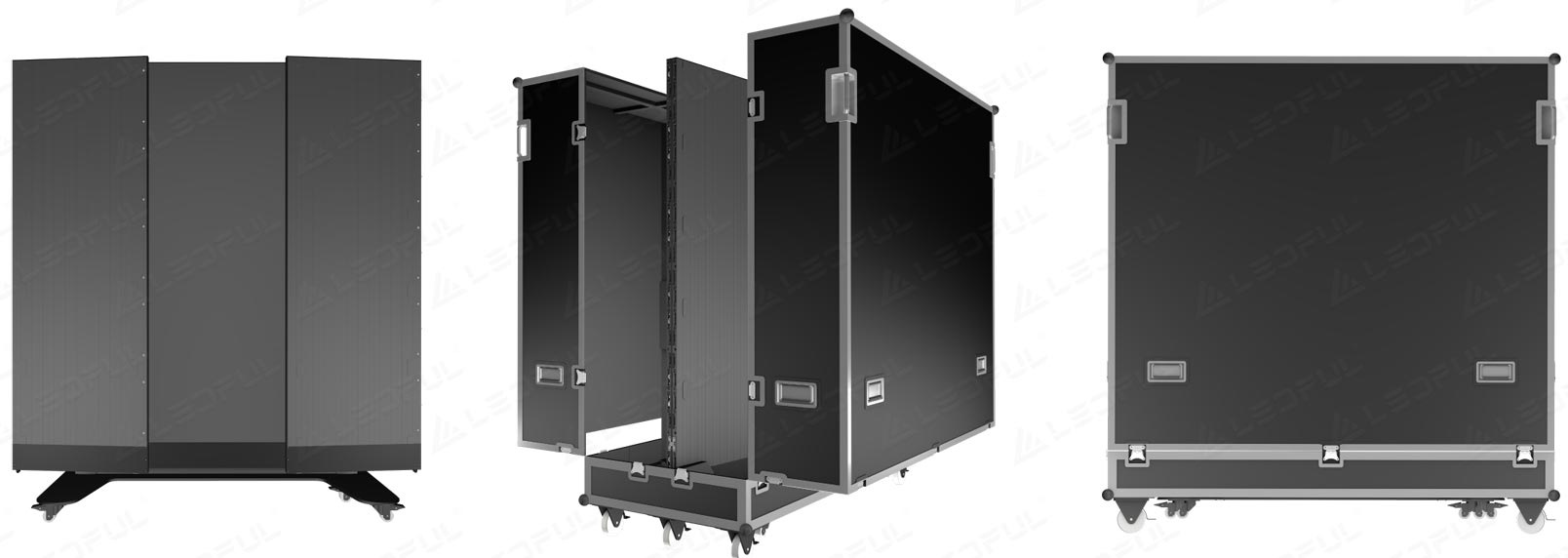

Professional Flight Case for Rental Using
The screen can be folded into the elevator with flight case, 2 minutes to open and use.
Professional Flight Case for Rental Using

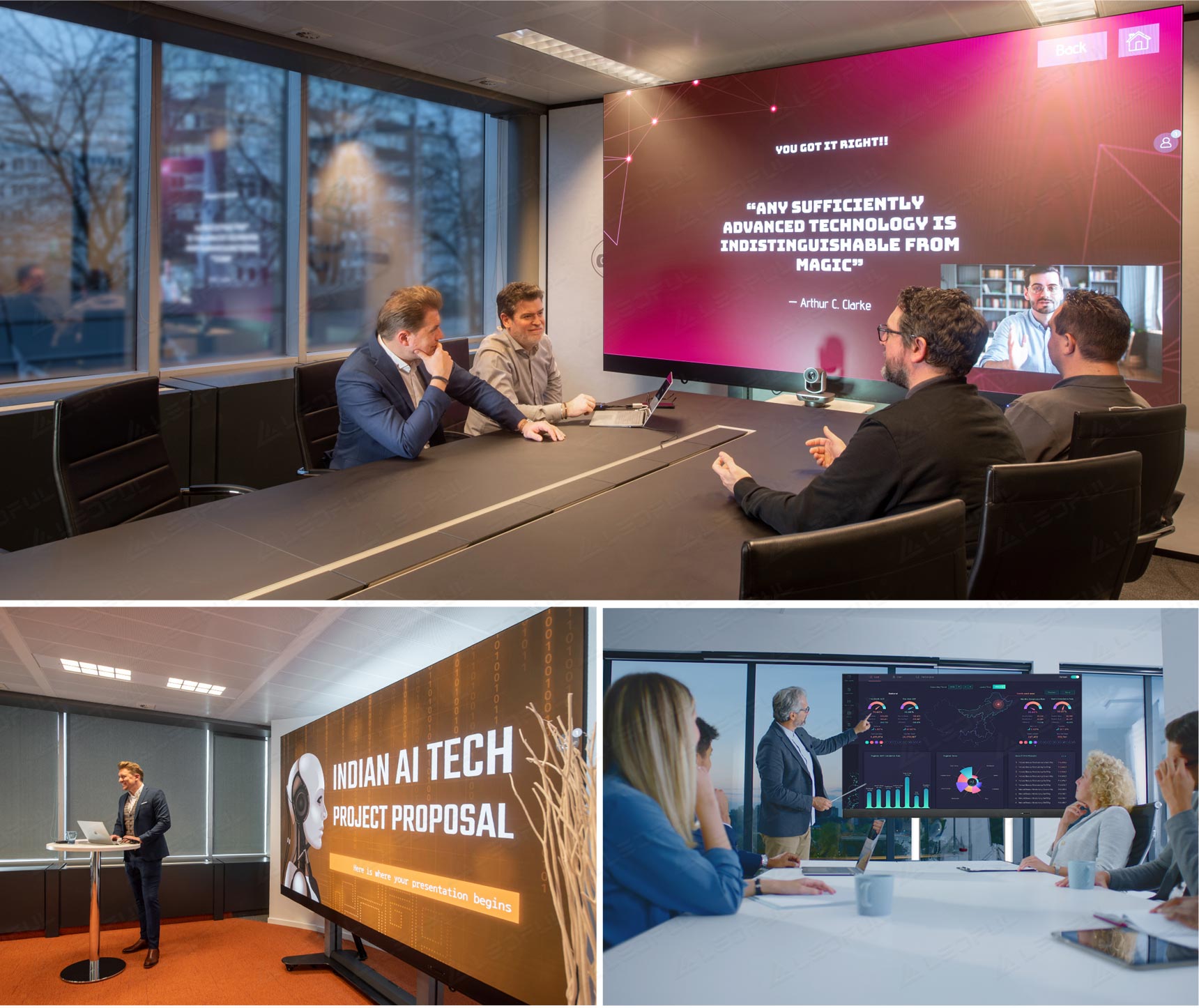

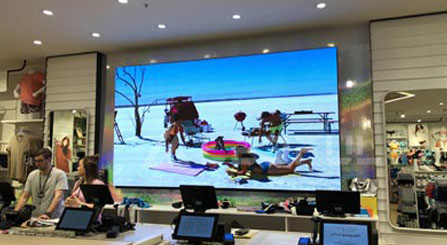

Case Study
Case Study
More Features
More Features
