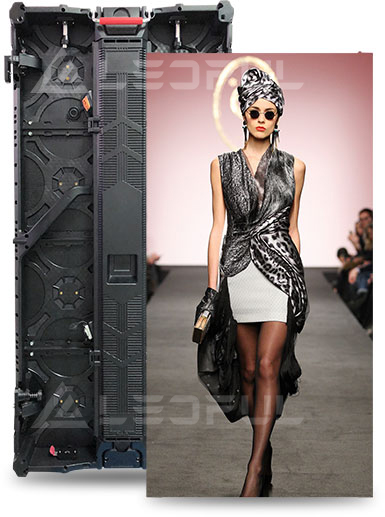

H Series

Fashion LED Event LED Display

HI2.6 | HI2.8 | HI2.9 | HI3.9 | HI4.8
HO3.9 | HO4.8 | HO5.9 | HO6.2

Front Maintenance
Curved Installation
No Light Leakage
Climbing support
Light and Thin

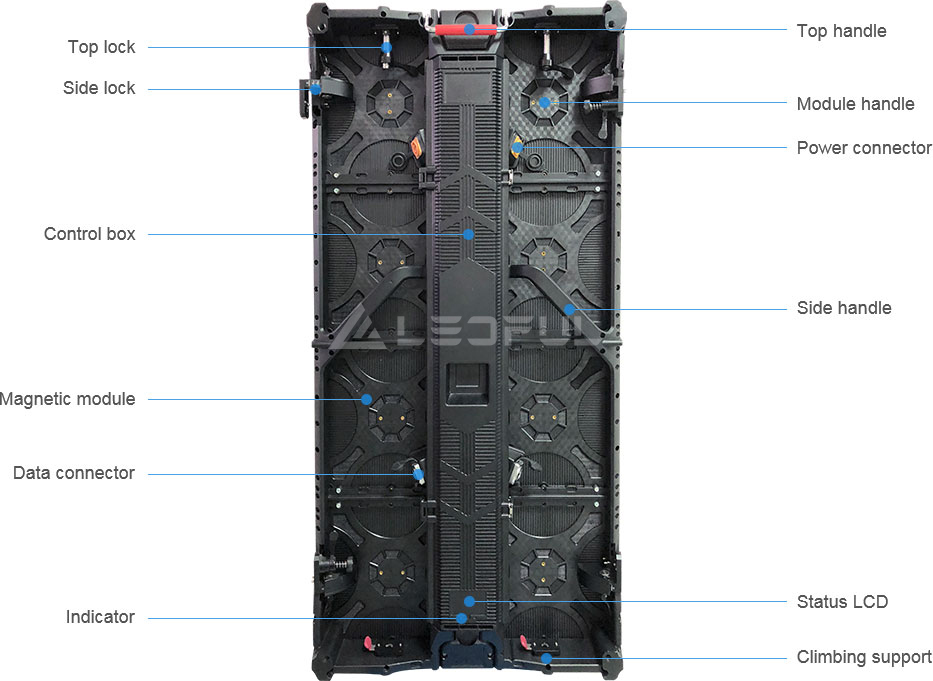

Parameter

H Series Outdoor	HO 3.9	HO 4.8	HO 5.9	HO 6.2
Pixel Pitch(mm)	3.91mm	4.81mm	5.95mm	6.25mm
Pixel Matrix Per Sq.m	65536	43264	28224	25600
Pixel Configuration	SMD1921	SMD2727/1921	SMD3535	SMD3535
Brightness (nits)	≥4000	≥4500	≥4500	≥4000
Scan	43116	43113	43107	43110
Cabinet Resolution	128×256	104×208	84×168	80×160
Power Con. (Max / Avg)	760/ 240 w/sq.m	740 / 220 w/sq.m	720 / 210 w/sq.m	700/ 200 w/sq.m
Module Dimension	250x250mm / 0.82x0.82ft
Cabinet Dimension	500x1000x83mm / 1.64x3.28x0.27ft
Cabinet Weight	15kg / 33.06Ib ( Die-casting Aluminum)
Service Access	Front / Rear
Rotation Angle	-10° and +10°
Refresh Rate (HZ)	1920
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP65
Input Voltage (AC)	110 / 240

H Series Indoor	HI 2.8	HI 2.9	HI 3.9	HI 4.8
Pixel Pitch(mm)	2.84mm	2.976mm	3.91mm	4.81mm
Pixel Matrix Per Sq.m	123904	112896	65536	43264
Pixel Configuration	SMD2121	SMD2121	SMD2121	SMD2121
Scan	1/22	1/28	1/16	1/13
Cabinet Resolution	176×352	168×336	128×256	104×208
Power Con. (Max / Avg)	780 / 240w/sq.m	760 / 230w/sq.m	680 / 210w/sq.m	670 / 200w/sq.m
Module Dimension	250x250mm / 0.82x0.82ft
Cabinet Dimension	500x1000x83mm / 1.64x3.28x0.27ft
Cabinet WTIght	14kg / 30.86Ib ( Die-casting Aluminum)
Service Access	Front / Rear
Rotation Angle	-10° and +10°
Brightness (nits)	≥1000
Refresh Rate (HZ)	3840
Grey Scale (bit)	16
Viewing Angle (H/V)	160 / 160
IP Rate	IP31
Input Voltage (AC)	110 / 240

* Specifications and photos are subject to change without prior notice.

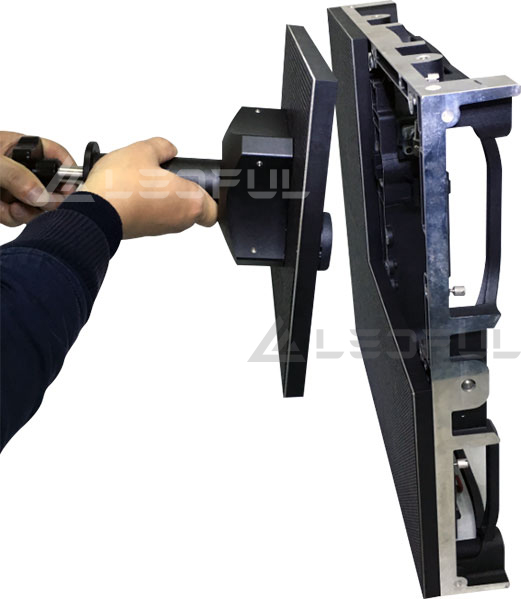

Front Maintenance

The magnet LED modules can be removed by tools on front side.

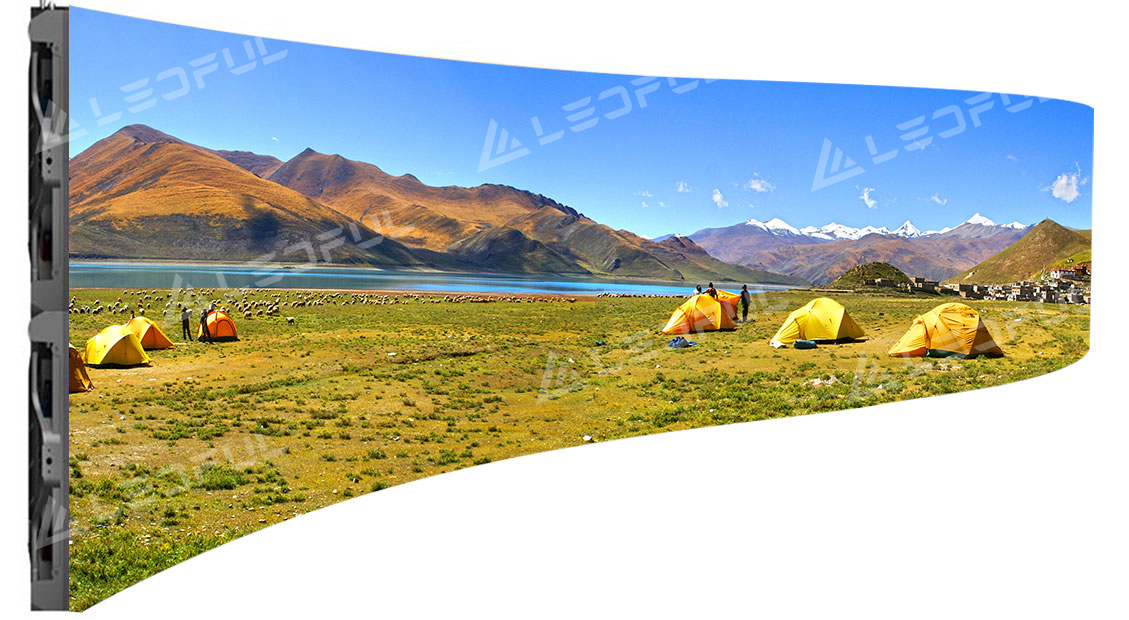

Curved Installation

Curved with every 2.5° between -10°and 10°, which can make convex and concave.

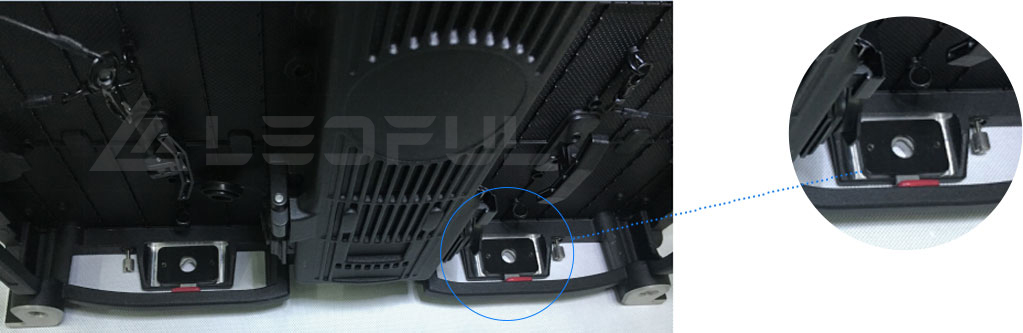

Climbing Support

Climbing structure can help you make convenient maintenance

No light leakage trouble

No light leakage design with specific strips on side of cabinet and behind neighbour module.

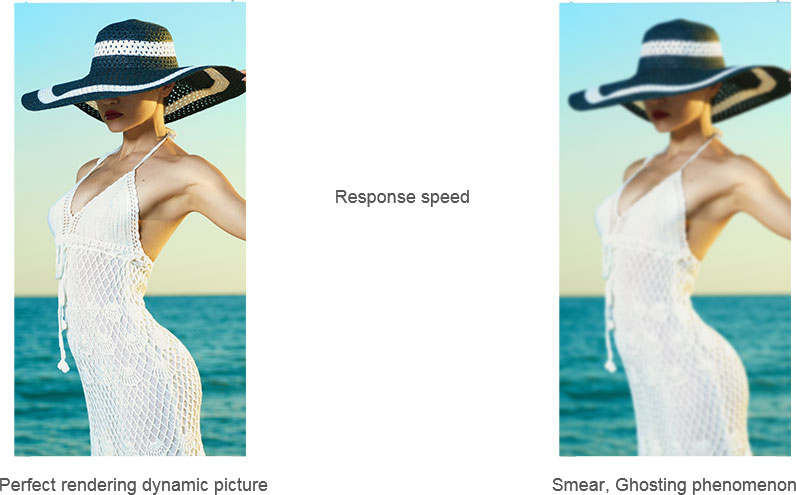

Ultra Fast Response

The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

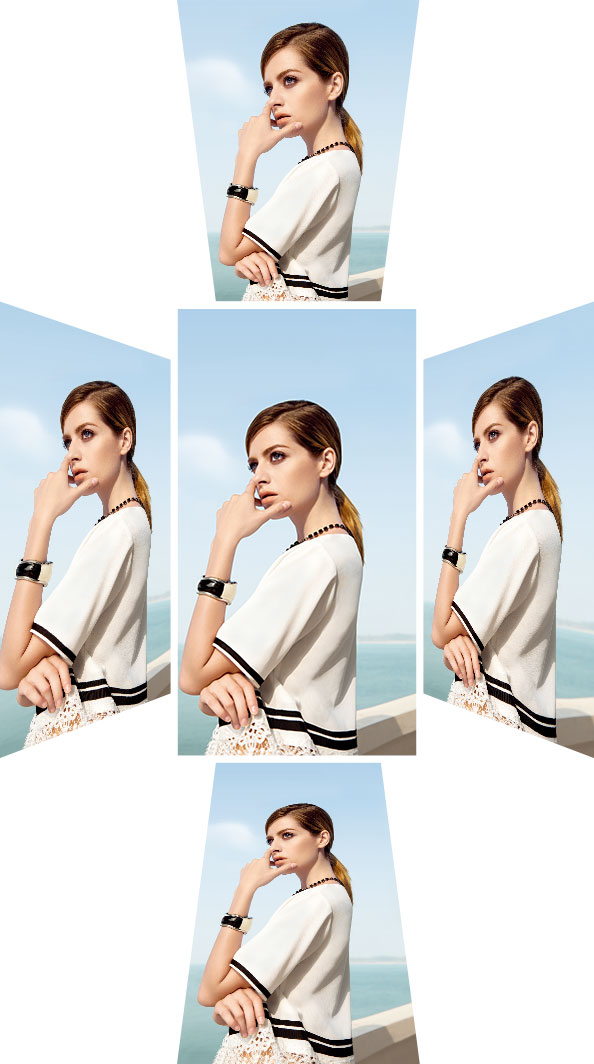

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
