FM Series

Front Maintenance High-end Outdoor Billboard

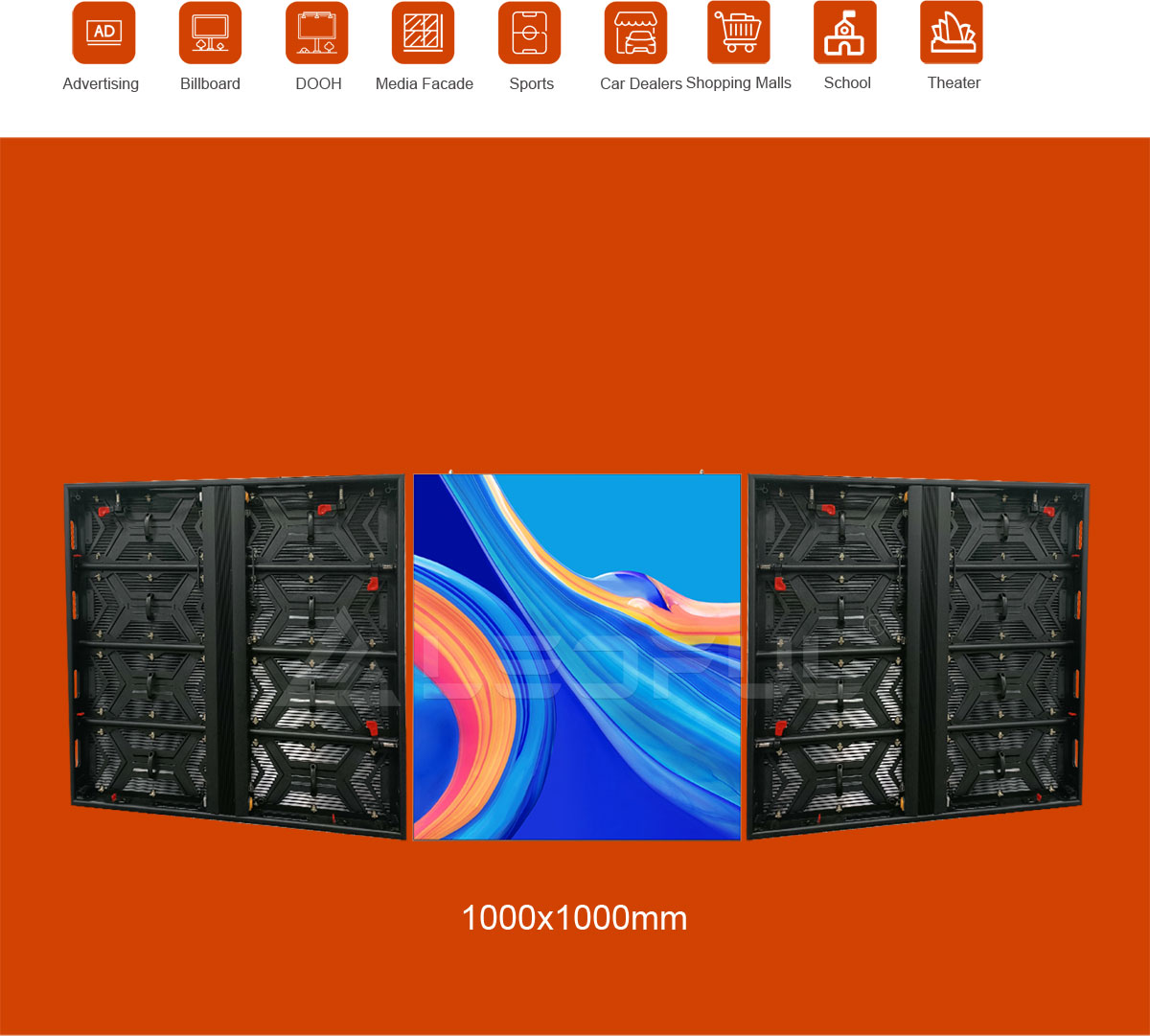

Applications
Applications
Specification
Model P3.91 P4.81 P6.25 P7.81 P10.416
Pixel pitch 3.91 4.81 6.25 7.81 10.416
SMD type SMD1921 SMD1921 SMD2727 SMD2727 SMD2727
Panel resolution(dots/sqm) 65536 43264 25600 16384 9216
Module resolution 128X64 104X52 80X40 64X32 48X24
Material of Panel Profiled aluminum Profiled aluminum Profiled aluminum Profiled aluminum Profiled aluminum
Module dimension 500X250 500X250 500X250 500X250 500X250
Panel size(mm) 1000x1000x83 1000x1000x83 1000x1000x83 1000x1000x83 1000x1000x83
Protective Grade IP68 IP68 IP68 IP68 IP68
Flatness(mm) ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.1
Maintenance mode Front & Rear Front & Rear Front & Rear Front & Rear Front & Rear
Weight of panel (kg/m2) 21.5 21.5 21.5 21.5 21.5
Brightness(nits) ≥5500 ≥5500 ≥5500 ≥5500 ≥5500
Color temperature(K) 8000-10000 optional 8000-10000 optional 8000-10000 optional 8000-10000 optional 8000-10000 optional
Viewing angle(V/H) 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160° 160°/ 160°
Contrast ratio 4000：1 4000：1 4000：1 4000：1 4000：1
Drive mode Constant current 1/16 scale Constant current 1/13 scale Constant current 1/8 scale Constant current 1/4 scale Constant current 1/2 scale
Refresh rate ≥1920 ≥1920 ≥1920 ≥1920 ≥1920
Max power consumption(W/m2) 600-800 600-800 600-800 600-800 600-800
Avg. power consumption(W/m²) 250 250 250 250 250

* Specifications and photos are subject to change without prior notice.

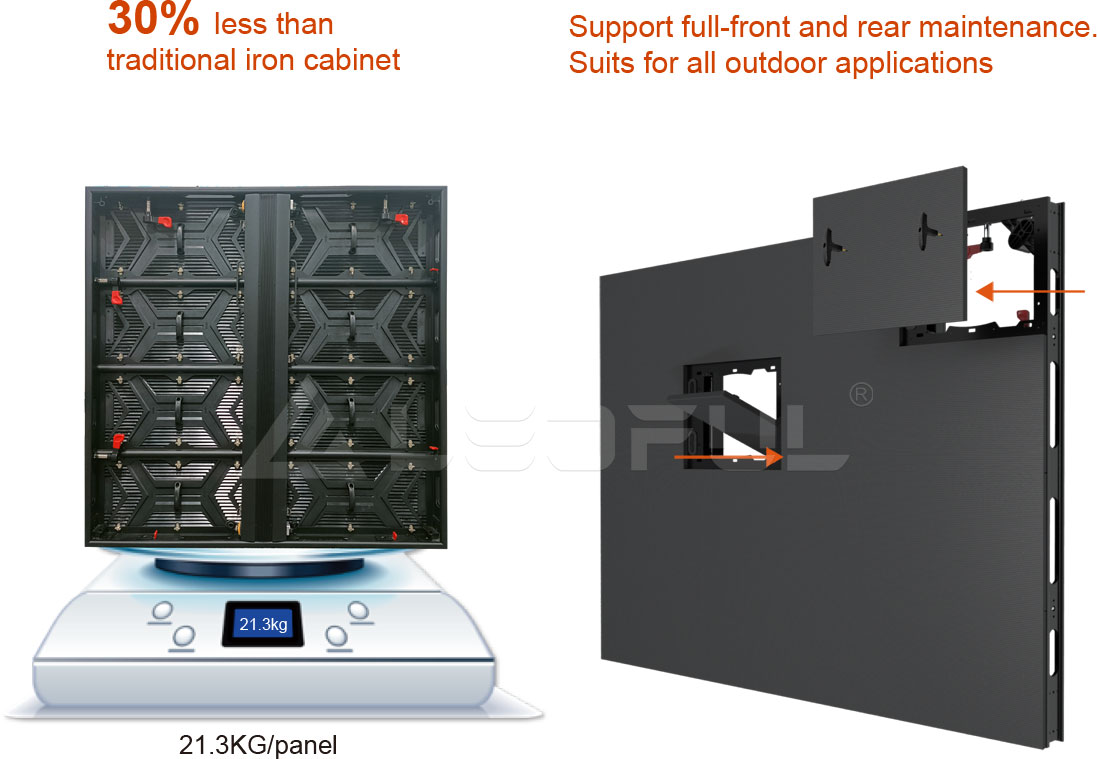

Specification

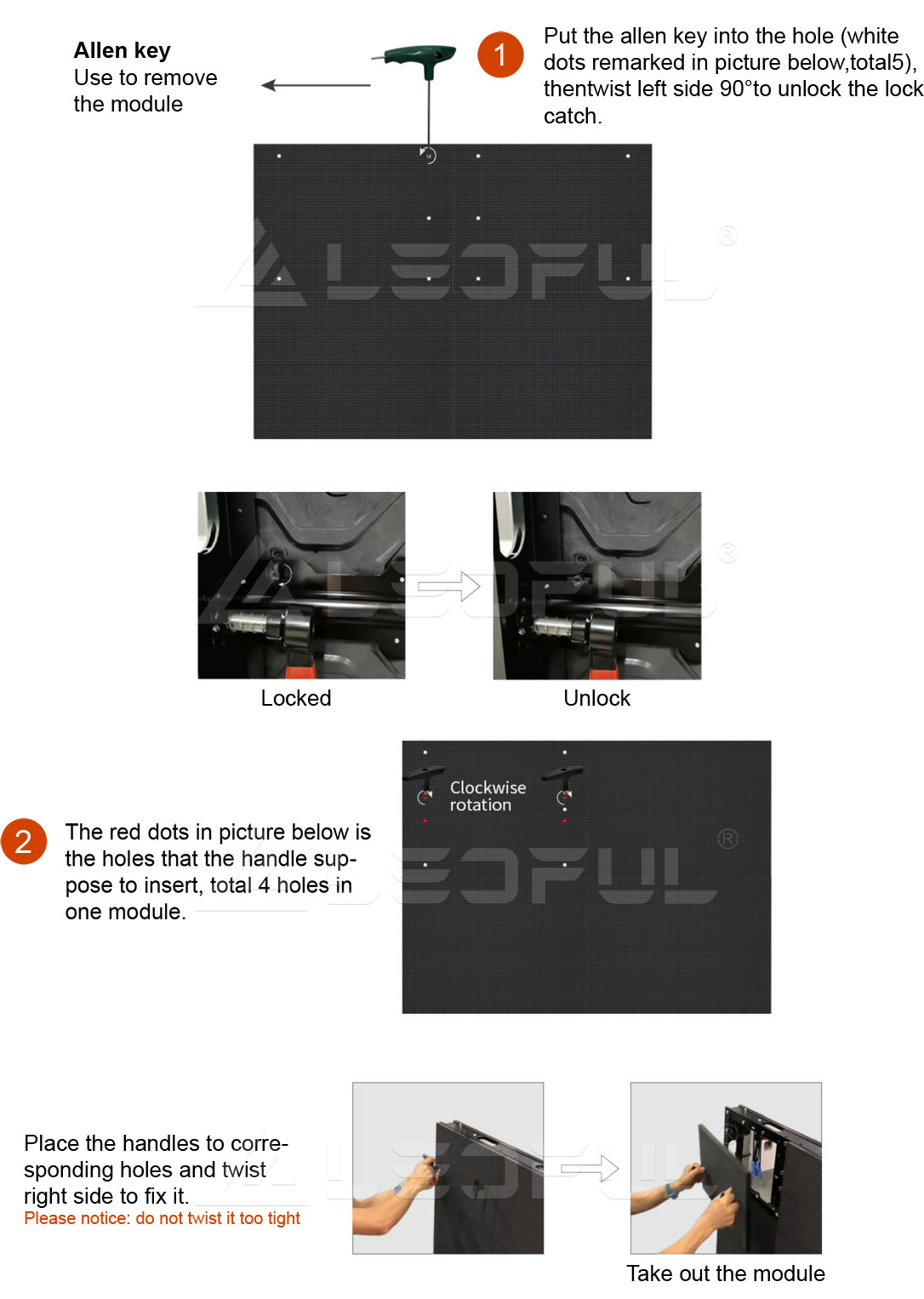

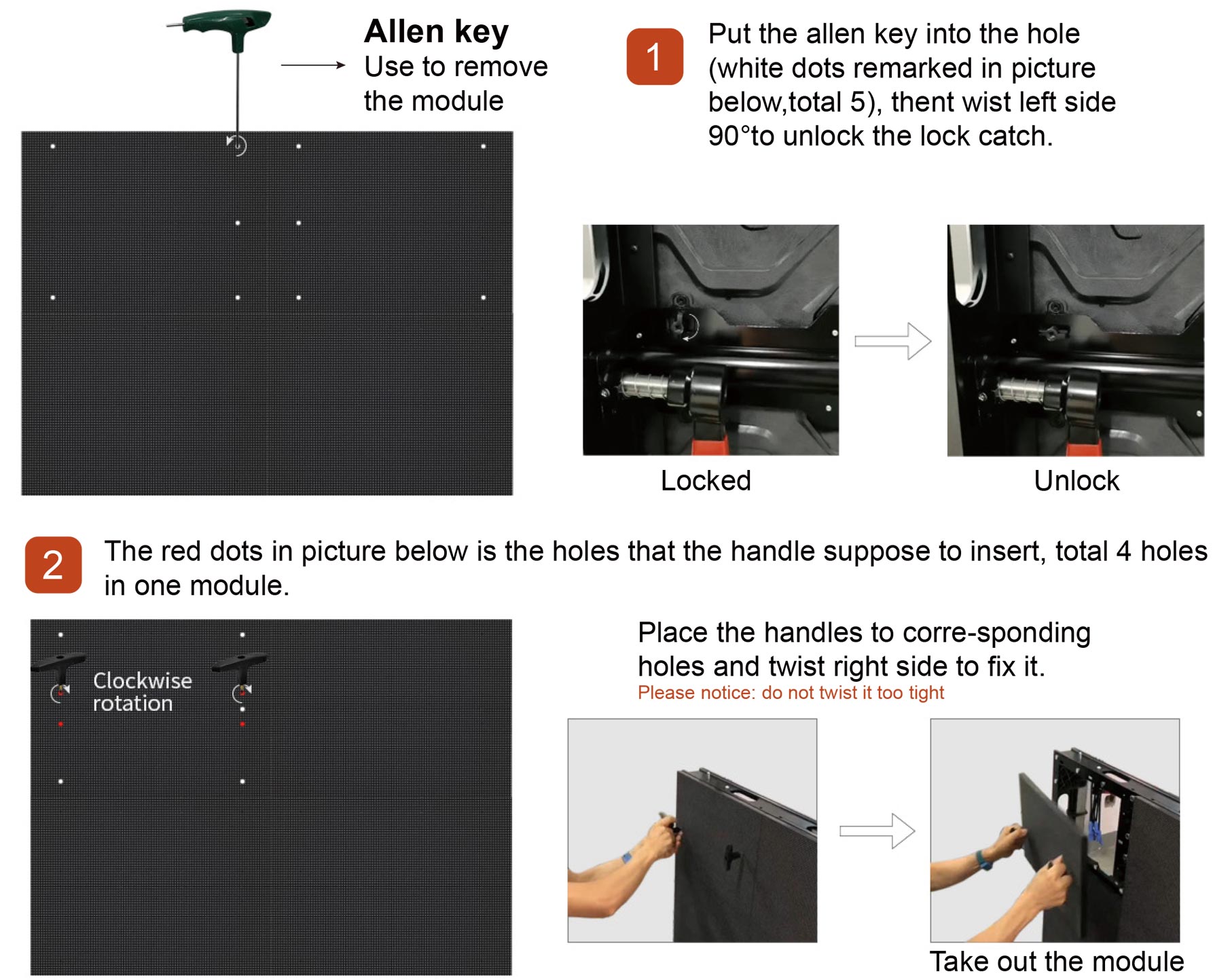

Front Maintenance Guide
Front Maintenance Guide

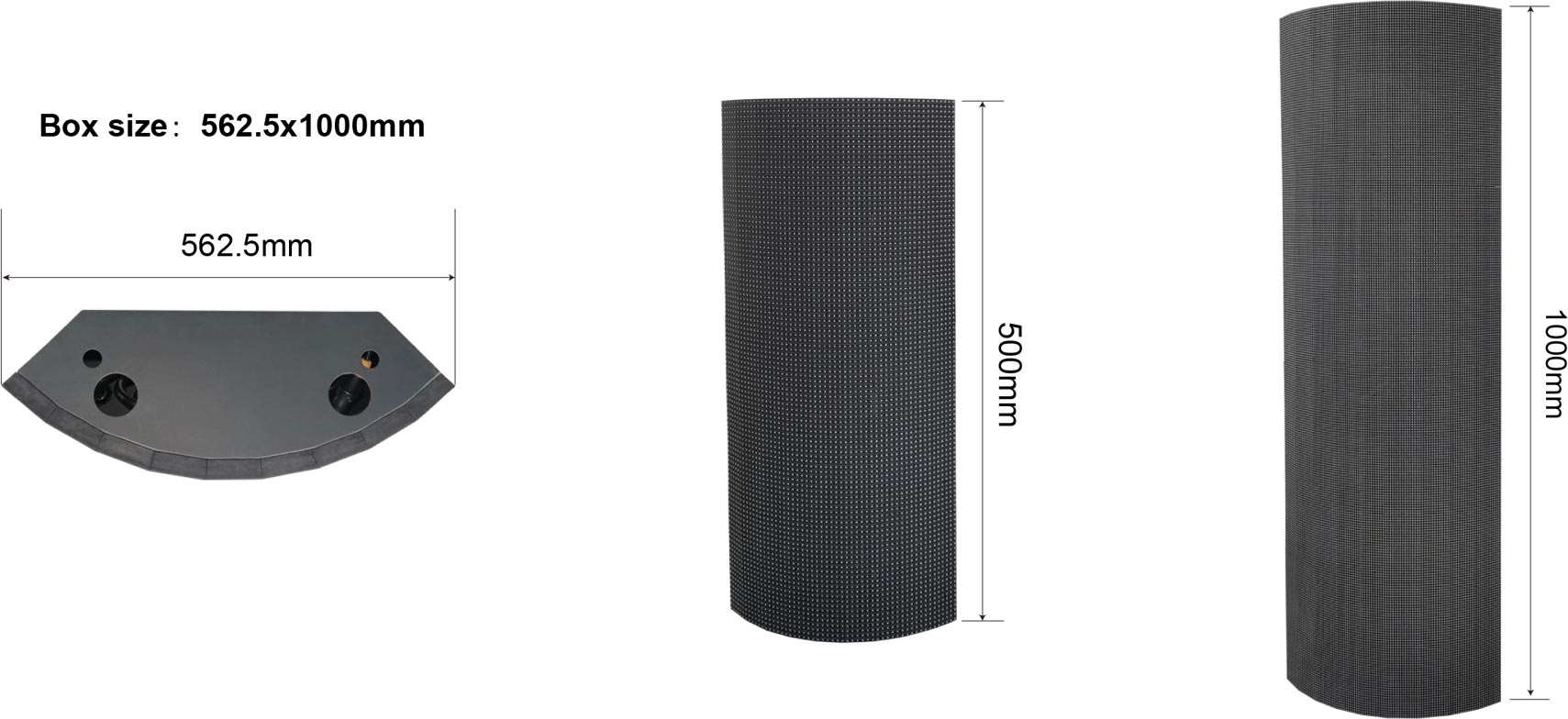

Seamless Corner Cabinet
Seamless Corner Cabinet

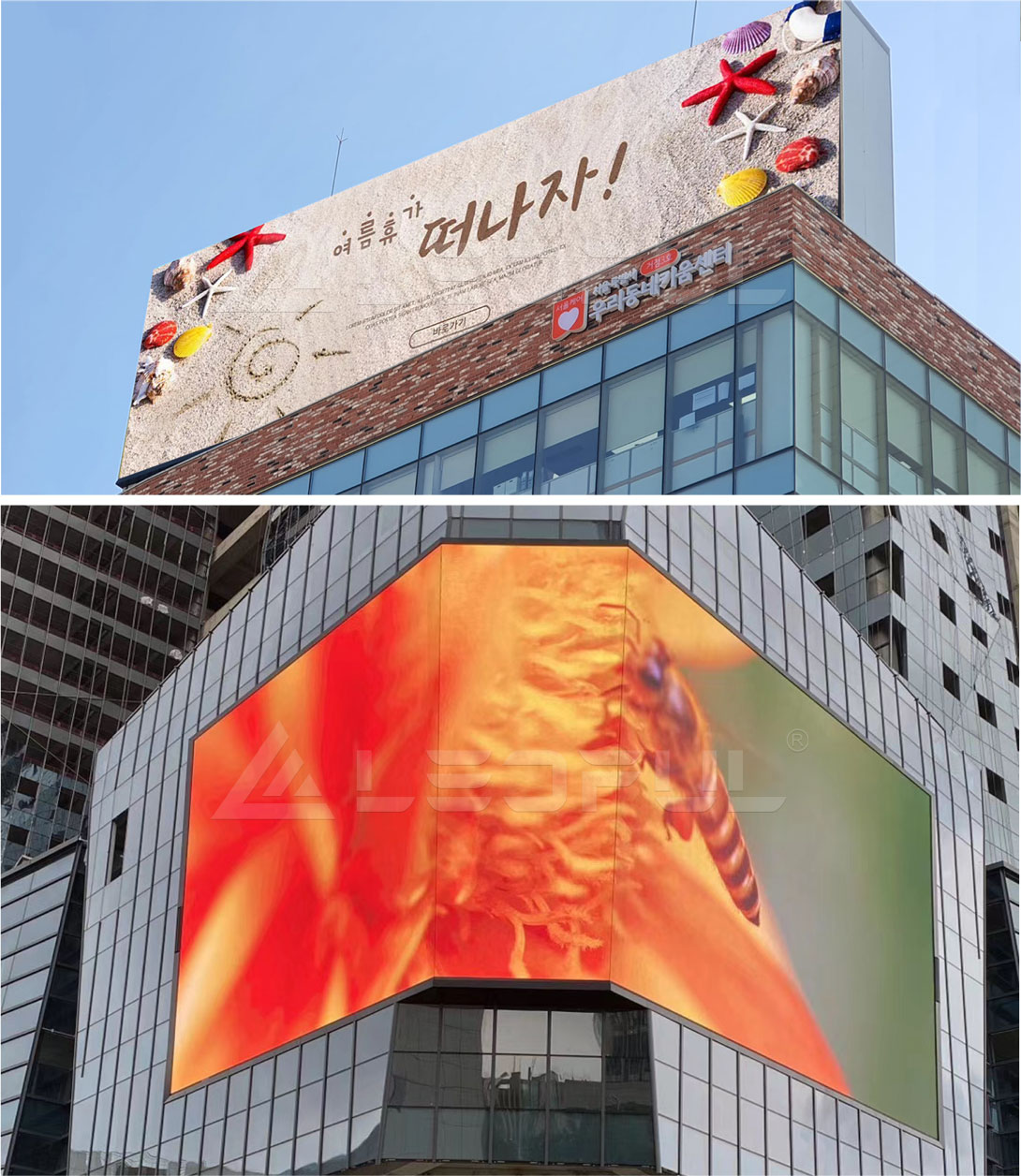

Typical Project
Typical Project
Features
Features
We Work With
We Work With
Related & Recommended LED Display Series
Related & Recommended Projects
*
*
*
*
