CL Series

Indoor Front Service Small Pixel Pitch Commercial LED display

Applications
Applications
Specification
Model CL1.5 CL1.6 CL1.8 CL2 CL2.5
Pixel Pitch (mm) 1.57 1.66 1.87 2 2.5
Pixel Matrix Per Sqm 405,695 360,000 284,444 250,000 160,000
Pixel Configuration SMD1212 SMD1212 SMD1515 SMD1515 SMD2121
Brightness (cd/m²) 1000 1000 1000 1000 1000
Scan 1/50 1/48 1/43 1/32 1/16
Module Dimension 240x120mm / 0.79x0.39ft 240x120mm / 0.79x0.39ft 240x240mm / 0.79x0.79ft 240x240mm / 0.79x0.79ft 240x240mm / 0.79x0.79ft
Cabinet Dimension 480x480mm / 1.57x1.57ft 480x480mm / 1.57x1.57ft 480x480mm / 1.57x1.57ft 480x480mm / 1.57x1.57ft 480x480mm / 1.57x1.57ft
Cabinet Resolution 306x306 289x289 257x257 240x240 192x192
Cabinet Material Die Casting Aluminum
Cabinet Weight 5KG
Power Con. (W/m²) (Max / Avg) 200W/100W
Service Access Front
Refresh Rate (HZ) ≥3840
Grey Scale (bit) 14
Viewing Angle (H/V) 160°/160°
IP Rate IP45
Operation Temperate -20℃ ~+80℃
Input Voltage (AC) 110V / 220V

* Specifications and photos are subject to change without prior notice.

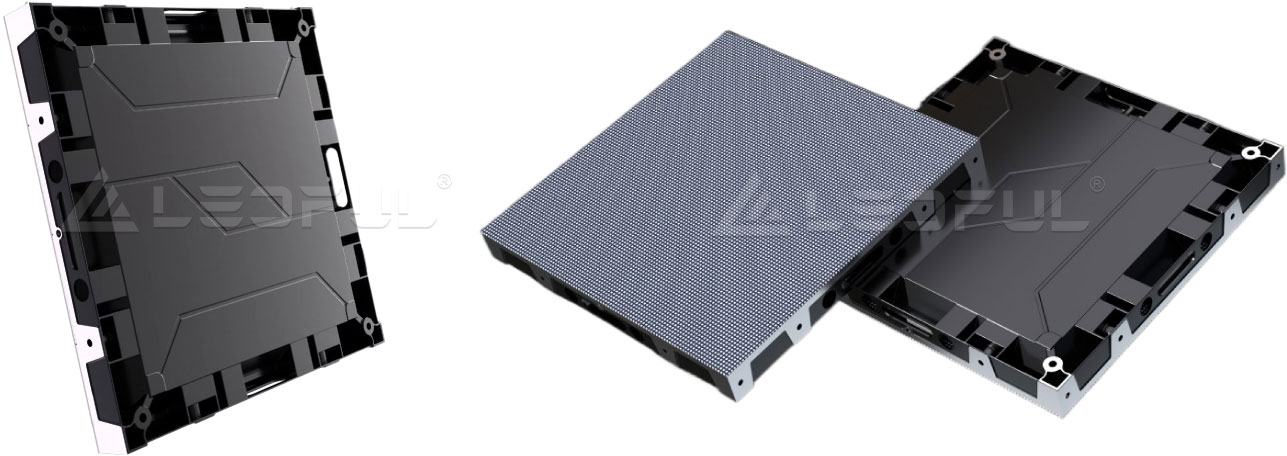

Black SMD LED makes screen perfect performance
Black SMD LED makes screen perfect performance

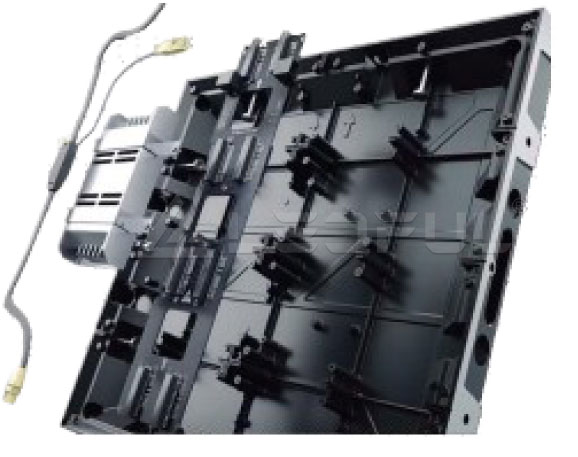

Full Front Maintenance & Front Installation
Full Front Maintenance & Front Installation

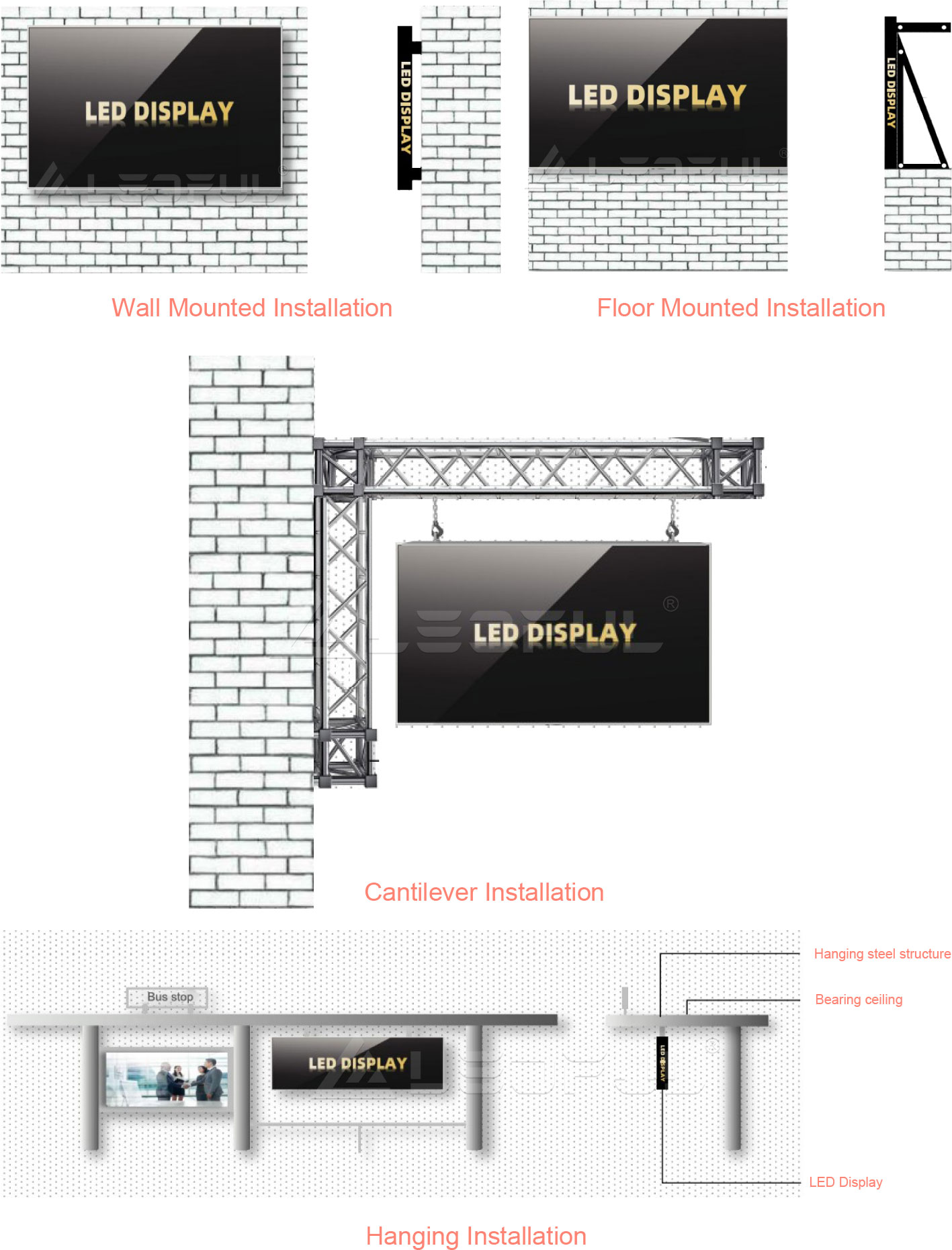

CL Series All Kinds of Installation Modes (Optional)
CL Series All Kinds of Installation Modes (Optional)

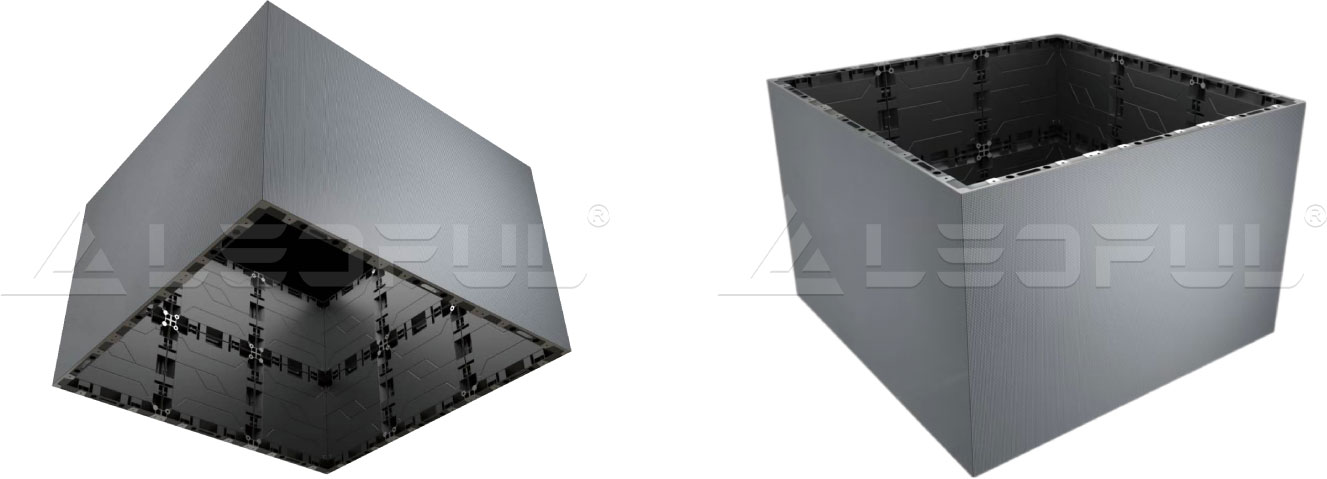

Square Tube LED Screen Design
Square Tube LED Screen Design

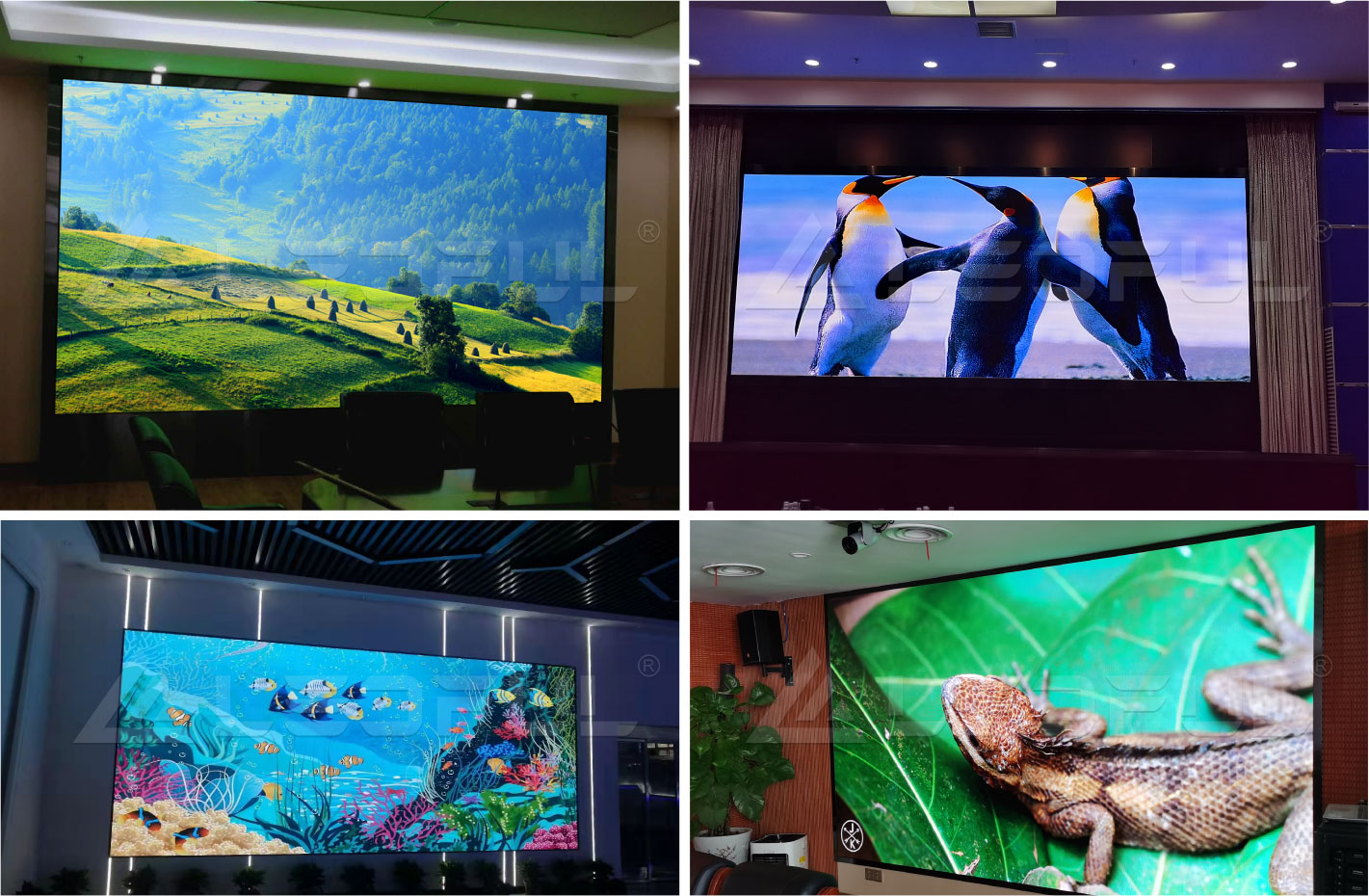

Typical Project
Typical Project
Features
Features
We Work With
We Work With
Related & Recommended LED Display Series

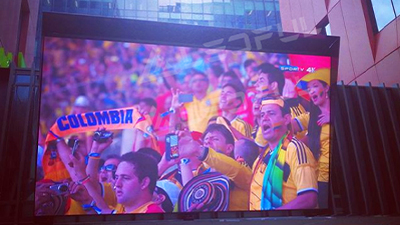

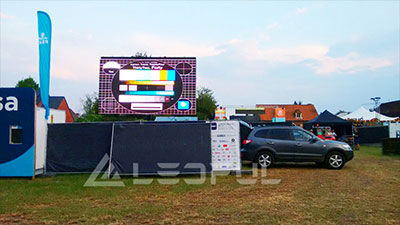

Related & Recommended Projects
*
*
*
*
